PC parts / Power supplies

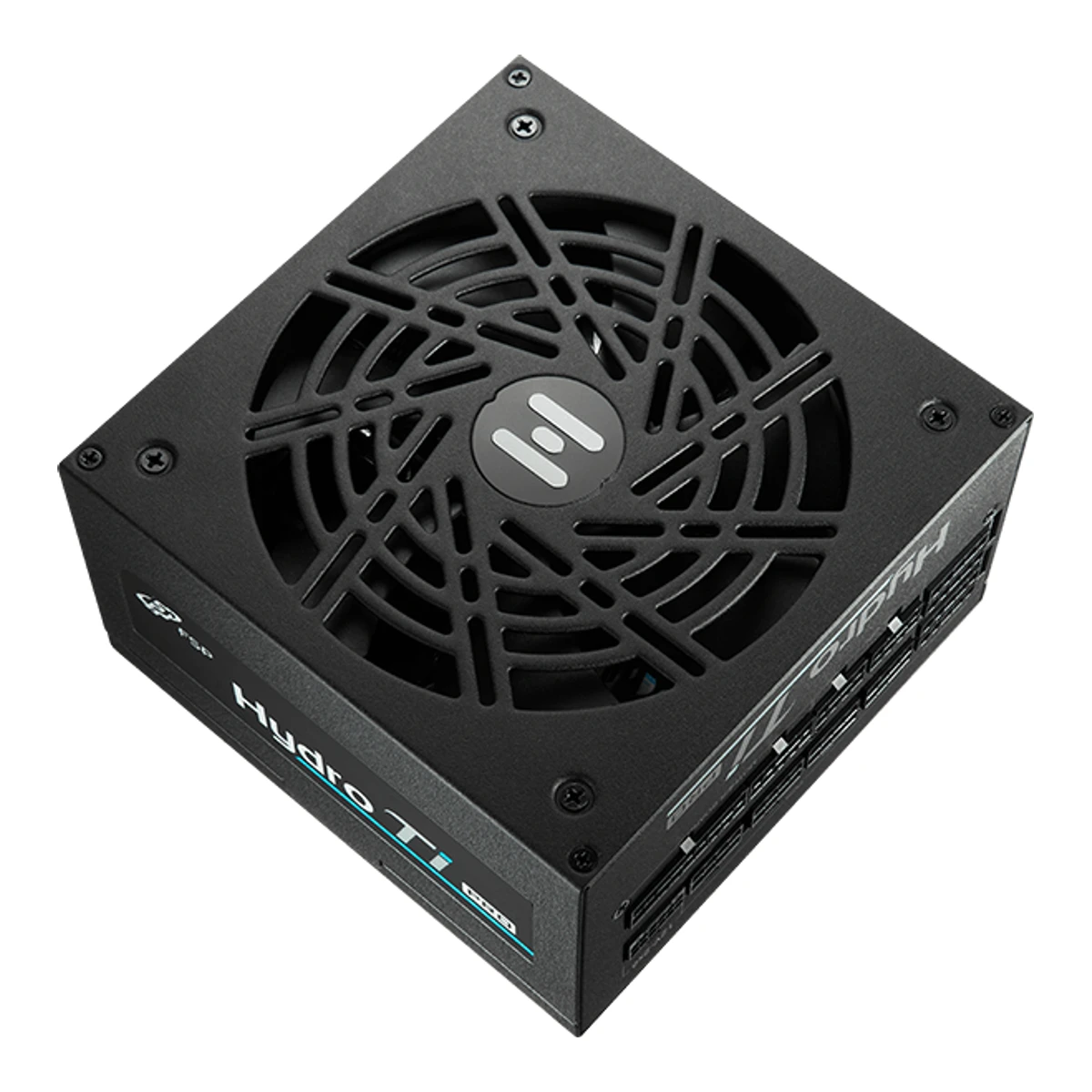

FSP Hydro Ti PRO 1000W (ATX 3.1)

FSPPower supply

Hydro Ti PRO 1000W (ATX 3.1)

Released November 2024.2Maker product pageweb.archive.org/web/20241220082548/https://www.fsplifestyle.com/en/product/HydroTiPRO1000W.htmlRead 15 October 2026Wayback captures of FSP's ATX 3.0 Hydro Ti PRO 1000W page. The capture of 2024-11-09 links no ATX 3.1 sibling. The capture of 2024-12-20 links the Hydro Ti PRO(ATX3.1) page, and its ATX 3.1 badge image on the FSP server is dated 2024-11-15. FSP's own page therefore went live in November or December 2024. A first Newegg listing on 2024-05-24 was suggested for this unit. Newegg pages are blocked and could not be opened, so that earlier date is not stored. Last checked 16 October 2026.

Power
1,000W
Efficiency
80 PLUS Titanium
Modular cables
Fully modular
ATX version
ATX 3.1

36 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

  • PCIe 8-pin connectors

    5

    Higher than 84% of other power supplies.

  • SATA power connectors

    12

    Higher than 84% of other power supplies.

All specs

SourceCalculated

General

Series
Hydro Ti PRO1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026The page is headed Hydro Ti PRO(ATX3.1) 1000W and sits in the FSP Hydro series. FSP keeps a separate page for the ATX 3.0 unit (Hydro Ti PRO 1000W, 12VHPWR cable), which is a different product.
Model numbers
HTI-1000M1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Model HTI-1000M, the same code as the ATX 3.0 page. Retailers append -GEN5 (HTI-1000M-GEN5) for both revisions: BuildCores prints Gen5 with part number PPA10A3800 for the ATX 3.0 unit, and the ATX 3.1 retailer listings seen in search results use it too. The suffix is kept as an alias only. The part number PPA10A3808 was suggested for this unit, but no page that could be opened shows it. Newegg pages are blocked and were not opened.
GTIN / EAN
Not available
Announced
Not available
Status
Available1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026The page is live on the FSP global site and an Amazon US listing for the ATX 3.1 unit is in stock (MaxMyBuild, 15 Oct 2026).
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026The product photos show a black unit and the feature list says black flat cables. The page offers no other colour.
Form factor
ATX1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications list the Form Factor row as ATX12V V3.1, which names the design guide. The unit is 150 x 150 x 86 mm with a 24-pin ATX connector, the standard ATX size at the back. The 80 PLUS certificate lists the type as ATX12V, EPS12V.
ATX version
ATX 3.11Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: complies with ATX12V V3.1 and EPS12V V2.92. Overview: complies with Intel Power Design Guide ATX 3.1.
PCIe CEM version
PCIe 5.11Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Overview: maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications.
Modular cables
Fully modular1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: fully modular cabling design.
Built by (OEM)
Not available

Power

Rated continuous power
1,000W1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Rated Output Power 1000W.
Full power rated up to
Not available
12V rail design
Single rail1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: +12V single-rail design.
+12V max current
83.33A1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026DC Output table: +12V max output current 83.33A.
+12V max power
1,000W1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026DC Output table: max combined power 1000W for +12V.
+3.3V and +5V combined power
120W1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026DC Output table: +3.3V 20A and +5V 20A with one combined power cell of 120W for both.
+5V standby current
3A1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026DC Output table: +5Vsb 3A. The -12V and +5Vsb share one combined power cell of 18.6W.
AC input voltage
Lowest100Highest240V1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026AC Input: 100-240Vac 13-6A 50-60Hz, not for China and Korea. A second row, 200-240Vac 6A, is only for China and Korea and is not stored.
Alternative low power mode (ALPM)
Not available

Certifications

80 PLUS rating
80 PLUS Titanium1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: 80 PLUS Certification Titanium, efficiency 94% or more at typical load. The 80 PLUS list agrees.3Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/FSP%20TECHNOLOGY%20INC._HTI-1000M_1000W_SOCE%206838_Report.pdfRead 15 October 202680 PLUS ID 6838, model HTI-1000M, 1000W, type ATX12V, EPS12V, test date 2022-06-29: Titanium at 115V, typical efficiency 94.28% at 50% load, rated input 100-240V 13-6A. The model code matches the FSP page. The certificate prints no serial number (N/A) and predates the ATX 3.1 page. It is the only HTI-1000M entry.
Cybenetics efficiency at 115V
Cybenetics Titanium1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Cybenetics Certification Titanium, with no input voltage. The only Cybenetics report for an FSP Hydro Ti Pro 1000W is the ATX 3.0 unit (report 2101, December 19, 2022), which shows ETA Titanium at both voltages. No report exists for the ATX 3.1 unit.
Cybenetics efficiency at 230V
Cybenetics Titanium1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Cybenetics Certification Titanium, with no input voltage. See the 115V note. Report 2101 shows Titanium at 230V too.
Cybenetics noise at 115V
A++1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Cybeneitcs Lambda A++ (sic), with no input voltage. The overview says Hydro Ti PRO(12V-2x6) 1000W got the A++ noise rating. Report 2101 for the ATX 3.0 unit shows A++ at both voltages.
Cybenetics noise at 230V
A++1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Same as the 115V note. Report 2101 shows A++ at 230V too.

Measured

We could not find any of these 10 fields. Show them
Average efficiency at 115V (measured)
Not available
Average efficiency at 230V (measured)
Not available
Light-load efficiency at 115V (measured)
Not available
Average power factor at 115V (measured)
Not available
Average noise at 115V (measured)
Not available
Noise at full load at 115V (measured)
Not available
Standby power with no load at 115V (measured)
Not available
Hold-up time (measured)
Not available
12V ripple at full load (measured)
Not available
12V load regulation (measured)
Not available

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)
ATX 24-pin (20+4)11600
CPU 8-pin (EPS, 4+4)22700
PCIe 8-pin (6+2)54650
12V-2x611700
SATA power124500
4-pin Molex42500
Source1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Cables table: MB 20+4 pin 1, CPU 4+4 pin 2, PCIe 12V-2x6 1, PCIe 6+2 pin 5, SATA 12, Molex 4. The Cable Length drawings give the lengths and the cable layout: 24-pin 600 mm, CPU 700 mm (x2), PCIe 6+2 pin 650 mm (three single-plug cables and one cable with a second plug 155 mm further on), 12V-2x6 700 mm, SATA 500 mm (two cables with four SATA plugs and two cables with two SATA and two Molex plugs each, labeled SATA / MOLEX x2). This reading gives the maker's totals of 12 SATA and 4 Molex plugs. All lengths are printed with a tolerance of 10 mm. The maker states no wire gauge or cable power rating.
CPU (EPS) connectors
2
PCIe 8-pin connectors
5
16-pin GPU connectors
1
SATA power connectors
12
4-pin Molex connectors
4
Cable style
Flat1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: black flat cables.

Fan

Fan size
135mm1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Fan Type FDB fan, 135mm.
Fan bearing
Fluid dynamic (FDB)1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: 135mm fluid dynamic bearing (FDB) fan.
Fan mode
Semi-passive1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Overview: under 50% loading the fan stays off (Zero RPM) when the eco semi-fanless fan control switch is on.
Fan mode switch
Yes1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: Eco semi-fanless fan control switch. The photo of the rear panel shows an ECO ON/OFF switch next to the AC inlet.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP)1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: complete protection OCP / OVP / OPP / SCP / OTP / UVP. The Specifications table lists OCP, OVP, OPP, SCP and OTP without UVP.
All-Japanese capacitors
Yes1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Feature list: 450V, 105 C Japanese bulk capacitors and Japanese electrolytic capacitors. The row names no exception.
MTBF (claimed)
Not available

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth150mm(5.9 × 3.4 × 5.9 in)1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Dimensions (L x W x H) 150 x 150 x 86 mm, so depth 150 mm, width 150 mm and height 86 mm.
Weight
Not available

In the box

We could not find any of these 1 fields. Show them
In the box
Not available

Warranty

Manufacturer warranty (source market)
10years1Maker product pagefsplifestyle.com/en/product/HydroTIPRO1000W_12V2X6.htmlRead 15 October 2026Specifications: Warranty 10 Years. The page is the global English site and names no country.
