PC parts / Power supplies

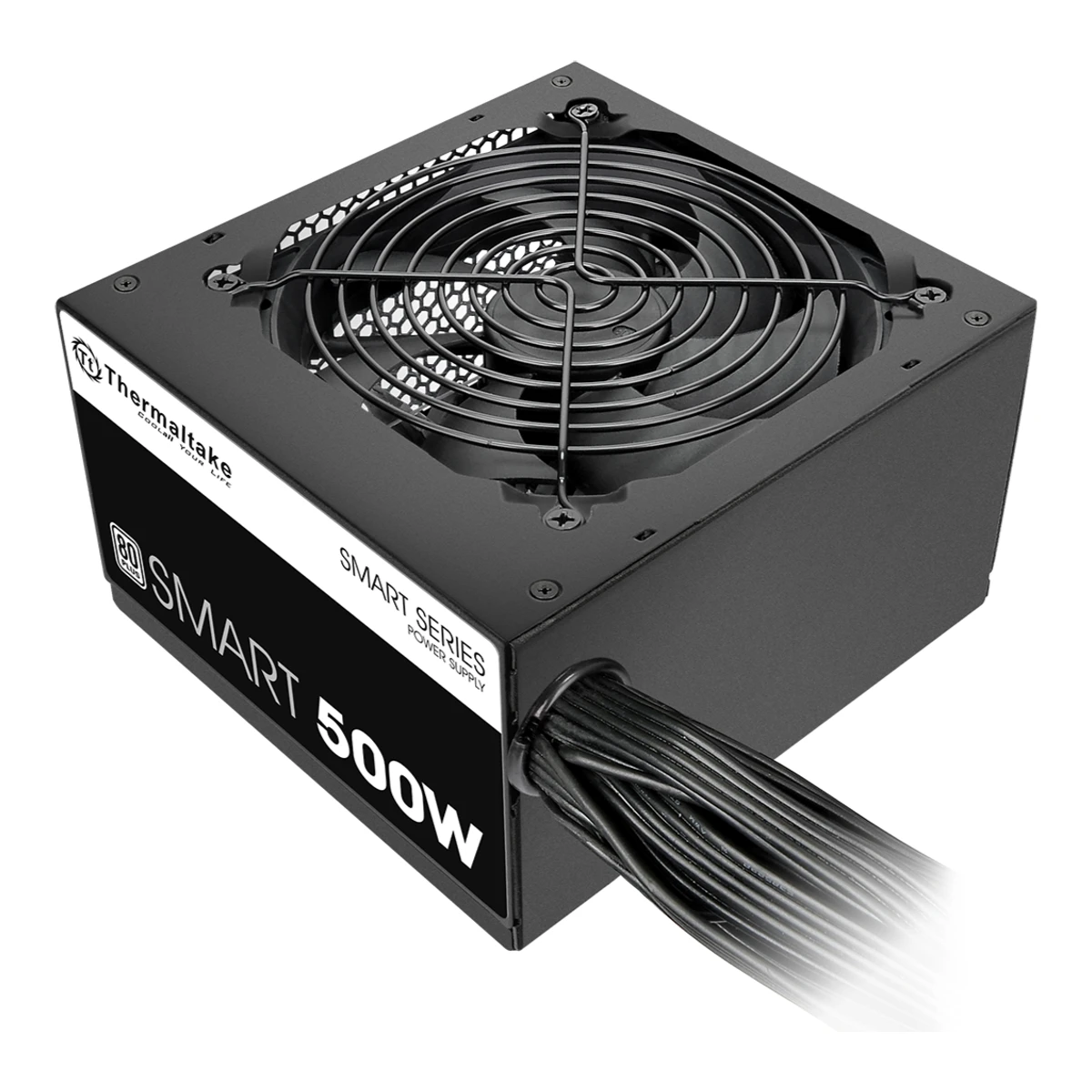

Thermaltake Smart 500W

ThermaltakePower supply

Smart 500W

Released July 2015.4Certification listclearesult.com/80plus/certified-psus/Thermaltake/SPD-0500P-SP-500AH2NKW-SMART-500W-115V-Internal-16460Read 14 October 2026The 80 PLUS certificate date of 07/23/2015 is the earliest dated evidence for the SP-500AH2NKW model. Last checked 14 October 2026.

Power
500W
Efficiency
80 PLUS White
Modular cables
None
ATX version
ATX 2.x

31 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Smart1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Page title: Smart SPD-0500P, 500W 80 PLUS Standard Certified APFC PSU. The page is Thermaltake USA.
Model numbers
PS-SPD-0500NPCWUS-W, PS-SPD-0500NPCW-W1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026SKU and P/N PS-SPD-0500NPCWUS-W. The global Thermaltake pages list PS-SPD-0500NPCW-W for the same Smart 500W without the US suffix.5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Item details: Model Number and Mfr Part Number PS-SPD-0500NPCWUS-W. The description text names P/N ps-spd-0500npcw-w and short model sp-500ah2nkw.
GTIN / EAN
841163062234, 7807466404175Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Item details: UPC 780746640417 and 841163062234, GTIN 00841163062234. Both codes have a valid check digit. BuildCores lists the same two codes. Which code is on which box is not known.6Spec databasebuildcores.com/products/PSU/zz1k9f9yv/Thermaltake-Smart-Certified-ATX-500W-Non-Modular-80%2BRead 14 October 2026BuildCores lists UPC 780746640417 and EAN 0841163062234 for part number PS-SPD-0500NPCWUS-W.
Announced
Not available
Status
Available5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Amazon US listing for PS-SPD-0500NPCWUS-W sold by Thermaltake USA Direct. 11,077 ratings and best sellers rank 4 in Computer Power Supplies in October 2026. The Thermaltake USA store shows it sold out.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Product Specifications: Color Black.
Form factor
ATX1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Product Specifications: Form Factor ATX.
ATX version
ATX 2.x1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Product Specifications: Type Intel ATX 12V 2.3. Amazon's listing adds EPS 12V 2.92.
PCIe CEM version
Not available
Modular cables
None5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Item details name the product Smart 500W ATX 12V APFC 80+ Non-modular. BuildCores also lists Non-Modular.6Spec databasebuildcores.com/products/PSU/zz1k9f9yv/Thermaltake-Smart-Certified-ATX-500W-Non-Modular-80%2BRead 14 October 2026Modularity Non-Modular.
Built by (OEM)
Not available

Power

Rated continuous power
500W1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Continuous Power 500W.
Full power rated up to
40°C5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Feature bullet: delivers 500 Watt continuous output at plus 40 degree. The maker manual gives an operating temperature of +5 C to +40 C.
12V rail design
Single rail1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Page text: Single +12V rail design.
+12V max current
41.67A2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Output Specification, 500W row: +12V max output current 41.67A. The US product page prints 58.3A for +12V, which does not fit its own 499.2W figure (58.3 A at 12 V is 700 W). The global Thermaltake page prints 35A and 420W for P/N PS-SPD-0500NPCW-W. The manual is stored, since it is the consistent set.
+12V max power
500W2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Output Specification, 500W row: +12V max output power 500W, continuous power 500W.
+3.3V and +5V combined power
105W2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Output Specification, 500W row: +3.3V 16A and +5V 16A with one 105W cell. The US product page prints 18A each and 100W.
+5V standby current
3A2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Output Specification, 500W row: +5VSB 3A, 15W. The US product page prints 2.5A and 12.5W.
AC input voltage
Lowest100Highest240V1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026AC input: Input Voltage 100 - 240Vac, Input Current 12A Max, Frequency 50 - 60Hz.2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026500W row: input voltage 100 - 240V, input current 10A - 5A, 50Hz / 60Hz. The US product page prints 12A max.
Alternative low power mode (ALPM)
Not available

Certifications

80 PLUS rating
80 PLUS White1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Page says 80 PLUS Standard Certified, which is the base 80 PLUS level. It also prints 82-86% efficiency at 20-100% load. The 80 PLUS list entry for this model code is Standard.4Certification listclearesult.com/80plus/certified-psus/Thermaltake/SPD-0500P-SP-500AH2NKW-SMART-500W-115V-Internal-16460Read 14 October 202680 PLUS entry for SPD-0500P SP-500AH2NKW SMART 500W, ATX12V, 500 W, 115V Internal, Standard, certified 07/23/2015. Amazon's listing for PS-SPD-0500NPCWUS-W names SP-500AH2NKW as the short model. A separate 2024 entry named SMART 500W (ID 7403) is Bronze and has no model code, so it is not matched to this unit.
Cybenetics efficiency at 115V
Not available
Cybenetics efficiency at 230V
Not available
Cybenetics noise at 115V
Not available
Cybenetics noise at 230V
Not available

Measured

We could not find any of these 10 fields. Show them
Average efficiency at 115V (measured)
Not available
Average efficiency at 230V (measured)
Not available
Light-load efficiency at 115V (measured)
Not available
Average power factor at 115V (measured)
Not available
Average noise at 115V (measured)
Not available
Noise at full load at 115V (measured)
Not available
Standby power with no load at 115V (measured)
Not available
Hold-up time (measured)
Not available
12V ripple at full load (measured)
Not available
12V load regulation (measured)
Not available

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)
ATX 24-pin (20+4)11600
CPU 8-pin (EPS, 4+4)11650
PCIe 8-pin (6+2)21500
SATA power41500
4-pin Molex41500
Source1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Connector table: 24-pin x1 on 1 cable at 600 mm, ATX 12V 4+4 pin x1 on 1 cable at 650 mm, PCIe 6+2 pin x2 on 1 cable (500 mm then 150 mm), SATA x4 on 1 cable (500 mm then 150 mm spacing), peripheral 4-pin x4 on 1 cable (500 mm then 150 mm spacing). The Thermaltake manual gives the same connector counts. Retailer listings such as BuildCores show 6 SATA, 3 Molex and 1 floppy, which the maker pages do not list. Wire gauge is not published.2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Power Connector Introduction, 500W row: main power 20+4 pin 1, ATX 12V 4+4 pin 1, PCI-E 6+2 pin 2, SATA 4, peripheral 4 pin 4.
CPU (EPS) connectors
1
PCIe 8-pin connectors
2
16-pin GPU connectors
0
SATA power connectors
4
4-pin Molex connectors
4
Cable style
Not available

Fan

Fan size
120mm1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Product Specifications: Cooling System 120mm Fan, 1800 RPM plus or minus 10%.
Fan bearing
Not available
Fan mode
Not available
Fan mode switch
Not available

Protection and parts

Protections
Over-voltage (OVP), Over-power (OPP), Short-circuit (SCP)2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Total Protection: over voltage protection with trip points per rail, over power protection at 120% to 150% of full load, and short circuit protection. The manual lists no OCP, OTP or UVP.5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Feature bullet: industry grade protections OPP, OVP and SCP.
All-Japanese capacitors
Not available
MTBF (claimed)
100,000h1Maker product pagethermaltakeusa.com/smart-500w.htmlRead 14 October 2026Product Specifications: MTBF 100,000 hrs minimum. The test temperature is not stated.2Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Environments: MTBF greater than 100,000 hours.5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Feature bullet: MTBF 100,000 hours.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Description text copied from Thermaltake: dimension (H x W x D) 86mm x 150mm x 140mm. The Amazon table shows 8.9 x 4 x 7 inches, which is the package size and is not stored.
Weight
Not available

In the box

In the box
SMART power supply unit, AC power cord, User manual, Mounting screw x 42Owner's manualfile.thermaltake.com/file/qig/SMART500.600.700W_US_manual.pdfRead 14 October 2026Components Check: SMART power supply unit, AC power cord, user manual, mounting screw x 4.

Warranty

Manufacturer warranty (source market)
5years3Maker product pagesupport.thermaltake.com/csWarranty.aspxRead 14 October 2026Warranty table: Power Supply, Smart Series, 5 years. The page lists series and not models and names no region for power supplies. Amazon's listing also says 5 years.5Retailer pageamazon.com/dp/B014W3EM2WRead 14 October 2026Item details: Warranty Description 5 years.

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Sources

We read 6 sources for this power supply. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 13 fields
  2. Read 14 October 2026Backs 10 fields
  3. Read 14 October 2026Backs 1 field
  4. Read 14 October 2026Backs 2 fields
  5. Read 14 October 2026Backs 9 fields
  6. Read 14 October 2026Backs 3 fields

See a wrong value? Tell us and name the field.
