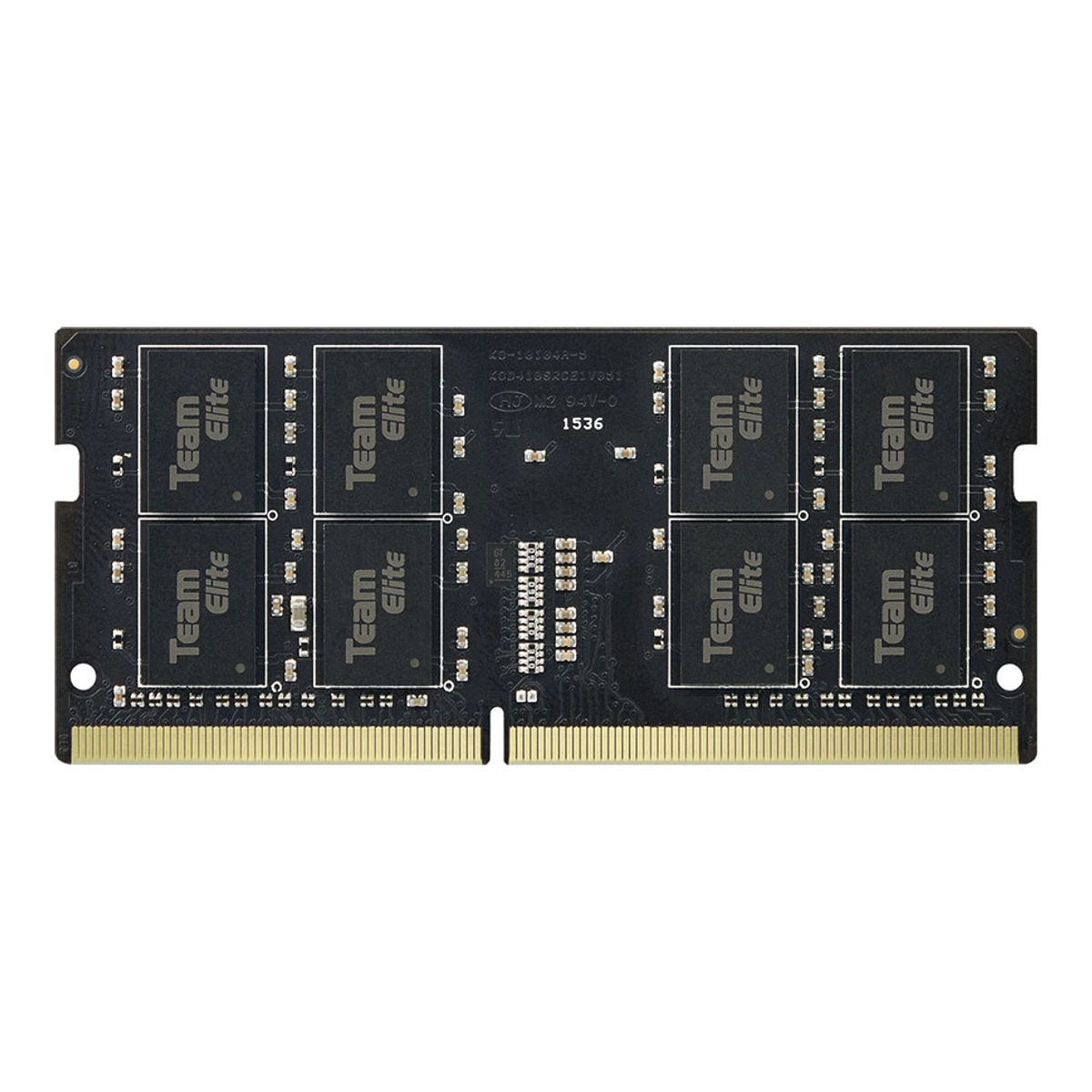

TeamGroup ELITE SO-DIMM DDR4

TeamGroupRAM kit

ELITE SO-DIMM DDR4

Released June 2016.3Maker product pageweb.archive.org/web/20180830231626/http://teamgroupinc.com:80/en/product/elite-so-dimm-ddr4Read 16 October 2026Earliest archived copy of TEAMGROUP's ELITE SO-DIMM DDR4 page, 2018-08-30. It lists 2133, 2400 and 2666 and the 4GB to 16GB single and kit sizes, with the feature text calling it an all new DRAM module compatible with X99 and Skylake. No launch date was found, so 2016-06 is an estimate from the Skylake era wording. The 3200 MT/s parts came later. Last checked 16 October 2026.

Memory type
DDR4
Speed
2,133, 2,400, 2,666, 3,200MT/s
Capacity
4, 8, 16, 32, 64GB
CL
15, 16, 19, 22

22 of 40 fields known.

Compare with another RAM kitDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
ELITE1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026The page title ELITE DDR4 LAPTOP MEMORY and the spec sheet name the ELITE range. The ELITE desktop DDR4 line and the ELITE SO-DIMM DDR5 line are separate products.
Model numbers
TED464G3200C22DC-S01, TED432G3200C22DC-S01, TED416G3200C22DC-S01, TED432G3200C22-S01, TED416G3200C22-S01, TED48G3200C22-S01, TED464G2666C19DC-S01, TED432G2666C19DC-S01, TED416G2666C19DC-S01, TED48G2666C19DC-S01, TED432G2666C19-S01, TED416G2666C19-S01, TED48G2666C19-S01, TED44G2666C19-S01, TED464G2400C16DC-S01, TED432G2400C16DC-S01, TED416G2400C16DC-S01, TED48G2400C16DC-S01, TED432G2400C16-S01, TED416G2400C16-S01, TED48G2400C16-S01, TED44G2400C16-S01, TED432G2133C15DC-S01, TED416G2133C15DC-S01, TED48G2133C15DC-S01, TED416G2133C15-S01, TED48G2133C15-S01, TED44G2133C15-S011Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026The specification table lists 28 TEAM P/N part numbers, the same 28 as the spec sheet: 14 single modules and 14 kits, at 2133, 2400, 2666 and 3200 MT/s.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026The ordering tables list 28 Team P/N: 14 single modules and 14 kits, the same list as the product page.
GTIN / EAN
765441651685, 765441630536, 765441631687, 765441642706, 7654416429354Retailer pageamazon.com/dp/B08T17RQ87Read 16 October 2026Item details: UPC 765441651685, Mfr Part Number or Model Number TED432G3200C22DC-S01. The Mfr Part Number row of this listing reads TED432G3200C22DC-S01.5Retailer pageamazon.com/dp/B01BU77LQWRead 16 October 2026Item details: UPC 765441630536, Mfr Part Number or Model Number TED416G2400C16DC-S01. The Mfr Part Number row prints the UPC as 0765441630536.6Retailer pageamazon.com/dp/B01HOM9WCIRead 16 October 2026Item details: UPC 765441631687, Mfr Part Number or Model Number TED416G2400C16-S01. The listing also prints GTIN 00765441631687.7Retailer pageamazon.com/dp/B07QMMZ79VRead 16 October 2026Item details: UPC 765441642935, Mfr Part Number or Model Number TED416G2666C19DC-S01.8Retailer pageamazon.com/dp/B07QMMZ9TWRead 16 October 2026Item details: UPC 765441642706, Mfr Part Number or Model Number TED416G2666C19-S01.
Announced
Not available
Status
Available1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026The page lists all 28 part numbers with a Where to Buy button and no discontinued mark on 2026-10-16. Amazon carries a listing of TED432G3200C22DC-S01 with 1,815 ratings.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Memory type
DDR41Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Module Type column: ELITE DDR4 LAPTOP MEMORY.
Module type
SO-DIMM1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Product name ELITE SO-DIMM DDR4 in the page address and the spec sheet. The sheet gives 260 pins and type NOTEBOOK.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Type NOTEBOOK, Module Type DDR4 260 Pin Non-ECC Unbuffered DIMM.

Kit

Kit capacity
4, 8, 16, 32, 64GB1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Capacity column: 4GB, 8GB, 16GB and 32GB single modules and 8GB(2x4GB), 16GB(2x8GB), 32GB(2x16GB) and 64GB(2x32GB) kits.
Modules per kit
1, 21Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Capacity column, for example 64GB(2x32GB) is two modules.
Capacity per module
4, 8, 16, 32GB1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Capacity column, for example 64GB(2x32GB) is 32GB modules.

Speed and timings

Rated speed
2,133, 2,400, 2,666, 3,200MT/s1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Frequency column: 2133MHz, 2400MHz, 2666MHz and 3200MHz. The page uses MHz for the data rate, with PC4-17000, PC4-19200, PC4-21300 and PC4-25600 as the bandwidth. The speeds are stored as MT/s.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Frequency 2133MHz, 2400MHz, 2666MHz and 3200MHz, with PC4 17000, 19200, 21300 and 25600.
CAS latency (CL)
15, 16, 19, 221Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Latency column: CL15 at 2133, CL16 at 2400, CL19 at 2666 and CL22 at 3200.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Latency CL15, CL16, CL19 and CL22 for the four speeds.
Timings
15-15-15-36, 16-16-16-39, 19-19-19-43, 22-22-22-522Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Latency CL15-15-15-36, CL16-16-16-39, CL19-19-19-43 and CL22-22-22-52. Stored as tCL-tRCD-tRP-tRAS per speed.
Voltage
1.2V1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026Voltage column: 1.2V on every row.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Voltage 1.2V. The ordering tables print CL and 1.2V per speed.
Overclocking profiles
Not available
Default speed (JEDEC)
Not available
Default CAS latency (JEDEC)
Not available
Default voltage (JEDEC)
Not available

Modules

Rank
Not available
DRAM chips
SK hynix9Reviewigeekphone.com/teamgroup-elite-16gb-ddr4-3200-so-dimm-review-stability-positive-performanceRead 16 October 2026Review of 3 October 2023 of a 32GB kit of two 16GB modules at DDR4-3200 CL22-22-22-52 and 1.2V. A Thaiphoon Burner screenshot is described as showing chips made by Hynix. The die is not named. The reviewer calls the kit TED416G3200C22-SBK, which is not on TEAMGROUP's list. It is stored on the TED432G3200C22DC-S01 row, the maker's 32GB (2x16GB) 3200 kit. Other part numbers may carry other chips.
ECC
No2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Module Type DDR4 260 Pin Non-ECC Unbuffered DIMM.
Heat spreader
No9Reviewigeekphone.com/teamgroup-elite-16gb-ddr4-3200-so-dimm-review-stability-positive-performanceRead 16 October 2026Review text: There is no heatsink as it's not required. The reviewer also states the black eight layer PCB and 67.6 x 30 mm size.
Module height
30mm1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026More Product Specifications: Dimensions 30(H) x 67.6(L)mm. The two numbers are standing height and length.3Maker product pageweb.archive.org/web/20180830231626/http://teamgroupinc.com:80/en/product/elite-so-dimm-ddr4Read 16 October 2026Product Dimensions 67.6 x 30 mm, the same as the current page.

Lighting and software

RGB lighting
No1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026The page describes no lighting and the product photos show a bare black board with no light bar.
Lighting sync
Not available
Software
Not available

Measured

AIDA64 memory test (measured)
Part numberCPUSpeed (MT/s)TimingsRead (MB/s)Write (MB/s)Copy (MB/s)Latency (ns)
TED416G3200C22-SBKIntel Core i7-12700H3,20022-22-22-5246,69245,72144,07293.9
Source9Reviewigeekphone.com/teamgroup-elite-16gb-ddr4-3200-so-dimm-review-stability-positive-performanceRead 16 October 2026AIDA64 read 46692 MB/s, write 45721 MB/s, copy 44072 MB/s and latency 93.9 ns. Tested in an MSI Katana GF66 12UD laptop with an Intel Core i7-12700H on Windows 10 x64. The AIDA64 version, BIOS and memory channel mode are not stated. The reviewer compared it with the laptop's own Samsung DDR4-3200 kit. Results come from the AIDA64 memory test, so a laptop run is not comparable with desktop rows.
Overclock reached (measured)
Not available

Warranty

Manufacturer warranty (source market)
Not available
Lifetime warranty
Yes1Maker product pageteamgroupinc.com/en/product-detail/memory/laptop/elite-so-dimm-ddr4/elite-so-dimm-ddr4-TED432G3200C22DC-S01Read 16 October 2026More Product Specifications: Warranty Lifetime warranty.2Maker spec sheet (PDF)images.teamgroupinc.com/products/memory/so-dimm/ddr4/elite/spec-sheet/elite-en.pdfRead 16 October 2026Specifications: Warranty Lifetime warranty.

Compare with

Pick a RAM kit to see both side by side. Differences are marked yellow.

More RAM kit comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINKit capacityModules per kitCapacity per moduleRated speedCAS latency (CL)TimingsVoltageDRAM chips
TED464G3200C22DC-S01Not available64 GB232 GB3,200 MT/s2222-22-22-521.2 VNot available
TED432G3200C22DC-S0176544165168532 GB216 GB3,200 MT/s2222-22-22-521.2 VSK hynix
TED416G3200C22DC-S01Not available16 GB28 GB3,200 MT/s2222-22-22-521.2 VNot available
TED432G3200C22-S01Not available32 GB132 GB3,200 MT/s2222-22-22-521.2 VNot available
TED416G3200C22-S01Not available16 GB116 GB3,200 MT/s2222-22-22-521.2 VNot available
TED48G3200C22-S01Not available8 GB18 GB3,200 MT/s2222-22-22-521.2 VNot available
TED464G2666C19DC-S01Not available64 GB232 GB2,666 MT/s1919-19-19-431.2 VNot available
TED432G2666C19DC-S01Not available32 GB216 GB2,666 MT/s1919-19-19-431.2 VNot available
TED416G2666C19DC-S0176544164293516 GB28 GB2,666 MT/s1919-19-19-431.2 VNot available
TED48G2666C19DC-S01Not available8 GB24 GB2,666 MT/s1919-19-19-431.2 VNot available
TED432G2666C19-S01Not available32 GB132 GB2,666 MT/s1919-19-19-431.2 VNot available
TED416G2666C19-S0176544164270616 GB116 GB2,666 MT/s1919-19-19-431.2 VNot available
TED48G2666C19-S01Not available8 GB18 GB2,666 MT/s1919-19-19-431.2 VNot available
TED44G2666C19-S01Not available4 GB14 GB2,666 MT/s1919-19-19-431.2 VNot available
TED464G2400C16DC-S01Not available64 GB232 GB2,400 MT/s1616-16-16-391.2 VNot available
TED432G2400C16DC-S01Not available32 GB216 GB2,400 MT/s1616-16-16-391.2 VNot available
TED416G2400C16DC-S0176544163053616 GB28 GB2,400 MT/s1616-16-16-391.2 VNot available
TED48G2400C16DC-S01Not available8 GB24 GB2,400 MT/s1616-16-16-391.2 VNot available
TED432G2400C16-S01Not available32 GB132 GB2,400 MT/s1616-16-16-391.2 VNot available
TED416G2400C16-S0176544163168716 GB116 GB2,400 MT/s1616-16-16-391.2 VNot available
TED48G2400C16-S01Not available8 GB18 GB2,400 MT/s1616-16-16-391.2 VNot available
TED44G2400C16-S01Not available4 GB14 GB2,400 MT/s1616-16-16-391.2 VNot available
TED432G2133C15DC-S01Not available32 GB216 GB2,133 MT/s1515-15-15-361.2 VNot available
TED416G2133C15DC-S01Not available16 GB28 GB2,133 MT/s1515-15-15-361.2 VNot available
TED48G2133C15DC-S01Not available8 GB24 GB2,133 MT/s1515-15-15-361.2 VNot available
TED416G2133C15-S01Not available16 GB116 GB2,133 MT/s1515-15-15-361.2 VNot available
TED48G2133C15-S01Not available8 GB18 GB2,133 MT/s1515-15-15-361.2 VNot available
TED44G2133C15-S01Not available4 GB14 GB2,133 MT/s1515-15-15-361.2 VNot available
