PC parts / SSDs

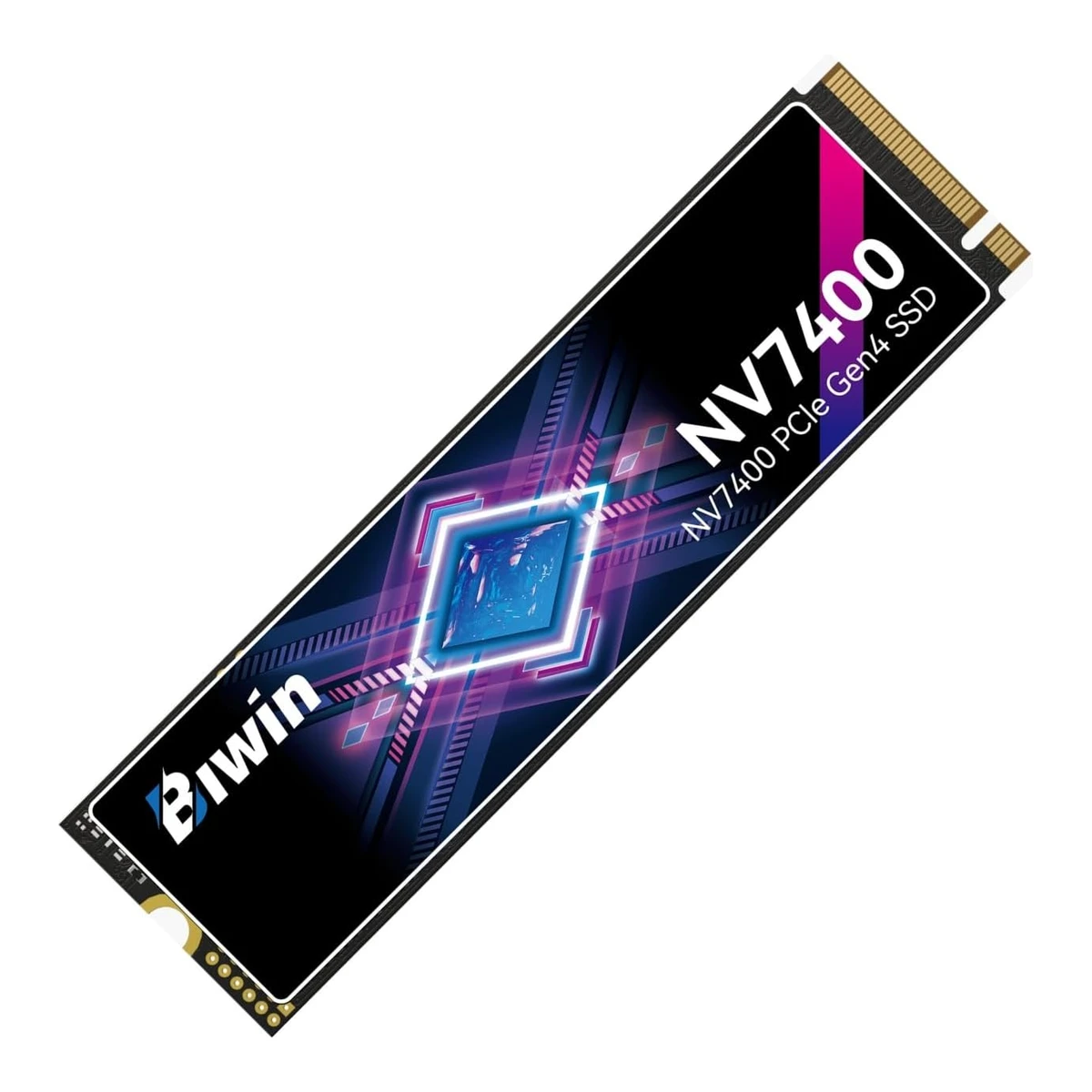

Biwin Black Opal NV7400

BiwinSSD

Black Opal NV7400

Released November 2024.4Maker product pageweb.archive.org/web/20241109193145/https://www.biwintech.com/product/nv7400-ssdRead 16 October 2026Earliest Internet Archive capture of the Biwin product page, 2024-11-09. It already shows the full spec table with 7,450 MB/s reads and a 2024 copyright line. The Biwin spec sheet was first published under wp-content/uploads/2024/10, which points to October 2024. The month is approximate Last checked 16 October 2026.

Interface
PCIe NVMe
Form factor
M.2 2280
Capacity
512 GB, 1 TB, 2 TB, 4 TB
Read speed
7,450MB/s

37 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
Black Opal1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Page lists the drive under Black Opal: Gaming
Model numbers
BNV7400512G-RGX, BNV740001TB-RGX, BNV740002TB-RGX9Retailer pageamazon.com/dp/B0DM23JKXCRead 16 October 2026Listing reads Built-In Media NV7400-2TB. The maker-style part number BNV740002TB-RGX is on the Amazon UK 2TB listing10Retailer pageamazon.com/dp/B0F7NRNH59Read 16 October 2026512GB listing reads Mfr Part Number BNV7400512G-RGX11Retailer pageamazon.co.uk/dp/B0DM1R7KHZRead 16 October 20261TB listing reads Model Name BNV740001TB-RGX12Retailer pageamazon.co.uk/dp/B0DM23JKXCRead 16 October 20262TB listing reads Model Name BNV740002TB-RGX
GTIN / EAN
887184019000, 887184019017, 887184019024, 8871840190319Retailer pageamazon.com/dp/B0DM23JKXCRead 16 October 20262TB listing, UPC 88718401902410Retailer pageamazon.com/dp/B0F7NRNH59Read 16 October 2026512GB listing, UPC 88718401900011Retailer pageamazon.co.uk/dp/B0DM1R7KHZRead 16 October 20261TB listing, UPC 88718401901713Retailer pageamazon.co.uk/dp/B0DM1R7KJ1Read 16 October 20264TB listing, UPC 887184019031. The listing's Model Name field reads V74000, which is cut off, so no 4TB model number is stored
Announced
Not available
Status
Available1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Page links Amazon US and Amazon UK listings. The Amazon US 2TB listing was in stock on 2026-10-169Retailer pageamazon.com/dp/B0DM23JKXCRead 16 October 2026Amazon US NV7400 2TB listing in stock on 2026-10-16, sold by BIWIN Tech
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
M.2 22801Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026
Capacity
512 GB, 1 TB, 2 TB, 4 TB1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026

Interface

Interface
PCIe NVMe1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026
PCIe generation
41Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026
PCIe lanes
41Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026
NVMe version
2.01Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026Interface row reads PCIe Gen4x4, NVMe 2.0
Detachable cable
Not available

Hardware

Controller
Maxio MAP1602A5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Spec table reads Maxio MAP1602 for all capacities. The text calls it a four-channel DRAM-less controller. TheSSDReview names the A revision, MAP1602A, which is stored to match other drives in the catalog7Reviewthessdreview.com/our-reviews/nvme/biwin-black-opal-4tb-nv7400-gen4-ssd-reviewRead 16 October 2026Review dated 2025-03-09: Maxiotek MAP1602A Falcon Lite, a four-channel Gen4 NVMe controller at 2400MT/s
Flash type
TLC1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Page reads high-quality 3D TLC NAND flash5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026
Flash memory
Micron B58R TLC5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Spec table reads Micron 232-Layer TLC (B58R). The packages are labelled BW29F4T08EMLCHQM, and the review says the 29 marks Micron or Intel IMFT flash7Reviewthessdreview.com/our-reviews/nvme/biwin-black-opal-4tb-nv7400-gen4-ssd-reviewRead 16 October 2026Four pieces of Micron 232-layer B58R 3D TLC. The review corrects its first report of YMTC flash, after Biwin said early samples used YMTC and the final product uses Micron
Flash layers
2325Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Spec table reads Micron 232-Layer TLC (B58R)7Reviewthessdreview.com/our-reviews/nvme/biwin-black-opal-4tb-nv7400-gen4-ssd-reviewRead 16 October 2026232-layer B58R
DRAM cache
None, uses host memory (HMB)1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Spec table reads DRAM-less. The text says the drive uses HMB (host memory buffer) with SRAM and Smart Cache, so HMB is stored2Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026DRAM Cache row reads DRAM-less. HMB comes from the product page5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Spec table lists DRAM as N/A (HMB) for all capacities
DRAM cache size
Not available
Component sides
Single-sided1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Dimensions row and text read standard M.2 2280 single-sided design2Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 20265Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Review: the NV7400 is a single-sided drive at all capacities

Performance

Sequential read (claimed)
7,450MB/s1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026Up to values, tested by BIWIN labs, host and tool not stated: 512GB 7,050 MB/s, 1TB 7,400, 2TB 7,450, 4TB 7,400. The base is the 2TB model
Sequential write (claimed)
6,500MB/s1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026512GB 4,200 MB/s, 1TB 6,500, 2TB 6,500, 4TB 6,500
Random 4K read (claimed)
1,000,000IOPS1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026512GB 800K IOPS, 1TB 1,000K, 2TB 1,000K, 4TB 900K. Queue depth is not stated
Random 4K write (claimed)
900,000IOPS1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026512GB 800K IOPS, 1TB 900K, 2TB 900K, 4TB 900K

Endurance and reliability

Endurance (TBW)
2,000TB1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026Warranty row: 5-Year / 500 TBW (512GB), 1000 TBW (1TB), 2000 TBW (2TB), 4000 TBW (4TB)
MTBF or MTTF (claimed)
1,500,000h1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026Published as MTBF, 1,500,000 hours, from internal Telcordia stress testing
Operating temperature
Min0Max70°C1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 20260 to 70 C. Storage range of -40 to 85 C is not stored

Power

Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
6.5W5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Review text: the label reads 3.3V/2.0A and this matches the highest power state, which is pegged at 6.50W. The maker does not publish a power figure. TheSSDReview also reads an active power maximum of 6.5 watts7Reviewthessdreview.com/our-reviews/nvme/biwin-black-opal-4tb-nv7400-gen4-ssd-reviewRead 16 October 2026Review text: active power maximum of 6.5 watts
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
339GB6Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-review/2Read 16 October 20262TB sample. Iometer sequential write for 15 minutes, 1MiB blocks, queue depth 32: 5.84 GB/s for 58 seconds, which the review calls a 339GB cache. Drive prefilled to 50 percent and tested as a secondary device. Intel Core i9-12900K on an Asus ROG Maximus Z790 Hero, Windows 11 Pro, active cooling unless noted
Write speed after the cache (measured)
2,600MB/s6Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-review/2Read 16 October 20262TB sample. Review text: after the cache the drive writes to TLC at around 2.6 GB/s, stored as 2600. The chart shows the line settle near 2,600 MB/s. The folding state below 900 MB/s and the 15 minute average of 1,344 MB/s are not stored
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
714mW6Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-review/2Read 16 October 20262TB sample, read from chart. Quarch PPM idle power with ASPM and LPM disabled, 714 mW

Cooling and build

Heatsink
Without heatsink1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Page names a graphene thermal pad and no heatsink. A separate NV7400 Heatsink model with RGB lighting appears only in a Chinese spec sheet from cn.biwintech.com and was not stored5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Review says the drive should operate fine without a heatsink and sees only a graphene label on the sample9Retailer pageamazon.com/dp/B0DM23JKXCRead 16 October 2026Listing bullet reads PMIC power management and graphite heat sink, and a 0.5mm graphene aluminium heat sink. The maker's page and both reviews show only a graphene thermal label on the drive and no heatsink, so bare is stored
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
Not available
Software
Biwin Intelligence1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Page offers the Biwin Intelligence download (Windows)5Reviewtomshardware.com/pc-components/ssds/biwin-black-opal-nv7400-2tb-ssd-reviewRead 16 October 2026Review names Biwin Intelligence as the drive's software

Compatibility

Platforms
PC (no OS named), PS51Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 2026Text reads broadly compatible with desktops, ultrabooks and gaming laptops, and says the drive can expand and upgrade PS5 storage. No operating system is named, so PC is stored. The maker lists the bare drive with a 0.5 mm graphene thermal pad (no heatsink) for the PS5

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length80Width22Height2.45mm(3.1 × 0.9 × 0.1 in)1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 202680.00 x 22.00 x 2.45 mm (single-sided), the same for all capacities
Weight
9g(0.3 oz)1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20262Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 2026Published as 9 g or less, so 9 is the stored maximum

In the box

In the box
SSD, Screw, Manual7Reviewthessdreview.com/our-reviews/nvme/biwin-black-opal-4tb-nv7400-gen4-ssd-reviewRead 16 October 2026Review says an installation screw and a screwdriver are in the package. The Amazon listings name a screw and a manual, so only those are stored11Retailer pageamazon.co.uk/dp/B0DM1R7KHZRead 16 October 2026Box Contents reads SSD, SSD Body, Screw, Manual. SSD Body repeats SSD, so SSD, Screw and Manual are stored
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years1Maker product pagebiwintech.com/product/nv7400-ssdRead 16 October 20265-year limited warranty, or until the TBW is reached, whichever comes first2Maker spec sheet (PDF)biwintech.com/wp-content/uploads/2025/06/Black-Opal-NV7400-Specifications-1.pdfRead 16 October 20263Owner's manualbiwintech.com/wp-content/uploads/2026/03/Biwin-PCIe-SSD-User-Manual_EN_CH_JP_ZH-TW_FR_DE.pdfRead 16 October 2026Warranty statement: the period ends at the earlier of the warranty term or the TBW threshold. The 5-year term comes from the spec sheet

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINCapacitySequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)Write cache size (measured)Write speed after the cache (measured)Idle power (measured)Heatsink
BNV7400512G-RGX887184019000512 GB7,050 MB/s4,200 MB/s800,000 IOPS800,000 IOPS500 TBNot availableNot availableNot availableNot availableNot availableNot availableNot availableWithout heatsink
BNV740001TB-RGX8871840190171 TB7,400 MB/s6,500 MB/s1,000,000 IOPS900,000 IOPS1,000 TBNot availableNot availableNot availableNot availableNot availableNot availableNot availableWithout heatsink
BNV740002TB-RGX8871840190242 TB7,450 MB/s6,500 MB/s1,000,000 IOPS900,000 IOPS2,000 TBNot availableNot availableNot availableNot available339 GB2,600 MB/s714 mWWithout heatsink
Not available8871840190314 TB7,400 MB/s6,500 MB/s900,000 IOPS900,000 IOPS4,000 TB7,126 MB/s6,394 MB/s94.72 MB/s373.6 MB/sNot availableNot availableNot availableWithout heatsink

Sources

We read 13 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 16 October 2026Backs 26 fields
  2. Read 16 October 2026Backs 20 fields
  3. Read 16 October 2026Backs 2 fields
  4. Read 16 October 2026Backs 1 field
  5. Read 16 October 2026Backs 9 fields
  6. Read 16 October 2026Backs 4 fields
  7. Read 16 October 2026Backs 6 fields
  8. Read 16 October 2026Backs 1 field
  9. Read 16 October 2026Backs 5 fields
  10. Read 16 October 2026Backs 3 fields
  11. Read 16 October 2026Backs 4 fields
  12. Read 16 October 2026Backs 2 fields
  13. Read 16 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
