PC parts / CPU coolers

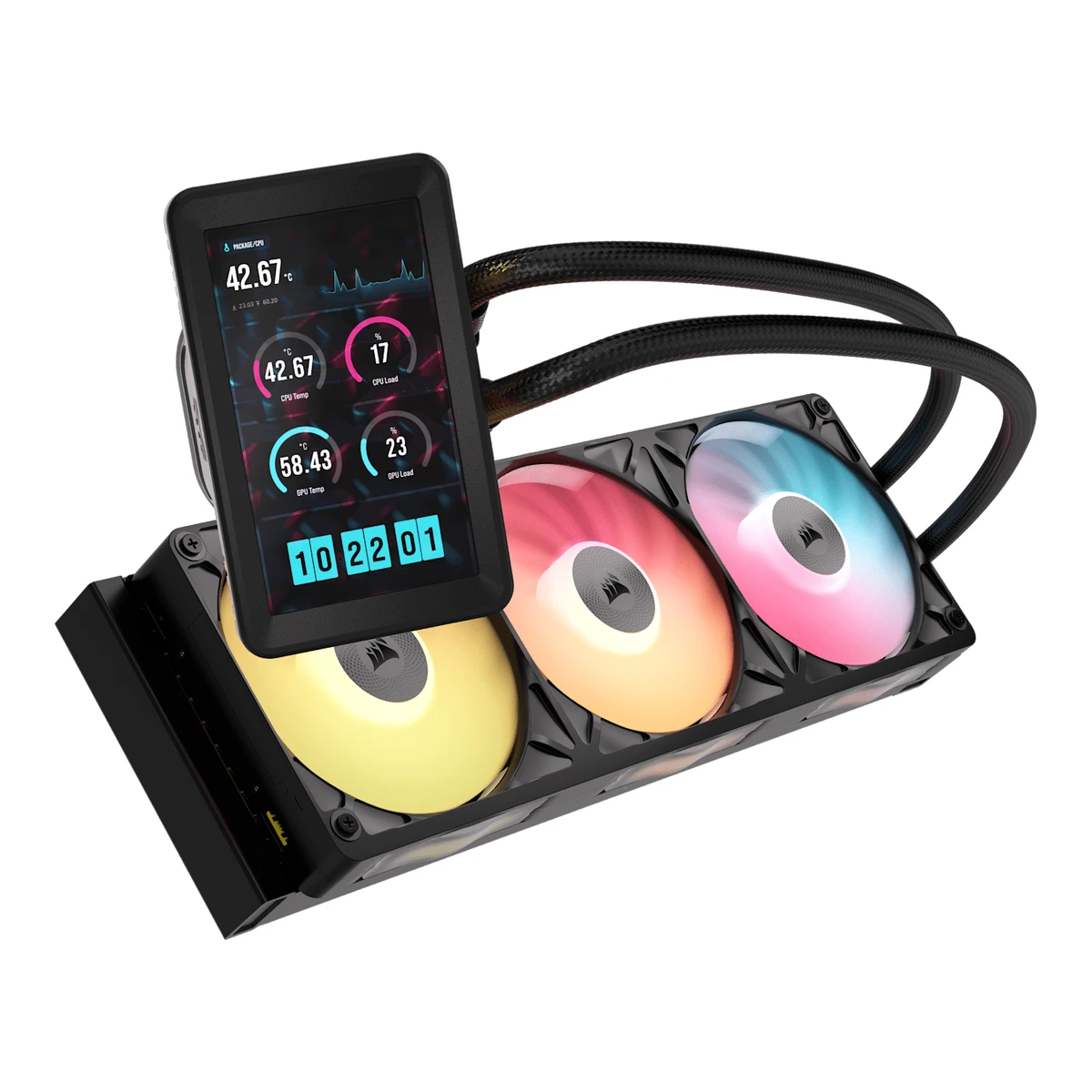

CORSAIR iCUE LINK TITAN II 360 RX LCD

CORSAIRCPU cooler

iCUE LINK TITAN II 360 RX LCD

Released August 2026.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Press release of August 25, 2026 announces the launch of the iCUE LINK TITAN II Series as the TITAN II RX LCD and TITAN II RX RGB. It says they are available through authorized retailers and the CORSAIR webstore, with availability varying by region and model. The corsair.com page was in stock on the access date. Last checked 16 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA1700

37 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
iCUE LINK TITAN II4Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 15 October 2026Corsair names the family iCUE LINK TITAN II.
Model numbers
CW-9061045-WW, CW-9061046-WW1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026The tech specs name CW-9061045-WW for the black cooler. The white one is CW-9061046-WW, which the page text pairs with CW-9061045-WW in its panel titles and the colour selector offers Black and White.
GTIN / EAN
0840440424758, 08404404247658Retailer pagescan.co.uk/products/corsair-icue-link-titan-ii-360-rx-lcd-cooler-black-1x-360mm-rx360-ii-fan-5-lcd-display-aluminium-copRead 15 October 2026Black CW-9061045-WW: GTIN 840440424758, stored as the 13 digit 0840440424758. AWD-IT lists the same EAN.9Retailer pagescan.co.uk/products/corsair-icue-link-titan-ii-360-rx-lcd-cooler-white-1x-360mm-rx360-ii-fan-5-lcd-display-aluminium-copRead 15 October 2026White CW-9061046-WW: EAN 0840440424765.
Announced
25 August 20265Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026MILPITAS, CA, August 25, 2026.
Status
Available1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026In Stock with a New badge on the access date. The price shown was $239.99.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Launched on August 25, 2026 and on sale.
Predecessor
Not available
Successor
Not available
Launch price (US)
$239.995Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Regional launch pricing table, TITAN II RX LCD, United States: $239.99. Corsair says prices are subject to change. US prices exclude tax.
Launch price (EU)
€229.95Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Table, TITAN II RX LCD, Europe: EUR 229,90. The release does not say whether VAT is included and names no country.
Markets
Not available
Colours
Black, White1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Colour selector: Black and White.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026The TITAN II Series coolers are available in Black or White.
Cooler type
AIO liquid1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: cold plate material copper. The page describes a redesigned convex cold plate and names no plating.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-rx-vs-titan-whats-newRead 15 October 2026The cold plate is a thinner copper cold plate with a convex shape.
Thermal paste
Pre-applied1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Pre-applied CORSAIR XTM70 thermal paste on the cold plate.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Pre-applied CORSAIR XTM70 thermal paste.

Compatibility

CPU sockets
AM5, AM4, LGA1954, LGA1851, LGA17001Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs list Intel 1851, Intel 1700, AMD AM5 and AMD AM4. LGA1954 comes from Corsair's TITAN II comparison article and from the Cybenetics report.2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026Installation steps cover AMD AM5 and AM4 and Intel LGA 1851 and 1700 with one Intel bracket set.4Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 15 October 2026Table last updated September 17, 2026, for the TITAN II 360 RX RGB: AM5, AM4 and Intel 1954, 1851 and 1700. The text says the TITAN II family adds support for LGA 1954. The box has only the LGA 1851 / 1700 mounting set, so no extra kit is listed for LGA1954. The LCD model is not in the table. The Cybenetics report lists LGA1954 for the Titan II 360 LCD.6Measurementcybenetics.com/evaluations/coolers/131Read 15 October 2026Technical specifications: Intel processors support LGA1954/1851/1700, AMD AM5 and AM4.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: radiator size 360mm, with the three-fan RX360 II unified frame.
Radiator dimensions
Length394Width120Thickness27mm(15.5 × 4.7 × 1.1 in)7Reviewprofesionalreview.com/2026/09/24/corsair-titan-ii-360-rx-lcd-reviewRead 15 October 2026Review of 2026-09-24: radiator 360 mm, 394 mm long, 120 mm wide, 27 mm thick. Scan lists 394 x 27 x 120 mm. Corsair's article for the RGB model gives 394 x 120 x 27 mm.8Retailer pagescan.co.uk/products/corsair-icue-link-titan-ii-360-rx-lcd-cooler-black-1x-360mm-rx360-ii-fan-5-lcd-display-aluminium-copRead 15 October 2026Radiator dimensions 394 x 27 x 120 mm (W x H x D).
Radiator material
Aluminium1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: radiator material aluminum.
Tube length
450mm1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: tubing length 450mm.
Max pump speed
3,025rpm6Measurementcybenetics.com/evaluations/coolers/131Read 15 October 2026Technical specifications of the report: Pump Speed 3025RPM. Corsair publishes no pump speed and the review pages read do not give one. The figure may be what the lab read on its sample, so it can sit slightly above a rated top.
Pump power connector
Proprietary hub or cable2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026The pump takes an iCUE LINK cable into the iCUE LINK System Hub. The hub gets power from a 6-pin PCIe cable and sends a tach signal to the CPU_FAN header. This is Corsair's own hub and cable system.
VRM fan
Yes3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-rx-vs-titan-whats-newRead 15 October 2026Table of the TITAN II LCD: VRM/M.2 cooling is a 70 mm fan. The press release says the VRM fan is part of the LCD module. Profesional Review measured it as an 80 mm fan from 600 to 3000 RPM, so the size is not stored.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026The LCD module also incorporates an integrated VRM fan that helps cool the motherboard components around the CPU socket.

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
iCUE LINK RX360 II RGB Unified Frame12034002,10064.73.5732.8Magnetic domeProprietary
Source1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: fan speed 400 - 2100 RPM +/-10%, fan airflow 14.1-64.7 CFM, static pressure 0.21 - 3.57 mm-H2O, noise 10 - 32.8 dBA. The top of each range is stored. The fan model name is the iCUE LINK RX360 II RGB unified frame named in the quick start guide. Corsair's fan table for the same RX II family lists the same airflow, pressure and noise for the single RX120 II and the three-fan RX360 II, so the figures are per fan. Magnetic Dome bearing is from the fan guide and the Titan II comparison article.2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026The fans are the iCUE LINK RX360 II RGB unified frame. Power rating 12 Vdc, maximum 1.39 A, typical 0.8 A.4Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 15 October 2026Both fan families use Magnetic Dome bearings.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 202652 RGB LEDs in the pump housing and RGB lighting on the fans (Corsair press release and Scan).5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 202652 individually addressable RGB LEDs in the pump housing.
Lighting standard
Proprietary2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026Lighting is set through iCUE LINK and iCUE software. No 3-pin or 5 V ARGB cable is in the box.4Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/corsair-titan-ii-vs-nautilus-ii-aios-whats-the-differenceRead 15 October 2026Every TITAN II component connects through iCUE LINK into the iCUE LINK System Hub, not through separate PWM and ARGB headers.
Built-in screen
LCD1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Overview: a 5 inch IPS LCD screen.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026A 5 inch IPS LCD panel.
Screen size
5in(12.7 cm)1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Overview: 5 inch IPS LCD screen.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-rx-vs-titan-whats-newRead 15 October 2026Table: screen size 5 inch.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 20265 inch IPS LCD panel.
Screen resolution
720 × 1280px1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Overview: 720x1280 native resolution, 500 cd/m2 brightness, 24-bit colour. Stored as width 720 and height 1280, as Corsair prints it.3Maker product pagecorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-rx-vs-titan-whats-newRead 15 October 2026Table: 720x1280 at 60 Hz, 500 cd/m2, 52 RGB LEDs, DisplayPort connection.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026Native 720x1280, 500 cd/m2, 24-bit colour, 60 Hz.
Software
Corsair iCUE1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Controlled with CORSAIR iCUE software.2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026Requires iCUE 5.37 or higher and System Hub firmware 3.11.646 or higher.
Needs a USB header
Yes2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026The hub's USB Type-C input connects with the included USB Type-C to USB 2.0 cable to a USB 2.0 header on the motherboard. The screen module also needs a DisplayPort connection to a GPU or motherboard output.

Measured

Cybenetics THETA, AMD AM5
Silver6Measurementcybenetics.com/evaluations/coolers/131Read 15 October 2026Report CRCLR00131 for the Corsair iCue Link Titan II 360 LCD, tested Sep 14 to Oct 2, 2026 with the Default mount. Corsair sells one TITAN II 360 LCD cooler, the TITAN II 360 RX LCD, and the report lists 360 mm, 27 mm radiator, 450 mm tubes and 2000 g. THETA Silver, AIO, AMD AM5, Ryzen 9 7900X, rated at 30 dB(A). Evaluated before Revision 2.0, so the level comes from results under Revision 1.8. The Intel LGA1851 row reads No THETA level and the report has no Intel test system and no Intel results, so no LGA1851 value is stored. The report does not say which colour it tested.
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
10,7266Measurementcybenetics.com/evaluations/coolers/131Read 15 October 202610,726 at 30 dB(A) on the AM5 platform. The 100% fan setting gives 10,800.
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
42.6dB(A)6Measurementcybenetics.com/evaluations/coolers/131Read 15 October 202642.6 dB(A) at the 100% fan setting (2130 rpm). Hemi-anechoic chamber with a 6 dB(A) noise floor, Bruel & Kjaer 2270 G4 analyser. The protocol keeps the AIO pump at full speed and does not separate its noise.
Thermal tests (measured)
Test CPULoadFan settingCPU temperature (°C)
AMD Ryzen 7 9800X3D24 hour stress test, stock settings (PPT 142 W in the setup list and 155 W in the result text)Balanced profile, about 1200 rpm81
AMD Ryzen 7 9800X3D24 hour stress test, ECO 105 W mode with a PPT limit of 125 WBalanced profile, about 1200 rpm77
AMD Ryzen 7 9800X3D24 hour stress test, ECO 65 W mode with a PPT limit of 83 WBalanced profile, about 1200 rpm55
Source7Reviewprofesionalreview.com/2026/09/24/corsair-titan-ii-360-rx-lcd-reviewRead 15 October 2026Profesional Review, Ryzen 7 9800X3D on an ASUS ROG X870E Crosshair Hero with an RTX 5080, Corsair HX1200i, room at 24 C, 24 hour stress test. Pump and fans on the balanced profile, with the fans at about 1200 rpm, and the thermal paste is not stated. The stock row reads 81 C average and peak. The ECO 105 W row reads 75 C average and 77 C peak. The ECO 65 W row reads 51 C average and 55 C peak. The peak is stored. The review prints a PPT of 142 W for stock in its setup list and 155 W in its text. Noise was measured at 50 cm in a room of 30 dBA. It is not stored here because the text gives only an upper bound of 32 dBA on the balanced profile and about 50 dBA at maximum speeds, with no per-row value.

Dimensions and weight

Dimensions
Not available
Heatsink dimensions
Not available
Weight
2,000g(4.4 lb)1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Tech specs: weight 2kg, stored as 2000 g. Cybenetics also lists 2000 g. Scan lists 1600 g, which is not followed.6Measurementcybenetics.com/evaluations/coolers/131Read 15 October 2026Technical specifications: weight 2000g.
Heatsink weight
Not available

In the box

In the box
1x Intel LGA 1851 / 1700 Mounting Bracket Set, 1x Intel LGA 1851 / 1700 Backplate, 1x AMD AM5 / AM4 Mounting Bracket Set ( Pre-installed ), 12x Long Fan Screws, 12x Radiator Screws, 1x iCUE LINK RX360 II RGB, 1x iCUE LINK System Hub, 2x Double-sided Adhesive Tape, 1x 500mm USB Type-C to USB 2.0 Cable, 1x 800mm Tach Cable, 1x 250mm iCUE LINK Cable With Dual 90° Connectors, 1x 600mm iCUE LINK Cable With Dual 90° Connectors, 1x 600mm iCUE LINK Cable With Straight / 90° Connectors, 1x iCUE LINK 5′′ LCD Screen Module, 1x PCIe Slot Cover2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026Included hardware of the quick start guide, copied as printed. It lists the LCD module and a PCIe slot cover that the RGB model does not have.

Warranty

Manufacturer warranty (source market)
6years1Maker product pagecorsair.com/us/en/p/cpu-coolers/cw-9061045-ww/icue-link-titan-ii-360-rx-lcd-aio-liquid-cpu-cooler-cw-9061045-wwRead 15 October 2026Six-year warranty banner. The page names no market.2Owner's manualcorsair.com/us/en/explorer/diy-builder/cpu-coolers/icue-link-titan-ii-360-rx-lcdRead 15 October 2026All CORSAIR iCUE LINK coolers have a 6-year warranty.5Press releasecorsair.com/newsroom/press-release/corsair-expands-the-icue-link-ecosystem-with-quieter-higher-performance-aios-and-fansRead 15 October 2026The TITAN II coolers carry a six-year warranty.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
CW-9061045-WW0840440424758Black
CW-9061046-WW0840440424765White

Sources

We read 9 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 20 fields
  2. Read 15 October 2026Backs 9 fields
  3. Read 15 October 2026Backs 4 fields
  4. Read 15 October 2026Backs 4 fields
  5. Read 15 October 2026Backs 13 fields
  6. Read 15 October 2026Backs 6 fields
  7. Read 15 October 2026Backs 2 fields
  8. Read 15 October 2026Backs 3 fields
  9. Read 15 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
