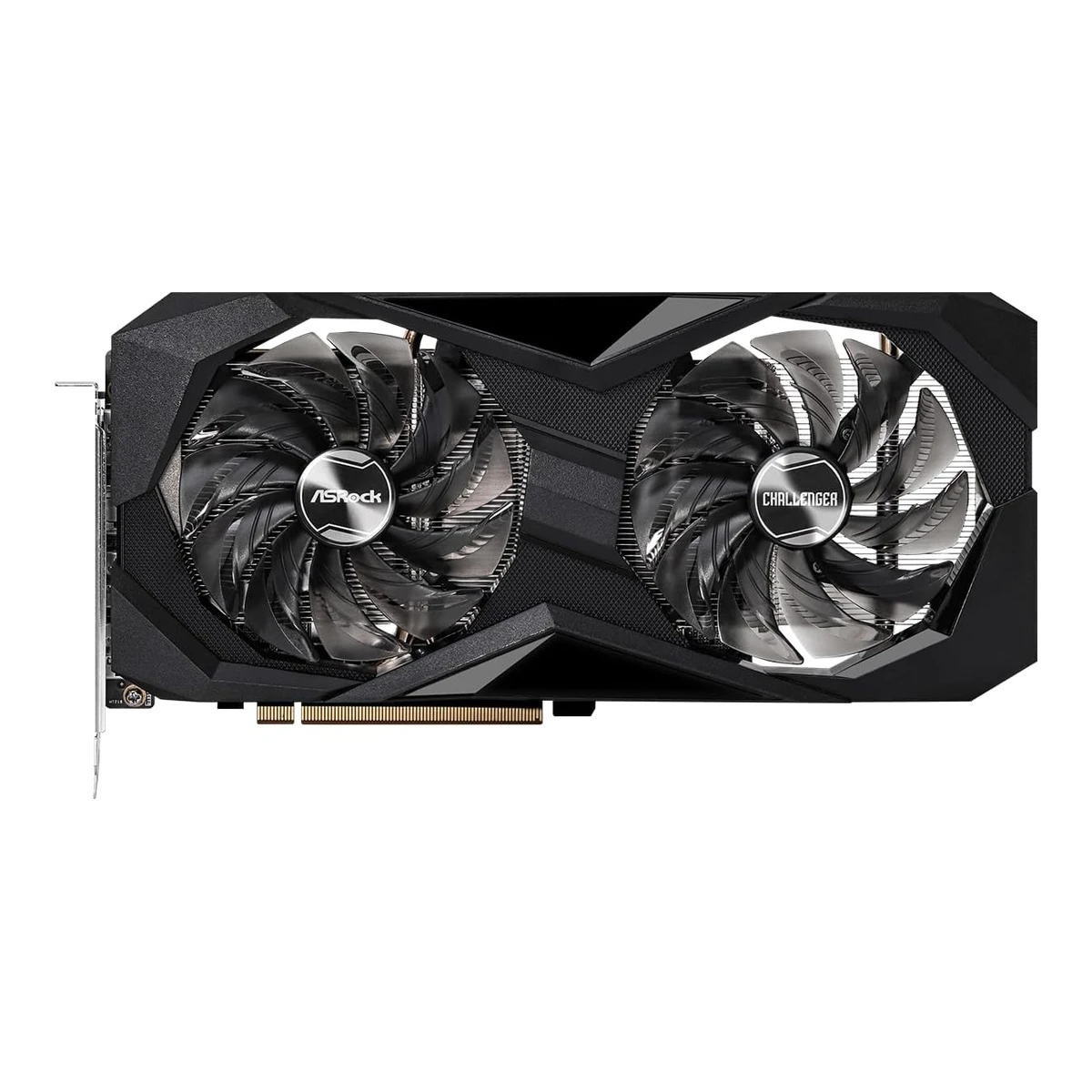

ASRock AMD Radeon RX 7600 Challenger 8GB OC

ASRockGraphics card

AMD Radeon RX 7600 Challenger 8GB OC

Released May 2023.7Press releaseamd.com/en/newsroom/press-releases/2023-5-24-amd-introduces-amd-radeon-rx-7600-graphics-card-f.htmlRead 15 October 2026Cards are expected from AMD.com and board partners including ASRock beginning May 25 2023. Last checked 16 October 2026.

GPU
AMD Radeon RX 7600
VRAM
8GB
Length
269.2mm
Board power
165W

65 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1
  • 3 DisplayPort 1.4a

All specs

SourceCalculated

General

Series
Challenger1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Description: AMD Radeon RX 7600 Challenger 8GB OC, RX7600 CL 8GO. Challenger is ASRock's line.
Model numbers
RX7600 CL 8GO, 90-GA41ZZ-00UANF1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Description heading: RX7600 CL 8GO. The page is a verbatim copy of the ASRock specification tab. asrock.com sits behind a bot check, so the maker tab was read through this copy. The Challenger Pro (RX7600 CLP 8GO) is a triple-fan card and a different product.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Model Number and Mfr Part Number: RX7600 CL 8GO.3Spec databasebuildcores.com/products/GPU/wqes2i8ro/ASRock-AMD-Radeon-RX-7600-Challenger-8GB-OC-GDDR6Read 15 October 2026Part numbers RX7600 CL 8GO and 90-GA41ZZ-00UANF.4Retailer pagekomputronik.pl/product/842308/karta-graficzna-asrock-radeon-rx-7600-challenger-oc-8gb-gddr6.htmlRead 15 October 2026Kod producenta RX7600 CL 8GO.
GTIN / EAN
47104839420373Spec databasebuildcores.com/products/GPU/wqes2i8ro/ASRock-AMD-Radeon-RX-7600-Challenger-8GB-OC-GDDR6Read 15 October 2026UPC and EAN 4710483942037.4Retailer pagekomputronik.pl/product/842308/karta-graficzna-asrock-radeon-rx-7600-challenger-oc-8gb-gddr6.htmlRead 15 October 2026Kod EAN 4710483942037 with producer code RX7600 CL 8GO. The shop showed the card as temporarily unavailable on 2026-10-15.
Announced
Not available
Status
Available1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Manager IT, a Finnish distributor, lists the card as In stock on 2026-10-15.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Amazon US page for ASIN B0C626FFG2 on 2026-10-15: Best Sellers Rank #48 in Computer Graphics Cards, 286 ratings at 4.6 stars, with an offers list. The page showed no featured offer for the delivery address used, so stock at US sellers was not confirmed. ASRock also sells a bundle of this card with a power supply (ASIN B0H34PZ2Y6).
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
AMD Radeon RX 76001Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Graphics Engine AMD Radeon RX 7600.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026
GPU brand
AMD6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026AMD Radeon RX 7600 product page.
Reference launch price (US)
$2697Press releaseamd.com/en/newsroom/press-releases/2023-5-24-amd-introduces-amd-radeon-rx-7600-graphics-card-f.htmlRead 15 October 2026Dated 2023-05-24: suggested etail price of $269 USD. No tax is included in the figure.

GPU

GPU architecture
RDNA 37Press releaseamd.com/en/newsroom/press-releases/2023-5-24-amd-introduces-amd-radeon-rx-7600-graphics-card-f.htmlRead 15 October 2026The card is built on the AMD RDNA 3 architecture.
GPU die
Navi 338Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: Architecture Navi 33.
Process
TSMC N68Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: Process Technology TSMC N6. AMD names no node on its product page.
Transistors
13.3billion6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Transistor Count 13.3 B.8Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: 13.3 billion.
Die size
204mm²8Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: die size 204 mm2.
Compute units
326Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Compute Units 32.8Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: CUs 32.
Shader cores
2,0481Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Stream Processors 2048.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Stream Processors 2048.8Reviewtomshardware.com/reviews/amd-radeon-rx-7600-reviewRead 15 October 2026Specifications table: GPU cores (shaders) 2048.
Ray tracing cores
326Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Ray Accelerators 32.
AI cores
646Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026AI Accelerators 64.
ROPs
646Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026ROPs 64.
L2 cache
2MB9Reviewchipsandcheese.com/p/amds-rx-7600-small-rdna-3-appearsRead 15 October 2026Text: Navi 33 has 2 MB of L2 cache and 32 MB of Infinity Cache. The L2 is 2 MB on the RX 7600. AMD's product page states no L2 figure.
Infinity Cache (L3)
32MB6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026AMD Infinity Cache Technology 32 MB.9Reviewchipsandcheese.com/p/amds-rx-7600-small-rdna-3-appearsRead 15 October 2026Text: 32 MB of Infinity Cache.
FP32 compute (claimed)
21.7TFLOPS6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Peak Single Precision (FP32 Vector) Performance 21.7 TFLOPs. AMD counts dual-issue.
AI performance (claimed)
PrecisionThroughput (TOPS)
FP1643.5
INT843.5
INT487
Source6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Peak FP16 Matrix 43.5 TFLOPs, INT8 Matrix 43.5 TOPs and INT4 Matrix 87 TOPs. FP16 is stored in TFLOPS unchanged. AMD does not say whether the matrix figures use sparsity, so the sparse key is left out. Figures are for the reference GPU.

Clocks

Base clock
1,770MHz1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Engine Clock: Base Clock 1770 MHz, listed with the Game Clock and Boost Clock of this card.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Product description: Base Clock 1770 MHz.
Game clock
2,280MHz1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Engine Clock: Game Clock 2280 MHz. AMD's reference Game Frequency is 2250 MHz.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Product description: Game Clock 2280 MHz.
Boost clock
2,695MHz1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Engine Clock: Boost Clock up to 2695 MHz. AMD's reference boost is up to 2655 MHz, so the card is factory overclocked. ASRock lists no second OC mode.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Product description: Boost Clock up to 2695 MHz / 18 Gbps.
Boost clock in OC mode
Not available
Reference boost clock
2,655MHz6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Boost Frequency up to 2655 MHz. AMD describes it as a maximum burst clock.

Memory

VRAM
8GB1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Memory 8GB GDDR6.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Max Memory Size 8 GB.
VRAM type
GDDR61Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Memory 8GB GDDR6.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Memory Type GDDR6.
Memory bus width
128bits1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Memory Interface 128-bit.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Memory Interface 128-bit.
Memory speed
18Gbps1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Memory Clock 18 Gbps.6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Memory Speed up to 18 Gbps.
Memory bandwidth
288GB/s6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Memory Bandwidth up to 288 GB/s. The 477 GB/s effective figure includes the cache and is not stored.

Connectivity

PCIe generation
41Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Bus Standard PCI Express 4.0 x8.
PCIe lanes
81Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Bus Standard PCI Express 4.0 x8.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Bus Standard PCI Express 4.0 x 8.9Reviewchipsandcheese.com/p/amds-rx-7600-small-rdna-3-appearsRead 15 October 2026Final Words: the RX 7600 has eight PCIe lanes.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.11Not available
DisplayPort1.4a332.4
Source1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Interface: 1 x HDMI 2.1 (up to FRL 10Gbps) and 3 x DisplayPort 1.4a with DSC (up to HBR3 8.1Gbps). The 8.1 Gbps is the HBR3 rate per lane. The 32.4 Gbps stored is the HBR3 link rate of four lanes that the field help assigns to DisplayPort 1.4. No HDMI bandwidth is stored, since ASRock gives only a per-lane figure.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1
Highest DisplayPort version
1.4a
Fastest DisplayPort link
32.4Gbps
Max displays
41Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Multi-view 4.
Max output resolution
7680 × 4320px1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Resolution: Digital Max Resolution 7680 x 4320. ASRock gives no refresh rate and AMD's page for this GPU gives none, so only the resolution is stored.
HDCP version
Not available

Video engine

Video encoders
Not available
Video decoders
Not available
Hardware video encode
H.264, H.265 (HEVC), AV16Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 20264K H264, H265/HEVC and AV1 encode: Yes.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV16Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 comes from the AMD press release footnote.7Press releaseamd.com/en/newsroom/press-releases/2023-5-24-amd-introduces-amd-radeon-rx-7600-graphics-card-f.htmlRead 15 October 2026Footnote 3: video codec acceleration includes at least the HEVC (H.265), H.264, VP9 and AV1 codecs.

Graphics features

DirectX
12 Ultimate1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026DirectX 12 Ultimate.
Vulkan
1.410Certification listkhronos.org/conformance/adopters/conformant-products/vulkanRead 15 October 2026AMD submission 967, dated 2026-01-01, lists the Radeon RX 7600 as Vulkan 1.4 conformant (CTS 1.4.3.3).
OpenGL
4.61Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026OpenGL 4.6.
Upscaling technologies
FSR6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Supported Technologies list AMD FSR without a version, so the name is stored without one.
Frame generation
FSR Frame Generation, AMD Fluid Motion Frames 211Maker product pageamd.com/en/products/software/adrenalin/afmf.htmlRead 15 October 2026AFMF 2.1 requirements: AMD Radeon RX 7000 Series graphics cards support HYPR-RX and AFMF 2. Written as Fluid Motion Frames 2 like the other AMD cards.12Maker product pageamd.com/en/products/graphics/technologies/fidelityfx/super-resolution.htmlRead 15 October 2026Compatibility table: AMD FSR 3 frame generation runs on AMD Radeon RX 5000 Series graphics and above.

Power

Board power
Not available
Reference board power
165W6Maker product pageamd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7600.htmlRead 15 October 2026Typical Board Power (Desktop) 165 W.7Press releaseamd.com/en/newsroom/press-releases/2023-5-24-amd-introduces-amd-radeon-rx-7600-graphics-card-f.htmlRead 15 October 2026Key specifications table: TBP 165W.
PSU wattage (card maker)
550W1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Recommended PSU 550W.
Power connector
1 x 8-pin PCIe1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Power Connector 1 x 8-pin.

Cooling

Cooler type
Open air1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Key Features: Dual Fan Design, Striped Axial Fan, Ultra-fit Heatpipe, 0dB Silent Cooling.
Fans
21Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Key Features: Dual Fan Design.3Spec databasebuildcores.com/products/GPU/wqes2i8ro/ASRock-AMD-Radeon-RX-7600-Challenger-8GB-OC-GDDR6Read 15 October 2026Cooling: 2 fans.
Radiator size
Not available
Fan stop at low load
Yes1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Key Features: 0dB Silent Cooling. No temperature threshold is stated.
Dual BIOS
Not available

Dimensions and weight

Length
269.2mm1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Dimensions 269.2 x 131.8 x 40.3 mm. ASRock writes no axis names. Length is the longest side and thickness the shortest.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Compatibility note: 269.2x131.8x40.3mm.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Dimensions 131.8 x 40.3 x 269.2 mm.
Height
131.8mm1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Second value of 269.2 x 131.8 x 40.3 mm.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Compatibility note: 269.2x131.8x40.3mm.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Dimensions 131.8 x 40.3 x 269.2 mm.
Thickness
40.3mm1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Third value of 269.2 x 131.8 x 40.3 mm. This is 1.98 slots of 20.32 mm.2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Compatibility note: 269.2x131.8x40.3mm.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Dimensions 131.8 x 40.3 x 269.2 mm.
Slot width
2slots2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026System compatibility note: 2-slot card, 269.2x131.8x40.3mm. Alternate Germany prints 2.5 slots in its own feed, which is not used.3Spec databasebuildcores.com/products/GPU/wqes2i8ro/ASRock-AMD-Radeon-RX-7600-Challenger-8GB-OC-GDDR6Read 15 October 2026Case slot width 2.
Low profile
Not available
NVIDIA SFF-Ready
Not available
Weight
640g(1.4 lb)1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Net Weight 640 g.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Weight 640 g.
Package weight
Not available

Lighting and software

RGB lighting
No3Spec databasebuildcores.com/products/GPU/wqes2i8ro/ASRock-AMD-Radeon-RX-7600-Challenger-8GB-OC-GDDR6Read 15 October 2026Lighting: None. ASRock's key feature list has no lighting either.
Lighting sync
Not available
Software
Not available

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
1 x Quick Installation Guide1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026Accessories: 1 x Quick Installation Guide.5Spec databasedigit.in/pc-components/asrock-amd-radeon-rx-7600-challenger-8-gb-oc-gddr6-graphics-card.htmlRead 15 October 2026Sales Package: Graphics Card, 1 x Quick Installation Guide.
Power adapter cable included
No1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026The accessories list has only the quick installation guide.
Support bracket included
No1Retailer pagemarket.managerit.fi/asrock-radeon-rx7600-challenger-8gb/cat-p/c/p1003903235/l_enRead 15 October 2026The accessories list has only the quick installation guide.

Warranty

Manufacturer warranty (source market)
3years2Retailer pageamazon.com/dp/B0C626FFG2Read 15 October 2026Warranty Description: 3 years. The market is the United States.
