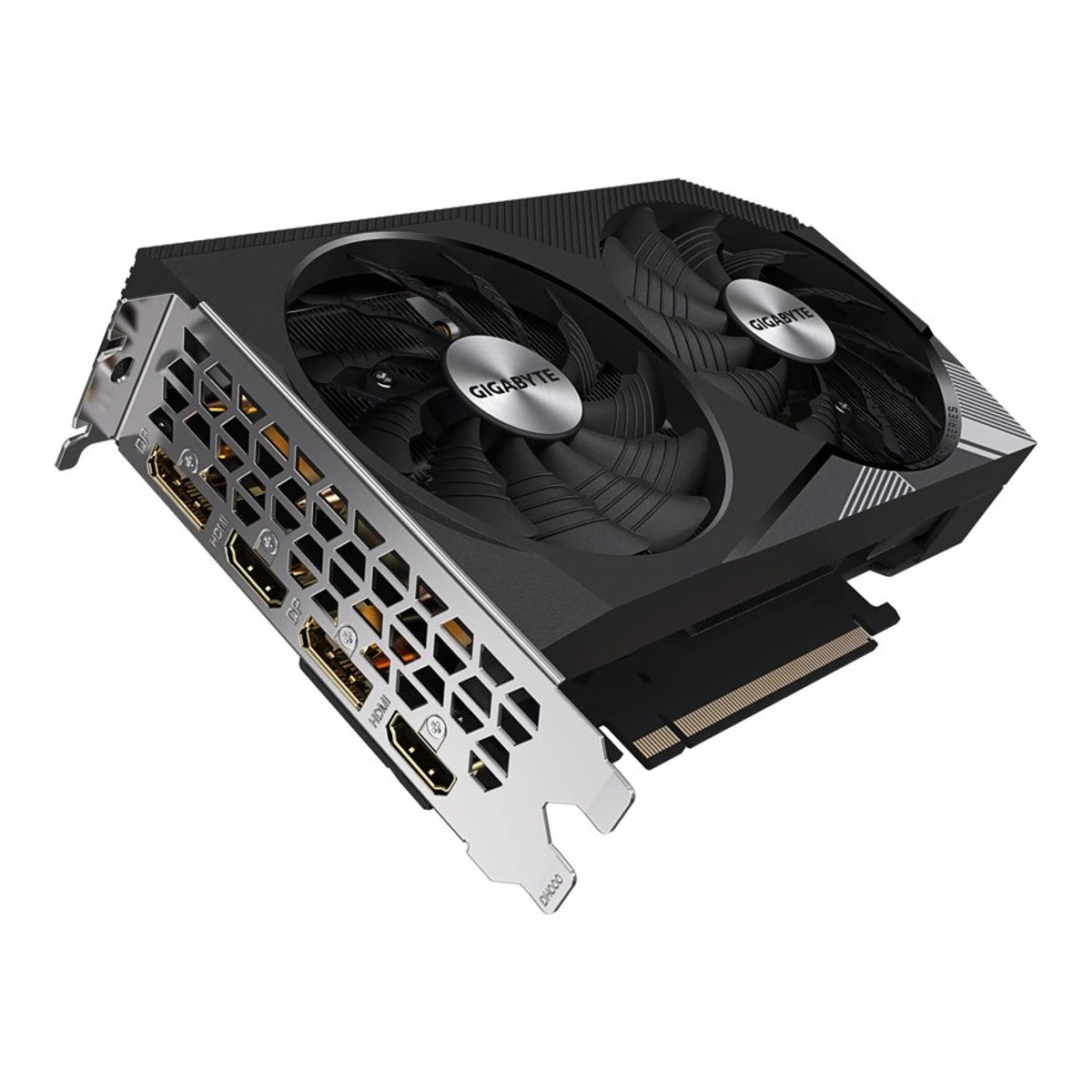

GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)

GIGABYTEGraphics card

GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)

Released February 2023.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026The listing for product code GV-N3060WF2OC-12GD2.0 carries product image files in a storage path dated 2023/02. No launch announcement for rev. 2.0 was found, so the month is the earliest dated evidence and may be late. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 3060
VRAM
12GB
Length
198mm
Board power
170W

61 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 HDMI 2.1
  • 2 DisplayPort 1.4a

All specs

SourceCalculated

General

Series
WINDFORCE3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Product name GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) with cooling technology GIGABYTE WINDFORCE 2X.
Model numbers
GV-N3060WF2OC-12GD, GV-N3060WF2OC-12GD 2.03Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Product code GV-N3060WF2OC-12GD 2.0.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026Product code GV-N3060WF2OC-12GD2.0.6Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3060-windforce-oc-12g-rev-2-0-graphics-card-2x-windforce-fans-12gb-192-bit-gddr6-gv-n3060wf2oc-12gd-rev2-0-video-cardRead 15 October 2026SKU GV-N3060WF2OC-12GD-2.0.7Spec databasebuildcores.com/products/GPU/on4ypn8f9/Gigabyte-WINDFORCE-OC-Rev-2.0-GeForce-RTX-3060-12GB-GDDR6Read 15 October 2026Part number GV-N3060WF2OC-12GD REV2.0.
GTIN / EAN
4719331312862, 8895230365632Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026The page title carries 4719331312862, the EAN printed on the distributor data sheet.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026EAN 4719331312862 is printed on the data sheet. Arvutitark's structured data gives the same value for GV-N3060WF2OC-12GD2.0.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026Structured data gives gtin14 4719331312862 and sku GV-N3060WF2OC-12GD2.0.7Spec databasebuildcores.com/products/GPU/on4ypn8f9/Gigabyte-WINDFORCE-OC-Rev-2.0-GeForce-RTX-3060-12GB-GDDR6Read 15 October 2026UPC 889523036563 for part number GV-N3060WF2OC-12GD REV2.0. The rev. 1.0 card has another UPC (889523033357 on a US retailer listing).
Announced
Not available
Status
Available2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026The shop lists the card with an add to cart button on 2026-10-15.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026The shop lists the card as orderable with 28 pieces on 2026-10-15.6Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3060-windforce-oc-12g-rev-2-0-graphics-card-2x-windforce-fans-12gb-192-bit-gddr6-gv-n3060wf2oc-12gd-rev2-0-video-cardRead 15 October 2026The listing is live on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Product colour: Black.
GPU
NVIDIA GeForce RTX 30602Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Graphics Processing: GeForce RTX 3060. The page copies the Gigabyte spec table for rev. 2.0.
GPU brand
NVIDIA8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026GeForce RTX 3060 column of the RTX 3060 Family table.
Reference launch price (US)
$32911Press releasenvidianews.nvidia.com/news/nvidia-introduces-geforce-rtx-3060-next-generation-of-the-worlds-most-popular-gpuRead 15 October 2026The GeForce RTX 3060 is priced at $329, announced on 2021-01-12. The price excludes tax. The same release gives 13 shader-TFLOPs as a rounded figure.

GPU

GPU architecture
Ampere8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026NVIDIA Architecture: Ampere.
GPU die
GA10613Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026Desktop table, RTX 3060 12 GB row: GA106-300. A GA104-150 variant exists, and Guru3D says it is sold in China. The Gigabyte card is not listed with that die, so the die name GA106 is stored.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: GA106.
Process
Samsung 8N12Maker spec sheet (PDF)nvidia.com/content/PDF/nvidia-ampere-ga-102-gpu-architecture-whitepaper-v2.pdfRead 15 October 2026The Ampere whitepaper says the architecture is fabricated on Samsung's 8nm 8N NVIDIA Custom Process. It covers GA102 and does not name GA106. Wikipedia says all RTX 30 GPUs use the Samsung 8 nm node and ComputerBase names a Samsung custom 8 nm process for the RTX 3060.13Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026The page says all RTX 30 GPUs are made on the 8 nm Samsung node.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: Samsung custom 8 nm.
Transistors
Not available
Die size
276mm²13Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 276 mm2.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 276 mm2.
Compute units
2813Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 28 SMs.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 28 of 30 SMs active.
Shader cores
3,5843Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026CUDA cores 3584.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026NVIDIA CUDA Cores 3584.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 3584 FP32 ALUs.
Ray tracing cores
2813Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 28 RT cores.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 28 RT cores.
AI cores
11213Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 112 Tensor cores.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 112 Tensor cores.
ROPs
4813Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 48 ROPs.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 48 ROPs.
L2 cache
Not available
Infinity Cache (L3)
Not available
FP32 compute (claimed)
12.74TFLOPS13Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: 12.74 TFLOPS at the 1777 MHz boost clock. ComputerBase prints 12.7. NVIDIA rounds to 13 shader-TFLOPs.14Reviewcomputerbase.de/2021-02/geforce-rtx-3060-asus-msi-testRead 15 October 2026Spec table: 12.7 TFLOPS.
AI performance (claimed)
Not available

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
1,792MHz2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Core Clock 1792 MHz (Reference Card: 1777 MHz). The reference value equals NVIDIA's boost clock, so Gigabyte's Core Clock is the boost clock.
Boost clock in OC mode
Not available
Reference boost clock
1,777MHz2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Reference Card: 1777 MHz in the Gigabyte Core Clock row.13Spec databaseen.wikipedia.org/wiki/GeForce_30_seriesRead 15 October 2026RTX 3060 row: boost 1777 MHz.

Memory

VRAM
12GB2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 20263Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Memory 12 GB GDDR6.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Standard Memory Config 12 GB GDDR6 / 8 GB GDDR6. The 12 GB value is listed first.
VRAM type
GDDR62Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 202612 GB GDDR6.
Memory bus width
192bits2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 20263Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Memory bus 192 bit.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Memory Interface Width 192-bit / 128-bit, with the 192-bit value for the 12 GB card.
Memory speed
15Gbps2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Memory Clock 15000 MHz, which is 15 Gbps effective.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Memory clock speed 15000 MHz.
Memory bandwidth
360GB/s2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Memory Bandwidth 360 GB/s.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Memory bandwidth (max) 360 GB/s.

Connectivity

PCIe generation
42Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Card Bus PCI-E 4.0 x 16.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026PCI Express Gen 4: Yes.
PCIe lanes
162Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Card Bus PCI-E 4.0 x 16.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.12Not available
DisplayPort1.4a232.4
Source2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Output: DisplayPort 1.4a x2 and HDMI 2.1 x2. DisplayPort 1.4 HBR3 is 32.4 Gbps.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 20262 HDMI ports (HDMI 2.1) and 2 DisplayPorts (version 1.4a).8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Footnotes: DisplayPort 1.4a and HDMI as specified in HDMI 2.1. The reference table lists 3x DisplayPort and one HDMI, and Gigabyte's own outputs are stored.
Display outputs in total
4
HDMI ports
2
DisplayPort ports
2
Highest HDMI version
2.1
Highest DisplayPort version
1.4a
Fastest DisplayPort link
32.4Gbps
Max displays
42Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Multi-view 4.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Maximum displays per video card: 4.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Multi Monitor 4.
Max output resolution
Resolution7680 × 4320 pxRefresh rate60 Hz2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Digital max resolution 7680x4320. Gigabyte gives no refresh rate. The 60 Hz is NVIDIA's figure for 8K with DP 1.4a and DSC or HDMI 2.1 and DSC.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Maximum Digital Resolution 7680x4320. Footnote 1: up to 8K 12-bit HDR at 60 Hz with DP 1.4a and DSC or HDMI 2.1 and DSC.
HDCP version
2.38Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026HDCP 2.3.

Video engine

Video encoders
19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 3060 desktop row: 7th Gen NVENC, 1 chip, 1 total.
Video decoders
19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 3060 desktop row: 5th Gen NVDEC, 1 chip, 1 total.
Hardware video encode
H.264, H.265 (HEVC)9Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026Same NVENC row: H.264 and HEVC encode are marked YES. AV1 encode is NO.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026NVDEC row: VP9, H.264 8-bit, HEVC and AV1 decode are marked YES.

Graphics features

DirectX
12 Ultimate2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Microsoft DirectX 12 Ultimate: Yes.
Vulkan
1.410Maker product pagedeveloper.nvidia.com/vulkan-driverRead 15 October 2026NVIDIA lists the GeForce RTX 3060 among the GeForce RTX 30 Series GPUs with full Vulkan 1.4 support.
OpenGL
4.62Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Row: Vulkan RT API, OpenGL 4.6.
Upscaling technologies
DLSS8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026NVIDIA DLSS: Yes. The page gives no DLSS version and no frame generation, so the plain name is stored.
Frame generation
Not available

Power

Board power
Not available
Reference board power
170W8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Graphics Card Power 170 W for the RTX 3060. NVIDIA says the table describes the Founders Edition or reference design.
PSU wattage (card maker)
550W2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Recommended PSU 550W.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Minimum system power supply 550 W.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/30-series/rtx-3060-3060tiRead 15 October 2026Required System Power 550 W for the RTX 3060, as a cross-check of Gigabyte's 550 W. Footnote: based on an Intel Core i9-10900K system.
Power connector
1 x 8-pin PCIe2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Power Connectors: 8 pin*1.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Supplementary power connectors: 1x 8-pin.

Cooling

Cooler type
Open air3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Cooling type: Active. Two fans blow onto a heatsink.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026WINDFORCE 2X cooling system: two blade fans, 3 composite copper heat pipes and GPU direct touch.
Fans
23Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Number of fans: 2. Cooling technology: GIGABYTE WINDFORCE 2X. Fan diameter 9 cm.4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026Two unique 90 mm blade fans with alternate spinning.
Radiator size
Not available
Fan stop at low load
Yes4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026Gigabyte text copied on the page: the active 3D fan provides semi-passive cooling, and the fans remain off when the GPU is in low-load or low-power mode. No temperature threshold is stated.
Dual BIOS
Not available

Dimensions and weight

Length
198mm2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Card size L=198 W=121 H=39 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Length 198 mm.
Height
121mm2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Second value of L=198 W=121 H=39 mm.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Height 121 mm.
Thickness
39mm2Retailer pagebosspacific.com.au/shop/4719331312862-4719331312862-gigabyte-geforce-rtxtm-3060-windforce-oc-12g-10-gddr6-video-card-1792-mhz-pci-e-40-1x-hdmi-21-2-rev-20-21223Read 15 October 2026Third value of L=198 W=121 H=39 mm.3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Depth 39 mm.
Slot width
Not available
Low profile
Not available
NVIDIA SFF-Ready
Not available
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
No7Spec databasebuildcores.com/products/GPU/on4ypn8f9/Gigabyte-WINDFORCE-OC-Rev-2.0-GeForce-RTX-3060-12GB-GDDR6Read 15 October 2026RGB/Lighting: None. Gigabyte's feature text lists no lighting.
Lighting sync
Not available
Software
Not available

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Quick guide3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026Packaging content: user guide only. The Gigabyte listing on netcodex.ph names a quick guide.6Retailer pagenetcodex.ph/product/gigabyte-geforce-rtx-3060-windforce-oc-12g-rev-2-0-graphics-card-2x-windforce-fans-12gb-192-bit-gddr6-gv-n3060wf2oc-12gd-rev2-0-video-cardRead 15 October 2026Accessories: Quick guide. The page copies the Gigabyte spec table for GV-N3060WF2OC-12GD rev. 2.0.
Power adapter cable included
No3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026The packaging content list holds only a user guide, and the card has an 8-pin input.
Support bracket included
No3Spec databaseshop.aodatacloud.es/wp-content/uploads/datasheet_gv-n3060wf2oc-12gd_20.pdfRead 15 October 2026The packaging content list holds only a user guide.

Warranty

Manufacturer warranty (source market)
3years4Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/gigabyte-nvidia-geforce-rtx-3060-12-gb-1145220Read 15 October 2026Warranty (months) 36. The market is Estonia. Inet in Sweden also states 3 years.5Retailer pageinet.se/produkt/5413670/gigabyte-geforce-rtx-3060-12gb-windforce-2x-oc-2-0Read 15 October 2026Warranty 3 years. The market is Sweden. The listing is marked as discontinued.
