PC parts / Graphics cards
MSIGraphics card

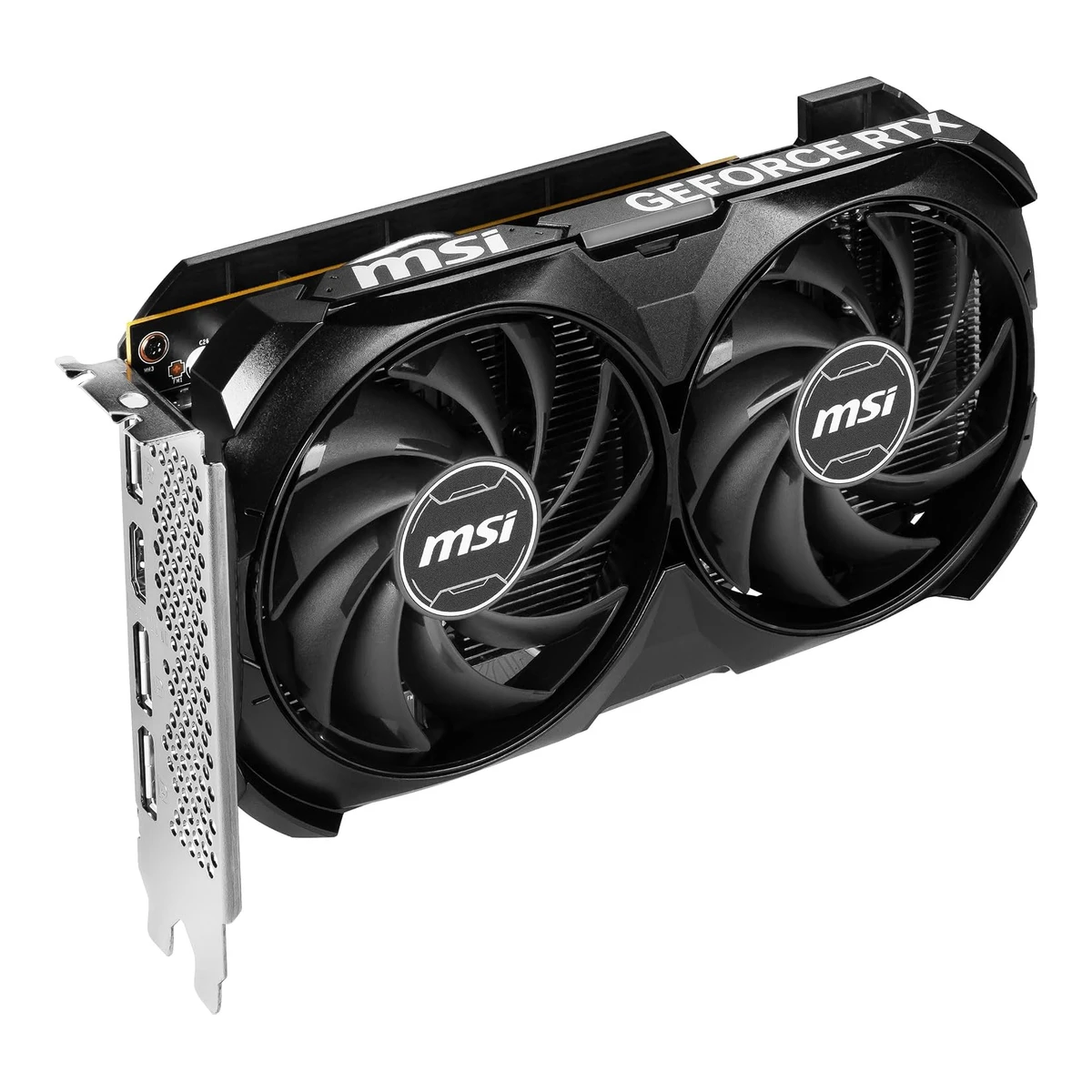

GeForce RTX 4060 VENTUS 2X BLACK 8G OC
Released June 2023.6Press releasenvidia.com/en-us/geforce/news/geforce-rtx-4060-available-june-29Read 23 October 2026The RTX 4060 goes on sale on 2023-06-29 with cards from partners including MSI. Last checked 23 October 2026.
- GPU
- NVIDIA GeForce RTX 4060
- VRAM
- 8GB
- Length
- 199mm
- Board power
- 115W
76 of 100 fields known.
At a glance
PSU wattage
550W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Recommended PSU 550 W. NVIDIA states the same 550 W as required system power.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Recommended PSU 550 W.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Required System Power 550 W, as a cross-check of MSI's 550 W. Footnote 8: based on a Ryzen 9 5900X system.
Lower than 77% of other graphics cards. Lower is better.
Thickness
Lower than 76% of other graphics cards. Lower is better.
Ports
- HDMI 2.1a
- 3 DisplayPort 1.4a
General
- Model numbers
- 912-V516-004, V516-004R, RTX 4060 VENTUS 2X BLACK 8G OC11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Manufacturer code V516-004.12Retailer pageamazon.com/dp/B0C7W8GZMJRead 23 October 2026Model Number and Mfr Part Number V516-004R on 2026-10-23.13Retailer pageamazon.com/dp/B0C8BPW1SPRead 23 October 2026Model Number and Mfr Part Number: RTX 4060 VENTUS 2X BLACK 8G OC.14Retailer pageebay.de/p/22061622894Read 23 October 2026Herstellernummer V516-004R.16Spec databasepangoly.com/en/product/msi-geforce-rtx-4060-ventus-2x-black-8g-ocRead 23 October 2026Model number 912-V516-004, which is MSI's order code for this card.
- GTIN / EAN
- 4711377115421, 82414233030214Retailer pageebay.de/p/22061622894Read 23 October 2026EAN and UPC 4711377115421. Manufacturer number V516-004R.15Spec databasebuildcores.com/products/GPU/t5xj0pulr/MSI-VENTUS-2X-BLACK-OC-GeForce-RTX-4060-8GB-GDDR6Read 23 October 2026UPC 824142330302 and EAN 0824142330302 (a US-style code) plus EAN 4711377115421.
- Announced
- Not available
- Status
- Available11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Coolblue marks the card 'Never available again' for its own shop on 2026-10-23. MSI still lists the product and other shops sell it, so the status stays available.13Retailer pageamazon.com/dp/B0C8BPW1SPRead 23 October 2026Amazon US page on 2026-10-23: 1,176 ratings at 4.8 stars, Amazon's Choice, offer from a third-party seller with 10 left in stock.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Markets
- Not available
- Colours
- Black11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Color: Black.15Spec databasebuildcores.com/products/GPU/t5xj0pulr/MSI-VENTUS-2X-BLACK-OC-GeForce-RTX-4060-8GB-GDDR6Read 23 October 2026Manufacturer color Black.
- GPU
- NVIDIA GeForce RTX 40601Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Graphics Processing Unit: NVIDIA GeForce RTX 4060.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Graphics Processing Unit NVIDIA GeForce RTX 4060. Same values as the datasheet.
- Reference launch price (US)
- $2996Press releasenvidia.com/en-us/geforce/news/geforce-rtx-4060-available-june-29Read 23 October 2026Published 2023-06-22: the GeForce RTX 4060 goes on sale on June 29 with prices starting at $299. NVIDIA's price for the chip, excluding tax. MSI states no price for this card.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: launch MSRP 299 USD.
GPU
- GPU architecture
- Ada Lovelace3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026NVIDIA Architecture: Ada Lovelace.
- GPU die
- AD1077Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: AD107.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: AD107-400.
- Process
- TSMC 4N7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: TSMC 4N.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: TSMC 4N.
- Transistors
- 18.9billion7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 18.9 billion for AD107.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 18.9 billion.
- Die size
- 146mm²10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026Desktop table, RTX 4060 row: AD107-400, 146 mm2.
- Compute units
- 247Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 24 SMs.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 24 SMs.
- Shader cores
- 3,0721Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026CUDA Cores: 3072 Units.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026NVIDIA CUDA Cores 3072. The page lists 3rd generation RT cores and 4th generation Tensor cores with 242 AI TOPS but gives no core counts. The 242 AI TOPS figure names no precision, so ai_performance is not stored.
- Ray tracing cores
- 247Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 24 RT cores, 3rd generation.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 24 RT cores.
- AI cores
- 967Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 96 Tensor cores, 4th generation.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 96 Tensor cores.
- ROPs
- 487Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 48 ROPs.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 48 ROPs.
- L2 cache
- 24MB7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 24,576 KB L2 cache, which is 24 MB.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 24 MB L2.
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 15.11TFLOPS7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: FP32 15.1 TFLOPS. Wikipedia gives 15.11.10Spec databaseen.wikipedia.org/wiki/GeForce_40_seriesRead 23 October 2026RTX 4060 row: 15.11 TFLOPS at the 2460 MHz boost clock. NVIDIA rounds to 15.
- AI performance (claimed)
- Not available
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock
- 2,490MHz1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Core Clocks: Boost 2490 MHz. MSI lists no base clock for this card. NVIDIA's reference boost is 2460 MHz.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: Boost Clock / Memory Speed 2490 MHz / 17 Gbps. Specification tab: Boost 2490 MHz.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Table: GPU boost 2490 MHz. Base 1830 MHz is NVIDIA's value and is not stored.
- Boost clock in OC mode
- 2,505MHz1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Core Clocks: Extreme Performance 2505 MHz, set in MSI Center.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Extreme Performance 2505 MHz (MSI Center).
Memory
- VRAM
- 8GB1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Memory: 8GB GDDR6.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: 8GB GDDR6.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Standard Memory Config: 8 GB GDDR6.
- VRAM type
- GDDR61Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Memory: 8GB GDDR6. Some retailer titles say GDDR6X, which is wrong.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: 8GB GDDR6.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Standard Memory Config: 8 GB GDDR6.
- Memory bus width
- 128bits1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Memory Bus: 128-bit.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Memory Interface Width 128-bit.
- Memory speed
- 17Gbps1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Memory Speed: 17 Gbps.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: 17 Gbps.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Specification table: 17 Gbps.
Connectivity
- PCIe generation
- 41Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Interface: PCI Express Gen 4 x 8.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026PCI Express Gen 4: Yes.
- PCIe lanes
- 81Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Interface: PCI Express Gen 4 x 8. The card uses 8 lanes.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Text: the AD107 chip has 8 PCIe 4.0 lanes.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1a 1 Not available DisplayPort 1.4a 3 32.4 Source1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Output: DisplayPort x 3 (v1.4a) and HDMI x 1 (supports 4K@120Hz HDR, 8K@60Hz HDR and VRR as specified in HDMI 2.1a). MSI states no DisplayPort link class. The 32.4 Gbps stored is the HBR3 link rate of DisplayPort 1.4a. No HDMI bandwidth is stored.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: DisplayPort x 3 (v1.4a), HDMI x 1 (4K@120Hz HDR, 8K@60Hz HDR and VRR as specified in HDMI 2.1a).- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1a
- Highest DisplayPort version
- 1.4a
- Fastest DisplayPort link
- 32.4Gbps
- Max displays
- 41Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Maximum Displays: 4.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Maximum Displays 4.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Multi Monitor: up to 4. MSI's figure is also 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate60 Hz1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Digital Maximum Resolution 7680 x 4320. MSI gives no refresh rate. The 60 Hz is NVIDIA's figure for 8K with DSC over DisplayPort 1.4a or HDMI 2.1.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Digital Maximum Resolution 7680 x 4320.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Maximum Display Resolution: 4K at 240 Hz or 8K at 60 Hz with DSC. Footnote 1: up to 8K 12-bit HDR at 60 Hz with DP 1.4a and DSC or HDMI 2.1 and DSC.
Video engine
- Video encoders
- 13Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026NVIDIA Encoder (NVENC): 1x 8th Generation.4Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026GeForce RTX 4060 desktop row: 8th Gen NVENC, 1 chip, 1 total.
- Hardware video encode
- H.264, H.265 (HEVC), AV13Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026NVENC 8th generation, AV1 Encode: Yes. H.264 and HEVC encode come from the developer support matrix.4Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026NVENC row: H.264, HEVC and AV1 encode are marked YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV13Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026NVDEC 5th generation, AV1 Decode: Yes. VP9, H.264 and HEVC decode come from the developer support matrix.4Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 23 October 2026NVDEC row: VP9, H.264 8-bit, HEVC and AV1 decode are marked YES.
Graphics features
- DirectX
- 12 Ultimate1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026DirectX Version Support: 12 Ultimate.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Microsoft DirectX 12 Ultimate: Yes.
- OpenGL
- 4.61Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026OpenGL Version Support: 4.6.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Row: Vulkan RT API, OpenGL 4.6.
Power
- Board power
- 115W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Power consumption: 115 W or 120 W. MSI gives two figures with no explanation of which applies, so the value stored is the 115 W that ComputerBase read as the fixed power limit of this card and that equals NVIDIA's board power.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026MSI card details: maximum TDP 115 W, and the power limit cannot be raised. Telemetry reads about 115 W while a PCAT capture shows up to 131 W, so 115 W is the BIOS limit.
- Reference board power
- 115W3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Total Graphics Power 115 W. The page says the table describes the Founders Edition or reference design.
- PSU wattage (card maker)
- 550W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Recommended PSU 550 W. NVIDIA states the same 550 W as required system power.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Recommended PSU 550 W.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Required System Power 550 W, as a cross-check of MSI's 550 W. Footnote 8: based on a Ryzen 9 5900X system.
- Power connector
- 1 x 8-pin PCIe1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Power connectors: 8-pin x 1.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Power connectors 8-pin x 1.3Maker product pagenvidia.com/en-us/geforce/graphics-cards/40-series/rtx-4060-4060tiRead 23 October 2026Supplementary Power Connectors: 1x PCIe 8-pin cable. Certain manufacturer models may use a 6-pin or 8-pin cable. MSI states the 8-pin.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Power: 1 x 8-pin.
Cooling
- Cooler type
- Open air1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Features: Dual Fan with TORX FAN 4.0. The fans blow onto a heatsink.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Aluminium radiator, two heat pipes and two axial fans.17Reviewprofesionalreview.com/2023/07/19/msi-rtx-4060-ventus-2x-black-oc-reviewRead 23 October 2026Aluminium heatsink with two copper heat pipes as cold plate, two fans blowing onto the fins.
- Fans
- 21Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Features: Dual Fan. Two fans and a huge heatsink.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: Dual Fan Thermal Design, TORX Fan 4.0.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Two 92 mm axial fans.17Reviewprofesionalreview.com/2023/07/19/msi-rtx-4060-ventus-2x-black-oc-reviewRead 23 October 2026Two TORX FAN 4.0 fans of 90 mm.
- Radiator size
- Not available
- Fan stop at low load
- Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Features: Zero Frozr. The fans completely stop when temperatures are relatively low. No threshold is stated.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: Zero Frozr, the fans completely stop when temperatures are relatively low.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Table: fans off in 2D mode: yes.17Reviewprofesionalreview.com/2023/07/19/msi-rtx-4060-ventus-2x-black-oc-reviewRead 23 October 2026The cooler supports the semi-passive Zero Frozr function.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 199mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Card Dimension 199 x 120 x 41 mm. MSI writes no axis names and does not say whether the bracket is included. Length is the longest side and thickness the shortest.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Card Dimension 199 x 120 x 41 mm.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Card 20.0 x 12.0 cm, PCB 16 cm long.
- Height
- 120mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Middle value of 199 x 120 x 41 mm.7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Card 20.0 x 12.0 cm.
- Slot width
- 2slots7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Table: cooler design Ventus, 2.0 slots. MSI states no slot figure. Coolblue and Pangoly also say 2 slots.11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Required open slots in your case: 2.15Spec databasebuildcores.com/products/GPU/t5xj0pulr/MSI-VENTUS-2X-BLACK-OC-GeForce-RTX-4060-8GB-GDDR6Read 23 October 2026Case slot width 2.16Spec databasepangoly.com/en/product/msi-geforce-rtx-4060-ventus-2x-black-8g-ocRead 23 October 2026Expansion slots required: 2.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- 546g(1.2 lb)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Weight (Card / Package): 546 g for the card. ComputerBase weighed its review card at 543 g.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Weight (Card / Package) 546 g / 783 g.11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Weight 546 g, the same as MSI's datasheet.12Retailer pageamazon.com/dp/B0C7W8GZMJRead 23 October 2026Item weight 546 g, the same as MSI's datasheet.
- Package weight
- 783g(1.7 lb)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026Weight (Card / Package): 783 g for the package.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Specification tab: Weight (Card / Package) 546 g / 783 g.
Lighting and software
- RGB lighting
- No7Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658Read 23 October 2026Plastic cooler cover, no RGB lighting.15Spec databasebuildcores.com/products/GPU/t5xj0pulr/MSI-VENTUS-2X-BLACK-OC-GeForce-RTX-4060-8GB-GDDR6Read 23 October 2026Lighting: None.17Reviewprofesionalreview.com/2023/07/19/msi-rtx-4060-ventus-2x-black-oc-reviewRead 23 October 2026No integrated lighting.
- Lighting sync
- Not available
- Software
- MSI Center1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026The sheet names MSI Center and Afterburner. MSI Center is the card maker's tuning software.2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026Overview: MSI Center.
Measured performance
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS 1 % low FPS A Plague Tale: Requiem 1920 1080 Ultra, resolution optimisation Ultra Quality Off No 67.4 56.2 Atomic Heart 1920 1080 Atomic Off No 65.4 48.8 Call of Duty: Modern Warfare II 1920 1080 Ultra, tessellation All, shadow maps Extra, weather Ultra Off No 77.3 69.4 Company of Heroes 3 1920 1080 Maximum Off No 70.8 37.9 Cyberpunk 2077 1920 1080 Ultra Off No 67.3 56.7 Cyberpunk 2077 1920 1080 Ultra, RT GI Medium, RT shadows On Off Yes 37.8 32.8 Dead Space 1920 1080 Ultra Off No 71.9 55.2 Dead Space 1920 1080 Ultra, RT AO On Off Yes 65.1 51.9 Dying Light 2 Stay Human 1920 1080 High quality Off No 88.4 71.6 Dying Light 2 Stay Human 1920 1080 High quality, RT GI and AO On Off Yes 59.2 52.6 F1 22 1920 1080 Ultra high Off No 149 123.8 F1 22 1920 1080 Ultra high, RT reflections Full, shadows and AO Medium Off Yes 95 69.2 Forspoken 1920 1080 Ultra, AO FidelityFX Off No 39.7 30.7 Forspoken 1920 1080 Ultra, RT shadows and AO On Off Yes 33.9 27.7 Hogwarts Legacy 1920 1080 Ultra Off No 45 38.7 Hogwarts Legacy 1920 1080 Ultra, RT reflections Ultra Off Yes 43.7 35.2 Metro Exodus Enhanced Edition 1920 1080 Extreme quality, RT High plus reflections Off Yes 50 35.8 Resident Evil 4 1920 1080 Maximum Off No 87.8 69 Resident Evil 4 1920 1080 Maximum, RT reflections High Off Yes 74 59.3 Returnal 1920 1080 Epic Off No 91.8 68.3 Returnal 1920 1080 Epic, RT reflections Epic, shadows Medium Off Yes 79.8 66.1 Marvel's Spider-Man: Miles Morales 1920 1080 Very High, AF 16x, shadows Very High, detail Very High Off No 75.2 64.9 Marvel's Spider-Man: Miles Morales 1920 1080 Very High, RT reflections High, geometry Very High, shadows Medium Off Yes 45.5 37.9 The Callisto Protocol 1920 1080 Ultra Off No 104.8 61.8 The Callisto Protocol 1920 1080 Ultra, RT reflections Medium, shadows On, transmission On Off Yes 71.2 49.3 The Last of Us Part I 1920 1080 Ultra Off No 51.5 47.5 The Witcher 3: Wild Hunt 1920 1080 Highest, Highest+ details, no HairWorks Off No 76.4 63.8 The Witcher 3: Wild Hunt 1920 1080 Highest, Highest+ details, RT GI Performance, reflections On Off Yes 46.2 38.4 Uncharted 1920 1080 Ultra Off No 80.3 69.3
Measured noise and temperature
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- Hot spot temperature while gaming
- 85°C9Reviewcomputerbase.de/artikel/grafikkarten/nvidia-geforce-rtx-4060-test.84658/seite-3Read 23 October 2026GPU hot spot 85 C, same test and chart.
- Memory temperature while gaming
- Not available
Measured power
In the box
- In the box
- Graphics card, Quick setup guide13Retailer pageamazon.com/dp/B0C8BPW1SPRead 23 October 2026What's in the box: Graphics card; quick setup guide.
- Power adapter cable included
- No13Retailer pageamazon.com/dp/B0C8BPW1SPRead 23 October 2026The box list holds no adapter and the card has an 8-pin input.
- Support bracket included
- No13Retailer pageamazon.com/dp/B0C8BPW1SPRead 23 October 2026The box list holds no support bracket.
Links
- Product page
- www.msi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC2Maker product pagemsi.com/Graphics-Card/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC/SpecificationRead 23 October 2026MSI product page. msi.com blocks automated fetches, so the Overview and Specification tabs were read in Chrome.
- Spec sheet
- storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdf1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-4060-VENTUS-2X-BLACK-8G-OC.pdfRead 23 October 2026One-page MSI datasheet for the global market, generated 2024-12-03. MSI also hosts regional copies.
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years11Retailer pagecoolblue.be/en/product/954851/msi-geforce-rtx-4060-ventus-2x-black-oc-8gb.htmlRead 23 October 2026Warranty 3 years from MSI. The market is Belgium.
