PC parts / Graphics cards
ASRockGraphics card

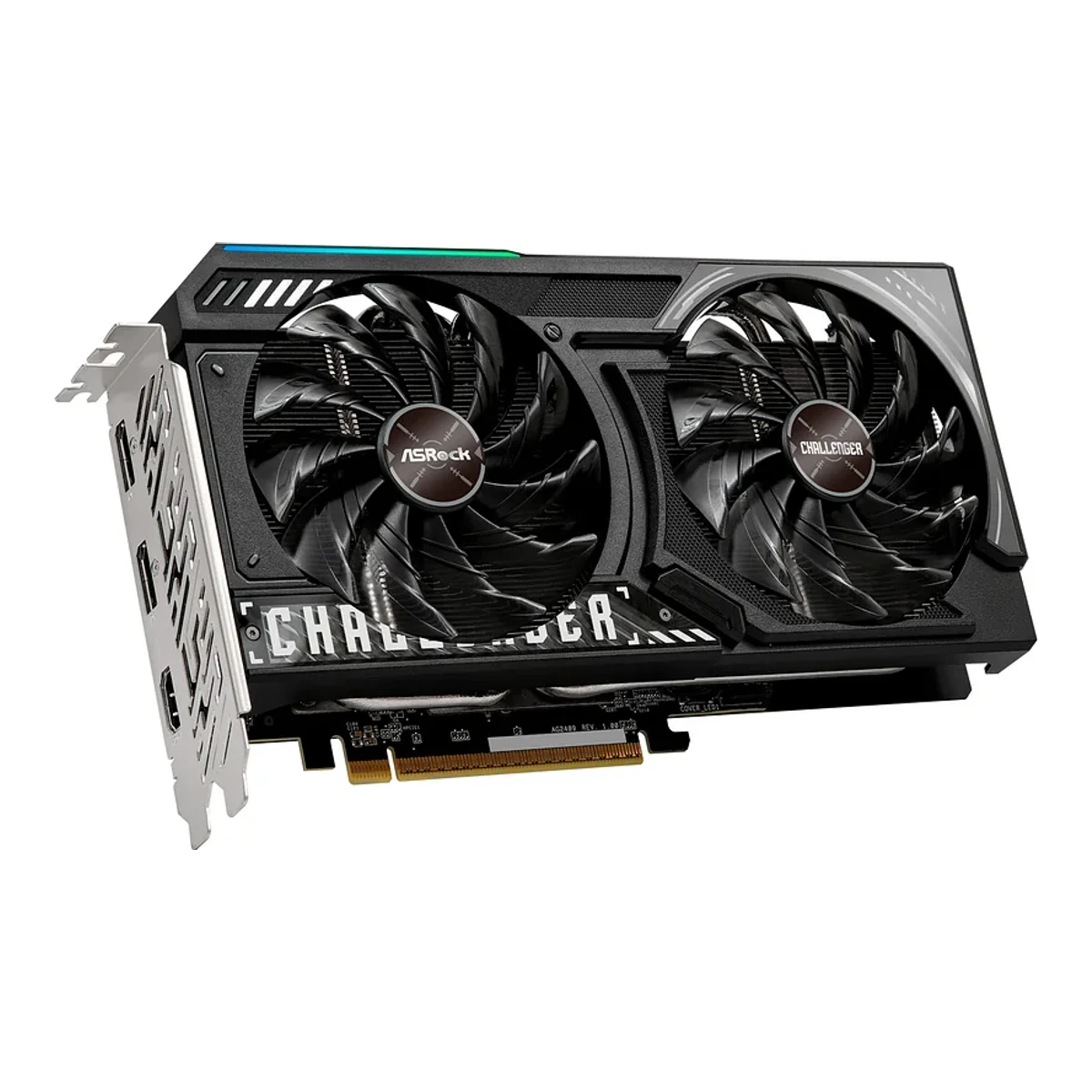

Radeon RX 9060 XT Challenger 16GB OC
Released June 2025.2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026AMD's RX 9060 XT cards were expected on shelves on 2025-06-05. LanOC published its review of this card on 2025-06-04. Last checked 16 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 249mm
- Board power
- 160W
67 of 100 fields known.
At a glance
Boost clock
3,290MHz2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The Challenger 16GB OC and 8GB OC offer boost clock speeds of up to 3,290 MHz.3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Boost clock up to 3290 MHz.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Boost Clock: 3290 MHz.6Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-rx9060xt-cl-16go-16gb-ddr6-hdmi2xdp-1477804Read 16 October 2026The spec text lists 3290 MHz.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Boost clock up to 3290 MHz, 160 MHz over the stock boost clock.
Higher than 94% of other graphics cards.
Reference boost clock
Higher than 92% of other graphics cards.
PSU wattage
550W3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Minimum system power supply 550 W. AMD's own figure for the GPU is 450 W.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Need power supply 550 W. The page also prints a power consumption of about 160 W. That is a retail feed row and is not stored as board power.
Lower than 77% of other graphics cards. Lower is better.
Game clock
2,700MHz4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Game Clock: 2700 MHz. Arvutitark's copy of ASRock's spec text lists it as Clock Speed 2700 and LanOC repeats it.6Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-rx9060xt-cl-16go-16gb-ddr6-hdmi2xdp-1477804Read 16 October 2026Copy of ASRock's spec text: Clock Speed 2700 and 3290 MHz.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Game clock 2700 MHz, 170 MHz over the stock clock. GPU-Z did not read the clocks at test time.
Higher than 77% of other graphics cards.
Thickness
41mm3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 202641 mm, the shortest side.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026
Lower than 76% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Series
- Challenger2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The card is the Challenger model. The Steel Legend is the premium sibling.5Retailer pagedigit.in/pc-components/asrock-amd-radeon-rx-9060-xt-challenger-oc-16-gb-gddr6-graphics-card.htmlRead 16 October 2026Series: Challenger OC.
- Model numbers
- RX9060XT CL 16GO, 90-GA5QZZ-00UANF3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Product number manufacturer RX9060XT CL 16GO.6Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-rx9060xt-cl-16go-16gb-ddr6-hdmi2xdp-1477804Read 16 October 2026Product code 90-GA5QZZ-00UANF.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The Challenger sports an all-black design with a dual-fan setup.3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Colour of product: Black.
GPU
- GPU architecture
- RDNA 49Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 16 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- Process
- TSMC N4P11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 16 October 2026Text: produced on TSMC's N4P node. AMD names no node. Igor's Lab also writes TSMC N4P.12Reviewigorslab.de/asrock-steel-legend-radeon-rx-9060xt-16-gb-im-test-weisse-unschuld-vom-lande-von-wegenRead 16 October 2026Spec table: TSMC N4P.
- Transistors
- 29.7billion8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Transistor Count: 29.7 B.10Reviewkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Spec table: 29.7 billion.
- Die size
- 199mm²10Reviewkitguru.net/components/graphic-cards/dominic-moass/rx-9060-xt-roundup-asrock-powercolor-and-sapphire-testedRead 16 October 2026Spec table: 199 mm2.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 16 October 2026Text: a die size of approximately 199 mm square.
- Shader cores
- 2,0483Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Stream Processors: 2048.
- Ray tracing cores
- 328Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Ray Accelerators: 32.
- Infinity Cache (L3)
- 32MB8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026AMD Infinity Cache Technology: 32 MB.11Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 16 October 202632 MB of L3 cache, the same figure as AMD's Infinity Cache row.
- FP32 compute (claimed)
- 25.6TFLOPS8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- Not available
- Game clock
- 2,700MHz4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Game Clock: 2700 MHz. Arvutitark's copy of ASRock's spec text lists it as Clock Speed 2700 and LanOC repeats it.6Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-rx9060xt-cl-16go-16gb-ddr6-hdmi2xdp-1477804Read 16 October 2026Copy of ASRock's spec text: Clock Speed 2700 and 3290 MHz.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Game clock 2700 MHz, 170 MHz over the stock clock. GPU-Z did not read the clocks at test time.
- Boost clock
- 3,290MHz2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The Challenger 16GB OC and 8GB OC offer boost clock speeds of up to 3,290 MHz.3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Boost clock up to 3290 MHz.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Boost Clock: 3290 MHz.6Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/asrock-rx9060xt-cl-16go-16gb-ddr6-hdmi2xdp-1477804Read 16 October 2026The spec text lists 3290 MHz.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Boost clock up to 3290 MHz, 160 MHz over the stock boost clock.
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 16GB3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Max memory size 16 GB.
- VRAM type
- GDDR63Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026
- Memory bus width
- 128bits3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Memory Interface: 128-bit.
- Memory speed
- 20Gbps4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Memory speed 20 Gbps.8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Memory Speed: up to 20 Gbps.
Connectivity
- PCIe generation
- 53Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Bus Type: PCIe 5.0 x16.
- PCIe lanes
- 163Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 20268Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1a UHBR13.5 2 54 Source3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Connectivity table: DisplayPort version 2.1a, 2 DisplayPorts, HDMI version 2.1b, 1 HDMI port. AMD's page lists the same versions. The UHBR class is from the Igor's Lab source.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026HDMI version 2.1b x 1 and DisplayPort version 2.1a x 2.5Retailer pagedigit.in/pc-components/asrock-amd-radeon-rx-9060-xt-challenger-oc-16-gb-gddr6-graphics-card.htmlRead 16 October 20262 x DisplayPort 2.1a and HDMI.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Two DisplayPort and one HDMI connection.8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Connectivity: DisplayPort 2.1a and HDMI 2.1b.12Reviewigorslab.de/asrock-steel-legend-radeon-rx-9060xt-16-gb-im-test-weisse-unschuld-vom-lande-von-wegenRead 16 October 2026Page 1 spec table for the RX 9060 XT 16GB: HDMI 2.1b and DP 2.1a (UHBR13.5). It is a GPU-level class list, so it covers every DisplayPort output of this GPU. UHBR13.5 is 54 Gbps. ASRock and AMD name no class.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max output resolution
- 7680 × 4320px3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Maximum resolution 7680 x 4320 pixels. No refresh rate is stated for this card.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), AV18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is not listed.
Graphics features
- DirectX
- 12 Ultimate3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 20264Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026
- Upscaling technologies
- FSR 42Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026ASRock's launch text for the RX 9060 XT series names FidelityFX Super Resolution (FSR) 4.9Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 16 October 2026The cards deliver 1440p gaming with FSR 4 ML-enhanced upscaling.
Power
- Board power
- Not available
- Reference board power
- 160W8Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 16 October 2026Typical Board Power (Desktop): 160 W. Minimum PSU Recommendation 450 W.
- PSU wattage (card maker)
- 550W3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Minimum system power supply 550 W. AMD's own figure for the GPU is 450 W.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Need power supply 550 W. The page also prints a power consumption of about 160 W. That is a retail feed row and is not stored as board power.
- Power connector
- 1 x 8-pin PCIe3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Supplementary power connectors 1x 8-pin.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Power connectors 1 x 8 pin.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026A single 8-pin PCIe power connection.
Cooling
- Cooler type
- Open air2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026A newly developed dual-fan cooler with Striped Axial Fans and Ultra-fit Heatpipes.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Dual-fan design, metal backplate, Ultra-fit heatpipes.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Two Striped Axial Fans over a horizontal aluminium heatsink with heatpipes. The right fan blows through. The review measured the card at 245 mm long, while ASRock's spec says 249 mm. The maker's 249 mm is stored.
- Fans
- 22Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026Dual-fan cooler.3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Number of fans 2.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026A dual fan card.
- Radiator size
- Not available
- Fan stop at low load
- Yes4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Key feature 0dB Silent Cooling: fans spin when the temperature rises and stop when it falls.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026The fans spin down and turn completely off under light workloads.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 249mm3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Length 249 mm. The feed labels the other two sides Depth 132 mm and Height 41 mm, which the text gives as 249 x 132 x 41 mm. The card height is 132 mm and the thickness is 41 mm.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Length 249 mm, width 132 mm and height 41 mm.
- Height
- 132mm3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026132 mm, the middle value of 249 x 132 x 41 mm.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026
- Thickness
- 41mm3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 202641 mm, the shortest side.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026
- Slot width
- Not available
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- 645g(1.4 lb)3Retailer pageparadigit.ie/asrock-radeon-rx-9060-xt-challenger-16gb-oc/21862554/productRead 16 October 2026Weight 645 g. The text says the card has a weight of 645 grams. Digit.in prints the same figure.5Retailer pagedigit.in/pc-components/asrock-amd-radeon-rx-9060-xt-challenger-oc-16-gb-gddr6-graphics-card.htmlRead 16 October 2026Weight 645 g.
- Package weight
- Not available
Lighting and software
- RGB lighting
- Yes2Press articlethepcenthusiast.com/asrock-releases-radeon-rx-9060-xt-steel-legend-and-challenger-graphics-cardsRead 16 October 2026The Challenger has a built-in LED indicator. The series text also mentions customizable ARGB lighting with Polychrome SYNC, which the article ties to the Steel Legend. See the LanOC source for this card's light bar.4Retailer pagejib.co.th/web/product/readProduct/77425/3009/VGA--%E0%B8%81%E0%B8%B2%E0%B8%A3%E0%B9%8C%E0%B8%94%E0%B9%81%E0%B8%AA%E0%B8%94%E0%B8%87%E0%B8%9C%E0%B8%A5--ASROCK-AMD-RADEON-RX-9060-XT-CHALLENGER-16GB-OC---16GB-GDDR6--RX9060XT-CL-16GO-Read 16 October 2026Key features: an LED indicator with a switch that turns the light on or off.7Measurementlanoc.org/review/video-cards/asrock-rx-9060-xt-challenger-oc-16gbRead 16 October 2026Text: a light diffuser for the RGB lighting behind the ASRock logo on top, a single diffused light bar above the left fan.
- Lighting sync
- Not available
- Software
- Not available
Measured performance
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Port Royal
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Average FPS Cyberpunk 2077 3840 2160 Ultra Off 32 Cyberpunk 2077 3840 2160 Ultra FSR 63 Cyberpunk 2077 2560 1440 Ultra Off 74 Cyberpunk 2077 2560 1440 Ultra FSR 115 Cyberpunk 2077 1920 1080 Ultra Off 117 Cyberpunk 2077 1920 1080 Ultra FSR 191
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
Links
- Product page
- www.asrock.com/Graphics-Card/AMD/Radeon%20RX%209060%20XT%20Challenger%2016GB%20OC1Maker product pageasrock.com/Graphics-Card/AMD/Radeon%20RX%209060%20XT%20Challenger%2016GB%20OCRead 16 October 2026ASRock product page from the task's evidence link. asrock.com answers agents with a bot check, so the page was not read. ASRock's spec text below comes from its launch announcement and from retailer copies of its spec table.
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
