PC parts / Graphics cards
ASUSGraphics card

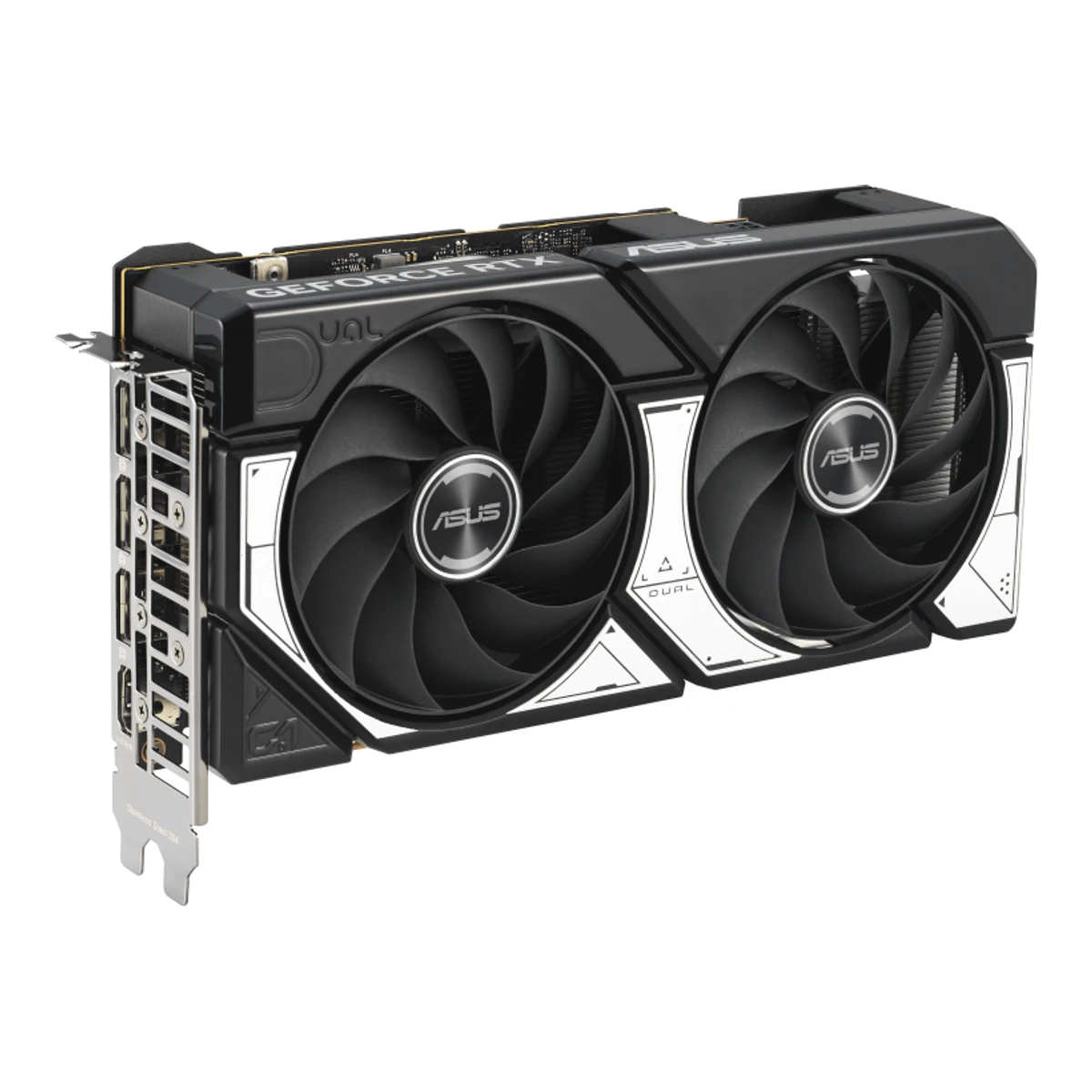

Dual GeForce RTX 5060 8GB GDDR7 OC Edition
Released May 2025.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026The data sheet publication date is 2025-04-29. NVIDIA put the RTX 5060 on sale from May 2025. Last checked 14 October 2026.
- GPU
- NVIDIA GeForce RTX 5060
- VRAM
- 8GB
- Length
- 228mm
- Board power
- 145W
81 of 100 fields known.
At a glance
PSU wattage
550W1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Recommended PSU 550 W, based on a fully overclocked GPU and CPU system. NVIDIA also states 550 W required system power for the chip.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Minimum system power supply 550 W.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Required system power 550 W for the chip, which matches the ASUS figure.
Lower than 77% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- DUAL-RTX5060-O8G, 90YV0N12-M0NA00, 90YV0N12-MVAA001Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Model DUAL-RTX5060-O8G.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Product code 90YV0N12-M0NA00 for DUAL-RTX5060-O8G.6Retailer pageamazon.com/dp/B0F8PR9L3XRead 14 October 2026Model Number and Mfr Part Number DUAL-RTX5060-O8G.7Retailer pagemarketplace.nvidia.com/en-us/consumer/graphics-cards/asus-dual-geforce-rtx-5060-8gb-gddr7-oc-editionRead 14 October 2026NVIDIA's marketplace lists 90YV0N12-MVAA00 as the MPN of this card. Read through a web search excerpt because the page timed out.
- GTIN / EAN
- 4711636057899, 1992910579064Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026EAN 4711636057899 is printed on the data sheet. The 2026 revision of the same sheet at centrale.cl adds UPC 199291057906.5Spec databasecentrale.cl/wp-content/uploads/Ficha-tecnica-Asus-DUAL-RTX5060-O8G.pdfRead 14 October 2026EAN 4711636057899 and UPC 199291057906, revision published 2026-06-13.6Retailer pageamazon.com/dp/B0F8PR9L3XRead 14 October 2026UPC 199291057906.
- Announced
- Not available
- Status
- Available2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026Product page is live with a Where to buy link on 2026-10-14.6Retailer pageamazon.com/dp/B0F8PR9L3XRead 14 October 2026Listed as in stock on 2026-10-14. Best Sellers Rank #9 in Computer Graphics Cards.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, Grey4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Product colour: Black, Grey.
- GPU
- NVIDIA GeForce RTX 50601Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
- GPU brand
- NVIDIA1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
- Reference launch price (US)
- $29911Press releaseinvestor.nvidia.com/news/press-release-details/2025/NVIDIA-Blackwell-GeForce-RTX-Arrives-for-Every-Gamer-Starting-at-299/default.aspxRead 14 October 2026Dated 2025-04-15: GeForce RTX 5060 graphics cards will be available starting in May at $299. The release does not say whether tax is included.13Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: starting price of 299 USD.15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Spec table: starting recommended price $299.
GPU
- GPU architecture
- Blackwell8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVIDIA Architecture: Blackwell.
- GPU die
- GB20613Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: GB206-250. The text says the RTX 5060 uses the same GB206 silicon as the RTX 5060 Ti.17Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Review of the RTX 5060 Ti, which uses the full GB206 die. Guru3D states the RTX 5060 uses the same die.
- Process
- TSMC 4N16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: TSMC 4nm 4N NVIDIA Custom.17Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: TSMC N4 (4nm). NVIDIA names its Blackwell node 4N, so the value is written as TSMC 4N like the other Blackwell cards.
- Transistors
- 21.9billion15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Text: 21.9 billion transistors on GB206.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 21.9 billion.17Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: 21.9bn. A cut-down GPU keeps the full count of its die.
- Die size
- 181mm²15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Text: die area of 181 mm2.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 181 mm2.17Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: 181 mm2.
- Compute units
- 3013Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: six of the 36 streaming multiprocessors of GB206 are disabled, which leaves 30.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 30 SMs.
- Shader cores
- 3,8401Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026CUDA Core 3840.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 column: NVIDIA CUDA cores 3840.13Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: 3840 CUDA cores.
- Ray tracing cores
- 3013Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: 30 RT cores.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 30 RT cores.
- AI cores
- 12013Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: 120 Tensor cores.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 120 Tensor cores.
- ROPs
- 4813Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: 48 ROPs.15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Spec table: 48 rasterizers.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: 48 ROPs.
- L2 cache
- 32MB15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Text: the L2 cache stays at 32 MB, the same as the RTX 5060 Ti. Geeknetic's spec table says 32000 KB. itc.ua's launch table says 24 MB, which no review with the card confirms.16Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table: L2 Cache Size 32000 KB.
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 19.2TFLOPS15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Text: theoretical FP32 performance of 19.2 TFLOPS at the reference clocks. Review of a different ASUS card on the same GPU.
- AI performance (claimed)
- Not available
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock
- 2,535MHz1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Engine Clock: Default mode 2535 MHz (Boost Clock).4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Processor boost clock speed 2535 MHz.
- Boost clock in OC mode
- 2,565MHz1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Engine Clock: OC mode 2565 MHz.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Processor frequency (OC mode) 2565 MHz.
- Reference boost clock
- 2,497MHz8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVIDIA lists boost 2.50 GHz. Reviewers give the exact 2497 MHz.15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Spec table and text: GPU clocks 2280/2497 MHz for the reference design.
Memory
- VRAM
- 8GB1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Video Memory 8GB GDDR7. Memory Speed 28 Gbps. Memory Interface 128-bit.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026RTX 5060 column: standard memory config 8 GB GDDR7.13Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026
- VRAM type
- GDDR71Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
- Memory bus width
- 128bits1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Memory interface width 128-bit.13Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026
Connectivity
- PCIe generation
- 51Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026PCI Express Gen 5.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Native HDMI 2.1b x 1 and native DisplayPort 2.1b x 3. The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5060 page, which states DisplayPort 2.1b with UHBR20 for the GPU.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. Three DisplayPort and one HDMI.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 41Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Maximum Display Support: 4.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Up to 4 independent displays at 4K 165 Hz.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026ASUS states a digital maximum of 7680 x 4320. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Maximum digital resolution: 4K at 480 Hz or 8K at 165 Hz with DSC.
- HDCP version
- 2.31Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026HDCP Support Yes (2.3).4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026HDCP version 2.3.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026HDCP 2.3.
Video engine
- Video encoders
- 18Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 20261 x ninth-generation NVENC.
- Video decoders
- 18Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 20261 x sixth-generation NVDEC.
- Hardware video encode
- H.264, H.265 (HEVC), AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 row: H.264, H.265 (HEVC) and AV1 encode are marked YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5060 row: H.264, H.265, VP9 and AV1 decode are marked YES.
Graphics features
- DirectX
- 12 Ultimate8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Microsoft DirectX 12 Ultimate.
- Vulkan
- 1.48Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 202610Maker product pagedeveloper.nvidia.com/vulkan-driverRead 14 October 2026NVIDIA lists the GeForce RTX 5060 under full Vulkan 1.4 support.
- OpenGL
- 4.61Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 20268Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Vulkan 1.4, OpenGL 4.6.
- Upscaling technologies
- DLSS 48Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Spec table lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 145W8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Total Graphics Power 145 W for the RTX 5060.13Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: TGP 145 W.15Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Spec table: TGP 145 W.
- PSU wattage (card maker)
- 550W1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Recommended PSU 550 W, based on a fully overclocked GPU and CPU system. NVIDIA also states 550 W required system power for the chip.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Minimum system power supply 550 W.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Required system power 550 W for the chip, which matches the ASUS figure.
- Power connector
- 1 x 8-pin PCIe1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Power Connectors: 1 x 8-pin.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Supplementary power connectors: 1x 8-pin.8Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Supplementary power: 1x PCIe 8-pin cable or a 300 W PCIe Gen 5 cable (adapter in box).
Cooling
- Cooler type
- Open air2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026Two Axial-tech fans blow onto the heatsink.
- Fans
- 22Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026Page text: two Axial-tech fans.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Number of fans: 2.
- Radiator size
- Not available
- Fan stop at low load
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 20260dB Technology: the stop mode halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.6Retailer pageamazon.com/dp/B0F8PR9L3XRead 14 October 2026The ASUS text on the listing says the fans stop below 50 C and restart above 55 C.
Dimensions and weight
- Slot width
- 2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Slot: 2.5 Slot.2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026Page text: 2.5-slot design.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Number of slots: 2.5.
- Low profile
- No4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Form factor on the 2026 revision: Full-Height/Half-Length (FH/HL). So the card has a full-height bracket.5Spec databasecentrale.cl/wp-content/uploads/Ficha-tecnica-Asus-DUAL-RTX5060-O8G.pdfRead 14 October 2026Factor de forma: Full-Height/Half-Length (FH/HL).
- NVIDIA SFF-Ready
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026Page text calls it an SFF-Ready Enthusiast GeForce card, and the maker data sheet marks SFF ready. NVIDIA's own SFF-Ready page was last updated in January 2025, before the RTX 5060 launched. It does not list RTX 5060 cards and describes the program as RTX 70-class or higher. The value is the maker claim.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026SFF ready: yes.5Spec databasecentrale.cl/wp-content/uploads/Ficha-tecnica-Asus-DUAL-RTX5060-O8G.pdfRead 14 October 2026SFF ready: yes.
- Weight
- 647g(1.4 lb)4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/f130e992/68114a5f450791419e1898d6/product-pdfRead 14 October 2026Data sheet for product code 90YV0N12-M0NA00, published 2025-04-29: weight 647 g. Hardware & Co weighed 639 g. The maker data sheet wins.5Spec databasecentrale.cl/wp-content/uploads/Ficha-tecnica-Asus-DUAL-RTX5060-O8G.pdfRead 14 October 2026Peso 647 g in the 2026 revision, unchanged.
Lighting and software
- Lighting sync
- Not available
- Software
- ASUS GPU Tweak III1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Software row: ASUS GPU Tweak III and MuseTree.2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026GPU Tweak III is described as the tuning utility for core clocks, memory and fans.
Measured performance
- GPU clock while gaming (measured)
- 2,685MHz18Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5060-custom-asus-rtx-5060-dual-ocRead 14 October 2026Page 5: 20-minute GPU-Z log in A Plague Tale: Requiem, 1920 x 1080 Ultra, Performance BIOS, open bench. The clock starts at 2865 MHz and settles at about 2685 MHz from the 200th second. Quiet BIOS settles at about 2677 MHz. Driver 576.66.
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS 1 % low FPS A Plague Tale: Requiem 1920 1080 Ultra Off No 97.5 67.9 Cyberpunk 2077 1920 1080 Ultra Off No 109.1 83.5 STALKER 2: Heart of Chornobyl 1920 1080 Ultra Off No 53.2 36.3
Measured noise and temperature
- Fan noise per load
Profile Load Distance (cm) Noise (dB(A)) Performance BIOS Gaming 15 35 Quiet BIOS Gaming 15 32 - Fan noise while gaming
- 35dB(A)
- Hot spot temperature while gaming
- Not available
Measured power
- GPU power while gaming (measured)
- 151.3W18Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5060-custom-asus-rtx-5060-dual-ocRead 14 October 2026Page 3: PCAT reading of the card alone in A Plague Tale: Requiem, FHD max details, Performance BIOS, 151.3 W. Cyberpunk 2077 gave 150.7 W and STALKER 2 gave 138.9 W. The page does not say whether the figure is an average.
In the box
- In the box
- 1 x Speedsetup Manual, 1 x Thank You Card1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026Accessories list on the spec page, verbatim.
Links
- Product page
- www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8gRead 14 October 2026
- Spec sheet
- www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspec1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/techspecRead 14 October 2026
- Manual
- www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/helpdesk_manual3Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/helpdesk_manualRead 14 October 2026ASUS support page with the graphics card quick start guide, the recommended PSU table and the warranty card.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 3years6Retailer pageamazon.com/dp/B0F8PR9L3XRead 14 October 2026Warranty Description: 3 Year Warranty on the US listing. Warranty length differs by region.
