PC parts / Graphics cards

ASUSGraphics card

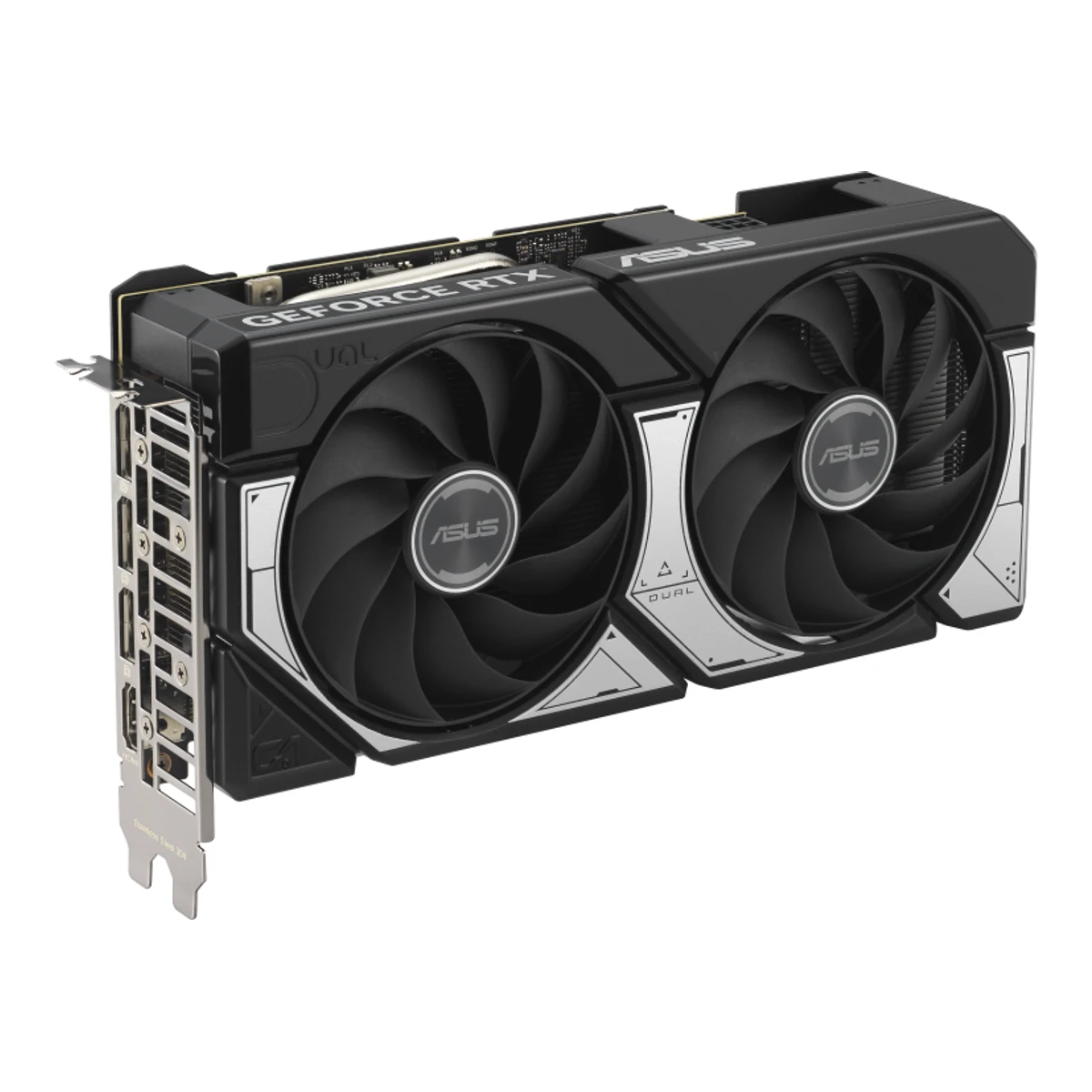

Dual GeForce RTX 5060 Ti 16GB GDDR7 OC Edition

Released April 2025.4 Last checked 16 October 2026.

GPU: NVIDIA GeForce RTX 5060 Ti
VRAM: 16GB
Length: 229mm
Board power: 180W

68 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

PSU wattage
550W1 4
Lower than 77% of other graphics cards. Lower is better.

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: Dual2
Model numbers: DUAL-RTX5060TI-O16G, 90YV0MH0-M0NA001 4
GTIN / EAN: 47113879943064
Announced: Not available
Status: Available2 5
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black, Grey4 5
GPU: NVIDIA GeForce RTX 5060 Ti1 6
GPU brand: NVIDIA1 6
Reference launch price (US): $4299 10 11

GPU

GPU architecture: Blackwell6
GPU die: GB2069 10
Process: TSMC 4N9 10
Transistors: 21.9billion9 10
Die size: 181mm²9 10
Compute units: 369
Shader cores: 4,6081 6 9
Ray tracing cores: 369
AI cores: 1449
ROPs: 489 10 11
L2 cache: 32MB10
Infinity Cache (L3): Not available
FP32 compute (claimed): Not available
AI performance (claimed): Not available

Clocks

Base clock: Not available
Game clock: Not available
Boost clock: 2,602MHz1 4
Boost clock in OC mode: 2,632MHz1 4
Reference boost clock: 2,572MHz9 10

Memory

VRAM: 16GB1 6
VRAM type: GDDR71 6
Memory bus width: 128bits1 6
Memory speed: 28Gbps1 9
Memory bandwidth: 448GB/s9 10

Connectivity

PCIe generation: 51 6
PCIe lanes: 810
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source1 6
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 41 6
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz1 6
HDCP version: 2.31 4 6

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1b UHBR20	3	80

Video engine

Video encoders: 16
Video decoders: 16
Hardware video encode: H.264, H.265 (HEVC), AV17
Hardware video decode: H.264, H.265 (HEVC), VP9, AV17

Graphics features

DirectX: 12 Ultimate6
Vulkan: 1.46 8
OpenGL: 4.61 6
Upscaling technologies: DLSS 46
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation6

Power

Board power: Not available
Reference board power: 180W6 9
PSU wattage (card maker): 550W1 4
Power connector: 1 x 8-pin PCIe1 4

Cooling

Cooler type: Open air2
Fans: 22 4
Radiator size: Not available
Fan stop at low load: Yes2
Dual BIOS: Yes2

Dimensions and weight

Length: 229mm1
Height: 120mm1
Thickness: 50mm1
Slot width: 2.5slots1 2 4
Low profile: Not available
NVIDIA SFF-Ready: Not available
Weight: 656g(1.4 lb)4 5
Package weight: 1,120g(2.5 lb)4

Lighting and software

RGB lighting: Not available
Lighting sync: Not available
Software: ASUS GPU Tweak III1 2

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: 1 x Speedsetup Manual, 1 x Thank You Card1
Power adapter cable included: No1
Support bracket included: No1

Warranty

We could not find any of these 1 fields. Show them

Manufacturer warranty (source market): Not available
