PC parts / Graphics cards

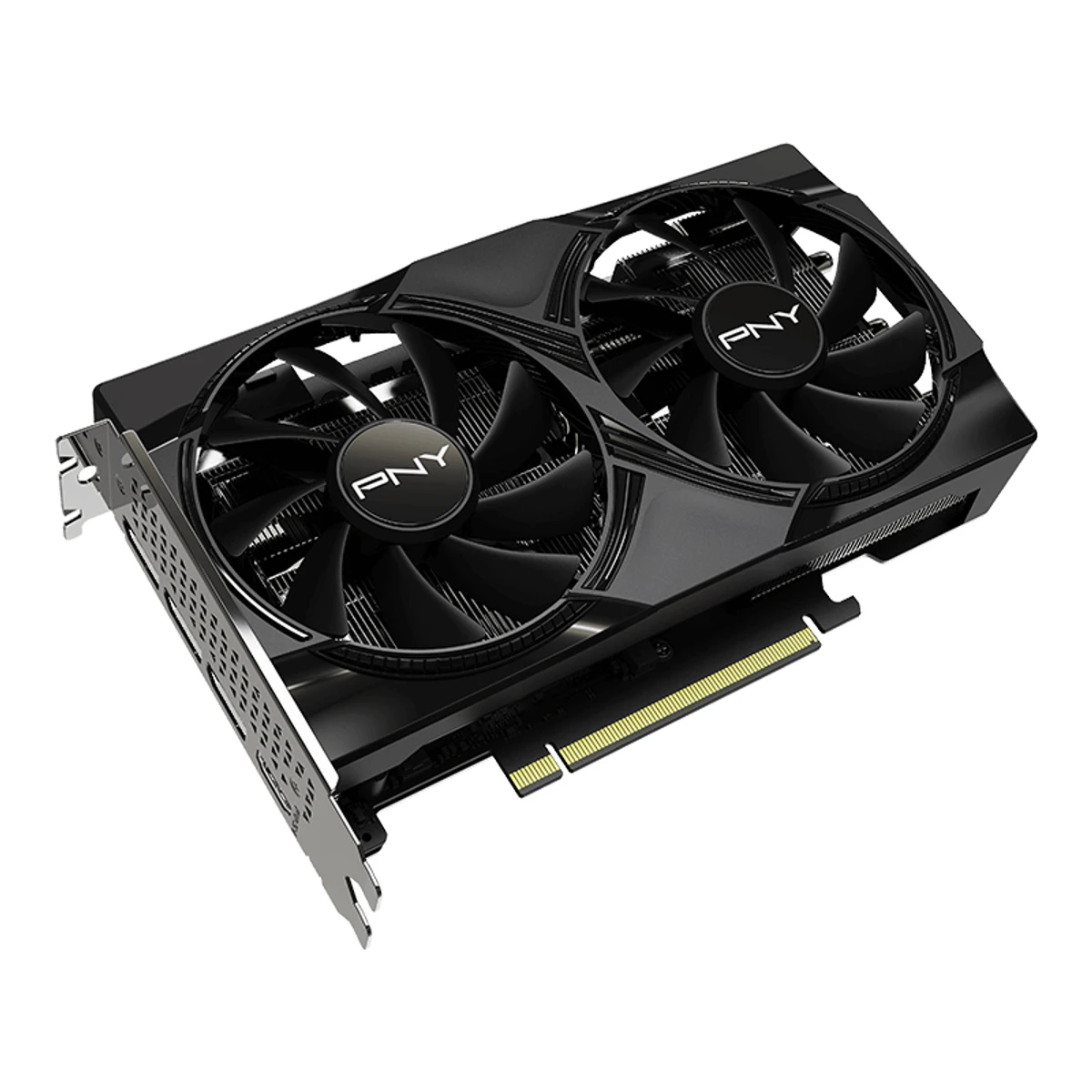

PNY GeForce RTX 5060 8GB Overclocked Dual Fan
GPU
NVIDIA GeForce RTX 5060
VRAM
8GB
Length
200mm
Board power
145W

67 of 100 fields known.

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Model numbers
VCG50608DFXPB1-O1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026PNY Part Number and SKU: VCG50608DFXPB1-O.
Announced
Not available
Predecessor
Not available
Successor
Not available
Launch price (EU)
Not available
Markets
Not available
GPU
NVIDIA GeForce RTX 50605Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026
Reference launch price (US)
$2996Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-arrives-for-every-gamer-starting-at-299Read 14 October 2026Dated 2025-04-15: GeForce RTX 5060 graphics cards will be available starting in May at $299. PNY is named among the card makers.

GPU

GPU die
GB2069Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Spec table: GB206-250. The text says the RTX 5060 uses the same GB206 silicon as the RTX 5060 Ti.
Process
TSMC 4N10Reviewgeeknetic.es/Review/3215/ASUS-GEFORCE-PRIME-RTX-5060-OC-8G-Review.htmlRead 14 October 2026Spec table of an ASUS card on the same GPU: TSMC 4nm 4N NVIDIA Custom. NVIDIA names no process on the GeForce page.11Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correctionRead 14 October 2026Spec table for GB206: TSMC N4 (4nm).
Ray tracing cores
309Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: 30 RT cores.
AI cores
1209Reviewguru3d.com/review/geforce-rtx-5060-8gb-reviewRead 14 October 2026Text: 120 Tensor cores.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
19.2TFLOPS12Reviewmezha.media/en/reviews/oglyad-videokarti-asus-prime-geforce-rtx-5060-8gb-oc-302350Read 14 October 2026Text: theoretical FP32 performance of 19.2 TFLOPS at the reference clocks. Review of a different ASUS card on the same GPU.
AI performance (claimed)
Not available

Clocks

Base clock
2,280MHz1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Spec table: Clock Speed 2280 MHz. The PNY linecard lists the same value as base clock for this part number.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 20263Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Same row: base clock 2280 MHz.
Game clock
Not available
Boost clock
2,535MHz1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Spec table: Boost Speed 2535 MHz. The brochure and the linecard agree. A duplicate spec block in the page source shows 2.41 GHz, which is the RTX 5060 Ti base clock and is not used. PNY states no second OC mode.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 2026Product specifications: Boost Speed 2535 MHz.3Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Same row: boost clock 2535 MHz.
Boost clock in OC mode
Not available

Memory

Connectivity

Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Resolution: 4K at 480Hz or 8K at 165Hz with DSC. Footnote: up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC, and at 120Hz with HDMI 2.1b + DSC. The 165 Hz value is for DisplayPort.5Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Footnote 1: up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC.

Video engine

Video encoders
15Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVENC: 1x Ninth Generation.7Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026NVENC row: 1.

Graphics features

Upscaling technologies
DLSS 45Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026NVIDIA DLSS: DLSS 4 with Super Resolution, DLAA and Ray Reconstruction. PNY's product page names DLSS 4.5 in its marketing text. NVIDIA's spec table still says DLSS 4, which is stored.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation5Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.

Power

Board power
145W1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026TDP 145 W, and under System Requirements Total graphics power 145 W.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 2026Product specifications: TDP 145 W.
Reference board power
145W5Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Total Graphics Power 145 W.
PSU wattage (card maker)
550W1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Required system power 550W, with a note that it can differ by system configuration. NVIDIA states 550 W for the chip.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 2026550 W or greater system power supply.5Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-familyRead 14 October 2026Required System Power 550 W for the chip. Minimum is based on a Ryzen 9 9950X system.

Cooling

Cooler type
Open air1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Two axial fans over a heatsink. The brochure calls it dual fan cooling.
Radiator size
Not available
Fan stop at low load
Not available
Dual BIOS
Not available

Dimensions and weight

Length
200mm1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Card Dimensions: 200 x 120 x 39.8 mm. The page does not say whether the bracket or the power plug is included.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 2026Card Dimensions 200 x 120 x 39.8mm, 2 Slot.15Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/rtx-5060-8gb-pny-oc-dual-fan-gddr7-1473701Read 14 October 2026Listing for VCG50608DFXPB1-O: 200 x 120 x 39.8 mm, the same as PNY.
Height
120mm1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Middle value of 200 x 120 x 39.8 mm.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 202615Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/rtx-5060-8gb-pny-oc-dual-fan-gddr7-1473701Read 14 October 2026
Thickness
39.8mm1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Last value of 200 x 120 x 39.8 mm.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 202615Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/rtx-5060-8gb-pny-oc-dual-fan-gddr7-1473701Read 14 October 2026
Slot width
2slots1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 2026Card Dimensions line ends with 2 Slot.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-8gb-dual-fan-oc-brochure.pdfRead 14 October 20263Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Same row: 2 Slot.
Low profile
No3Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Linecard dated 2026-08-31. The row for GeForce RTX 5060 8GB Overclocked Dual Fan, VCG50608DFXPB1-O, lists 2 Slot and Full Height.
NVIDIA SFF-Ready
Not available
Weight
Not available
Package weight
Not available

Lighting and software

We could not find any of these 3 fields. Show them
RGB lighting
Not available
Lighting sync
Not available
Software
Not available

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

Power adapter cable included
Not available

Warranty

Manufacturer warranty (source market)
3years1Maker product pagepny.com/geforce-rtx-5060-8gb-modelsRead 14 October 20263-Year Limited Warranty on the US page.

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 16 sources for this graphics card. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 31 fields
  2. Read 14 October 2026Backs 18 fields
  3. Read 14 October 2026Backs 5 fields
  4. Read 14 October 2026Backs 1 field
  5. Read 14 October 2026Backs 26 fields
  6. Read 14 October 2026Backs 1 field
  7. Read 14 October 2026Backs 4 fields
  8. Read 14 October 2026Backs 1 field
  9. Read 14 October 2026Backs 7 fields
  10. Read 14 October 2026Backs 5 fields
  11. Read 14 October 2026Backs 3 fields
  12. Read 14 October 2026Backs 3 fields
  13. Read 14 October 2026Backs 2 fields
  14. Read 14 October 2026Backs 2 fields
  15. Read 14 October 2026Backs 3 fields
  16. Read 14 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
