PC parts / Graphics cards
ASUSGraphics card

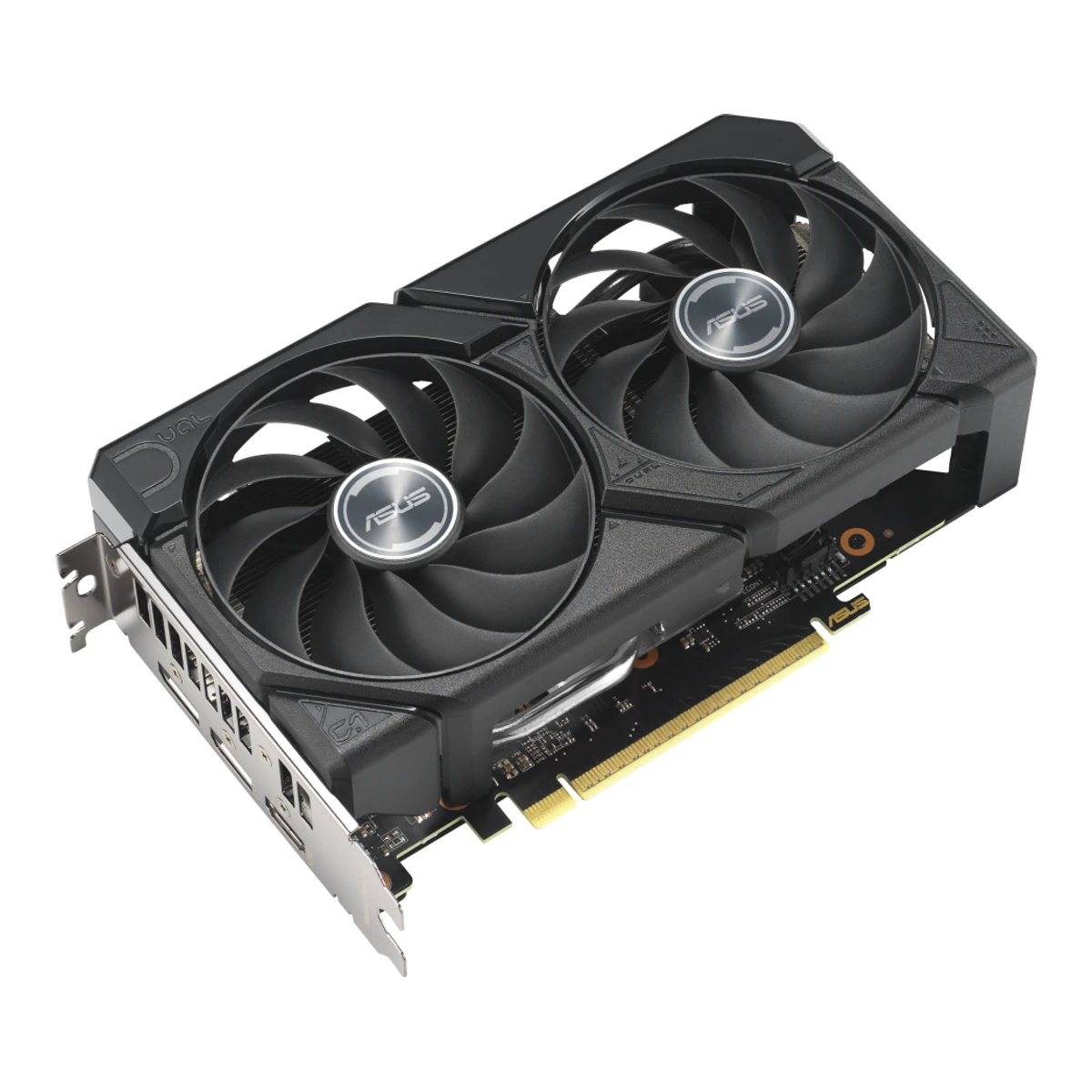

Dual Radeon RX 9060 XT 16GB GDDR6
Released August 2025.10Press articlekakaku.com/item/K0001707620/specRead 14 October 2026Kakaku.com new product news dated 2025-09-01: ASUS Japan announced DUAL-RX9060XT-16G, on sale since 2025-08-29. Japan evidence. The spec page also shows release date 2025-08-29. ASUS's OC card DUAL-RX9060XT-O16G launched earlier in 2025. Last checked 14 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 202mm
- Board power
- 160W
69 of 100 fields known.
At a glance
OC mode boost
Higher than 97% of other graphics cards.
Boost clock
Higher than 92% of other graphics cards.
Reference boost clock
Higher than 92% of other graphics cards.
PSU wattage
Lower than 77% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a UHBR13.5
General
- Model numbers
- DUAL-RX9060XT-16G, 90YV0LG2-MVAA00, 90YV0LG2-M0NA00, DUAL-RX9060XT-16G-WHITE, 90YV0LG3-M0NA002Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Model: DUAL-RX9060XT-16G.5Maker product pageeshop.asus.com/us/90yv0lg2-mvaa00-asus-dual-radeontm-rx-9060-xt-16gb-gddr6.htmlRead 14 October 2026Product Name DUAL-RX9060XT-16G, Part Number 90YV0LG2-MVAA00, the US part number.6Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g-white/techspecRead 14 October 2026Model: DUAL-RX9060XT-16G-WHITE.7Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg2-m0na00.pdfRead 14 October 2026Product code 90YV0LG2-M0NA00 for DUAL-RX9060XT-16G, an EU part number.8Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg3-m0na00.pdfRead 14 October 2026Product code 90YV0LG3-M0NA00 for DUAL-RX9060XT-16G-WHITE, an EU part number.9Retailer pageparadigit.ie/asus-dual-amd-radeon-rx-9060-xt-16-gb/21825925/productRead 14 October 2026Product number manufacturer 90YV0LG2-M0NA00.
- GTIN / EAN
- 4711636196765, 199291196766, 4711636203005, 1992912030067Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg2-m0na00.pdfRead 14 October 2026Distributor data sheet for product code 90YV0LG2-M0NA00, published 2026-02-06: EAN 4711636196765 and UPC 199291196766.8Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg3-m0na00.pdfRead 14 October 2026Distributor data sheet for product code 90YV0LG3-M0NA00, published 2026-02-06: EAN 4711636203005 and UPC 199291203006.
- Announced
- Not available
- Status
- Available1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026The page is live on 2026-10-14. No end-of-life note. Paradigit and firstshop.hu list the card in stock.9Retailer pageparadigit.ie/asus-dual-amd-radeon-rx-9060-xt-16-gb/21825925/productRead 14 October 2026Listed as in stock on 2026-10-14.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, White6Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g-white/techspecRead 14 October 2026The model name carries WHITE. The distributor sheet names the colour White.7Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg2-m0na00.pdfRead 14 October 2026Product colour (Color del producto): Black (Negro).8Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg3-m0na00.pdfRead 14 October 2026Product colour: White (Blanco). The sheet prints a weight of 601 g and a package weight of 1.09 kg for this White model. Those figures are not stored because the sheet of the black card states no weight.9Retailer pageparadigit.ie/asus-dual-amd-radeon-rx-9060-xt-16-gb/21825925/productRead 14 October 2026Colour of product: Black.
GPU
- GPU architecture
- RDNA 41Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026Section text: powered by AMD RDNA 4.12Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- Transistors
- 29.7billion11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Transistor Count 29.7 B.14Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Text: a 29.7 billion transistor chip.
- Shader cores
- 2,0482Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Stream Processors: 2048.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Stream Processors 2048.
- Ray tracing cores
- 3211Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Ray Accelerators 32.
- Infinity Cache (L3)
- 32MB11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026AMD Infinity Cache Technology 32 MB.
- FP32 compute (claimed)
- 25.6TFLOPS11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- Not available
Memory
- VRAM
- 16GB2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Video Memory: 16GB GDDR6.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Max Memory Size 16 GB, GDDR6, 128-bit.
- VRAM type
- GDDR62Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Video Memory: 16GB GDDR6.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Memory Type GDDR6.
- Memory bus width
- 128bits3Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Memory Interface: 128-bit.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Memory Interface 128-bit.
- Memory speed
- 20Gbps2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Memory Speed: 20 Gbps.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Memory Speed up to 20 Gbps.
Connectivity
- PCIe generation
- 53Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Bus Standard: PCI Express 5.0.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.
- PCIe lanes
- 1610Press articlekakaku.com/item/K0001707620/specRead 14 October 2026The ASUS Japan announcement text: PC interface PCI Express 5.0 x16.11Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1a UHBR13.5 2 54 Source3Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Interface: 1 x native HDMI 2.1b and 2 x native DisplayPort 2.1a. ASUS names no UHBR class. UHBR13.5 and the 54 Gbps link rate come from the Igor's Lab review of the RX 9060 XT.15Reviewigorslab.de/en/xfx-swift-radeon-rx-9060-xt-und-sapphire-nitro-rx-9060-xt-im-test-amds-antwort-auf-die-geforce-rtx-5060-tiRead 14 October 2026Text: the Radeon RX 9060 XT supports DisplayPort 2.1a at UHBR13.5 and HDMI 2.1b. UHBR13.5 is 54 Gbps. A link rate of the GPU's display engine, so it holds for every RX 9060 XT board.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a UHBR13.5
- Fastest DisplayPort link
- 54Gbps
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate144 Hz3Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Resolution: Digital Max Resolution 7680 x 4320. The 144 Hz is AMD's figure for 8K with DisplayPort 2.1a and HDMI 2.1b.13Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144 Hz with 12-bit HDR. A figure for the RDNA 4 family.
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV111Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), AV111Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 is not listed.
Graphics features
- DirectX
- 12 Ultimate7Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg2-m0na00.pdfRead 14 October 2026DirectX version: 12 Ultimate.
- Upscaling technologies
- FSR 41Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026Section text names AMD FidelityFX Super Resolution 4.12Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 20261440p gaming with FSR 4 ML-enhanced upscaling.
Power
- Board power
- Not available
Cooling
- Fans
- 21Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026Page text: two Axial-tech fans, with dual-ball bearings.7Spec databaseshop.aodatacloud.es/medias/datasheet_90yv0lg2-m0na00.pdfRead 14 October 2026Number of fans: 2.
- Radiator size
- Not available
Dimensions and weight
- Slot width
- 2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026Page text: a compact 2.5-slot form factor.3Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Slot: 2.5 Slot.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- Not available
- Package weight
- Not available
Lighting and software
- RGB lighting
- Not available
- Lighting sync
- Not available
- Software
- ASUS GPU Tweak III1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026GPU Tweak III is the ASUS tuning tool named on the page.3Maker product pageasus.com/pl/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Software: ASUS GPU Tweak III and drivers.
Measured performance
We could not find any of these 6 fields. Show them
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
- Not available
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
- In the box
- 1 x Thank you card, 1 x Speedsetup Manual2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026Accessories list on the spec page, verbatim.
Links
- Product page
- www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g1Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16gRead 14 October 2026ASUS US product page for the Dual Radeon RX 9060 XT 16GB GDDR6, model DUAL-RX9060XT-16G.
- Spec sheet
- www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspec2Maker product pageasus.com/us/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/techspecRead 14 October 2026ASUS tech spec tab of this model. The US tab lists fewer rows than the Polish tab.
- Manual
- www.asus.com/supportonly/dual-rx9060xt-16g/helpdesk_manual4Maker product pageasus.com/supportonly/dual-rx9060xt-16g/helpdesk_manualRead 14 October 2026ASUS support page for DUAL-RX9060XT-16G with the quick start guides, the recommended PSU table and the GPU Tweak manual.
- EPREL registration number
- Not available
Warranty
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Colours |
|---|---|---|
| DUAL-RX9060XT-16G | 4711636196765 | Black |
| DUAL-RX9060XT-16G-WHITE | 4711636203005 | White |
Sources
We read 16 sources for this graphics card. The numbers match the markers in the sheet.
- Maker product pageasus.com/supportonly/dual-rx9060xt-16g/helpdesk_manual
- Press articlekakaku.com/item/K0001707620/spec
- Certification listkhronos.org/conformance/adopters/conformant-products/vulkan
See a wrong value? Tell us and name the field.
