PC parts / Graphics cards

PNYGraphics card

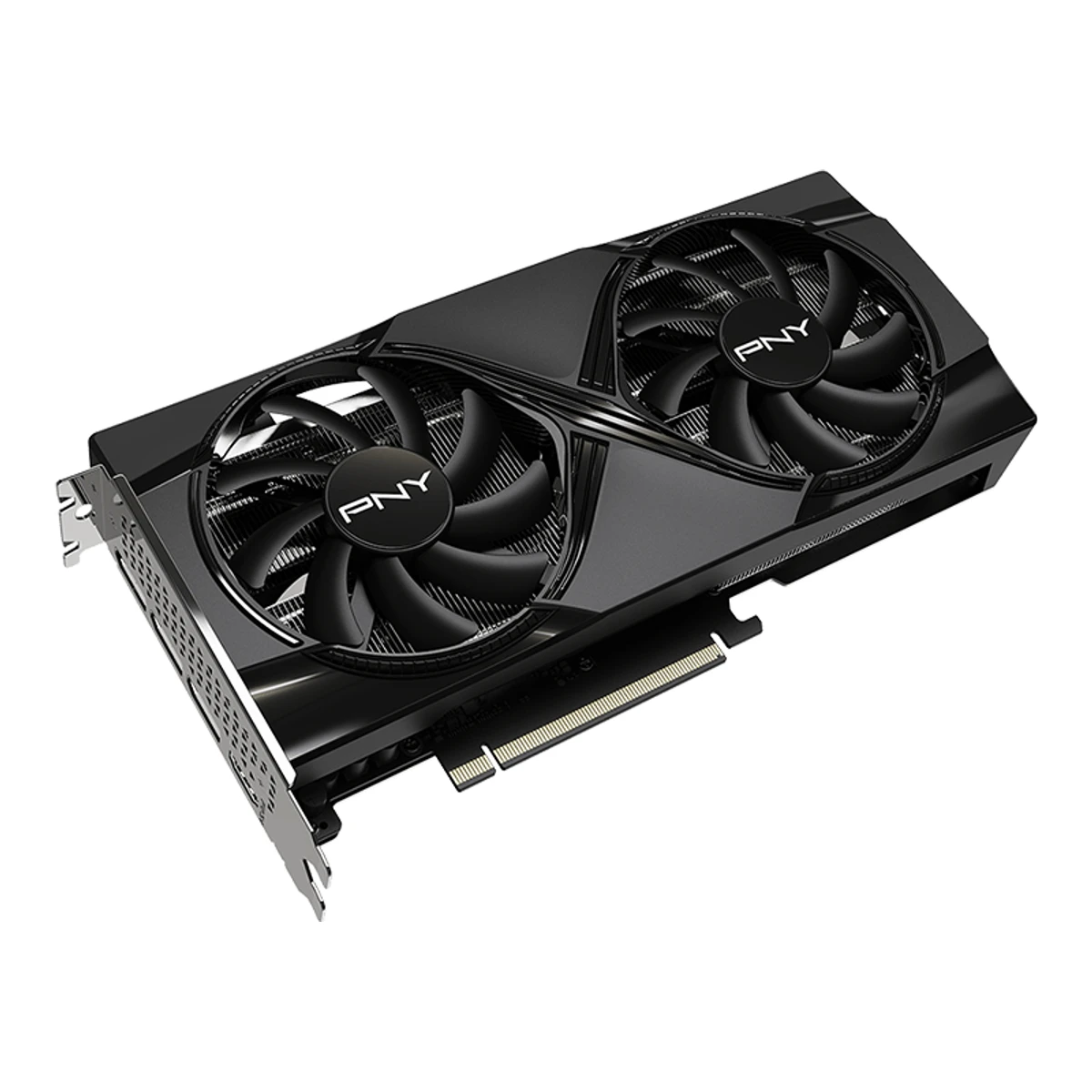

GeForce RTX 5060 Ti 8GB Overclocked Dual Fan

Released April 2025.1 Last checked 16 October 2026.

GPU: NVIDIA GeForce RTX 5060 Ti
VRAM: 8GB
Length: 245mm
Board power: 180W

65 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Thickness
39.9mm1 5 6
Lower than 95% of other graphics cards. Lower is better.

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: Dual Fan2
Model numbers: VCG5060T8DFXPB1-O1 2
GTIN / EAN: 7514927956521 2
Announced: Not available
Status: Available3
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black5
GPU: NVIDIA GeForce RTX 5060 Ti1
GPU brand: NVIDIA7
Reference launch price (US): $3798 11

GPU

GPU architecture: Blackwell7
GPU die: GB2068
Process: TSMC 4N8 9
Transistors: 21.9billion8 9
Die size: 181mm²8 9
Compute units: 368
Shader cores: 4,6081 7
Ray tracing cores: 368
AI cores: 1448
ROPs: 488 9
L2 cache: 32MB9
Infinity Cache (L3): Not available
FP32 compute (claimed): 23.7TFLOPS8
AI performance (claimed): Not available

Clocks

Base clock: 2,407MHz1 2 3
Game clock: Not available
Boost clock: 2,692MHz1 2 3
Boost clock in OC mode: Not available
Reference boost clock: 2,572MHz7 8

Memory

VRAM: 8GB1 7
VRAM type: GDDR71
Memory bus width: 128bits1 7
Memory speed: 28Gbps1
Memory bandwidth: 448GB/s1 8

Connectivity

PCIe generation: 51 7
PCIe lanes: 81 2 3 5
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source1 7
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 41 7
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz1 7
HDCP version: 2.37

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1b UHBR20	3	80

Video engine

Video encoders: 17
Video decoders: 17
Hardware video encode: H.264, H.265 (HEVC), AV110
Hardware video decode: H.264, H.265 (HEVC), VP9, AV110

Graphics features

DirectX: 12 Ultimate7
Vulkan: 1.47
OpenGL: 4.67
Upscaling technologies: DLSS 41 7
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation7

Power

Board power: 180W1 2 3
Reference board power: 180W7
PSU wattage (card maker): 600W1 2 7
Power connector: 1 x 8-pin PCIe1 2 3

Cooling

Cooler type: Open air1
Fans: 21 5
Radiator size: Not available
Fan stop at low load: Not available
Dual BIOS: Not available

Dimensions and weight

Length: 245mm1 5 6
Height: 120mm1 5 6
Thickness: 39.9mm1 5 6
Slot width: 2slots1 3
Low profile: No3
NVIDIA SFF-Ready: Not available
Weight: Not available
Package weight: Not available

Lighting and software

We could not find any of these 3 fields. Show them

RGB lighting: Not available
Lighting sync: Not available
Software: Not available

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: PNY GeForce RTX 5060 Ti OC, 1x Auxiliary Power Cable2
Power adapter cable included: Not available
Support bracket included: Not available

Warranty

Manufacturer warranty (source market): 3years2 3

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 11 sources for this graphics card. The numbers match the markers in the sheet.

Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/rtx-5060-ti-8gb-dual-fan-oc-brochure.pdf
Read 14 October 2026Backs 28 fields
Maker product pagepny.com/geforce-rtx-5060-ti-8gb-models
Read 14 October 2026Backs 12 fields
Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdf
Read 14 October 2026Backs 9 fields
Owner's manualpny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/PNY-Graphics-Card-Quick-Start-Guide.pdf
Read 14 October 2026Backs 1 field
Retailer pageparadigit.ie/pny-geforce-rtx-5060-ti-8gb-overclocked-dual-fan/21811182/product
Read 14 October 2026Backs 6 fields
Spec databasegeektopia.es/es/product/pny/geforce-rtx-5060-ti-overclocked-dual-fan-8gb
Read 14 October 2026Backs 3 fields
Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-family
Read 14 October 2026Backs 20 fields
Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correction
Read 14 October 2026Backs 12 fields
Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-review
Read 14 October 2026Backs 5 fields
Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrix
Read 14 October 2026Backs 2 fields
Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-arrives-for-every-gamer-starting-at-299
Read 14 October 2026Backs 2 fields
