PC parts / Graphics cards
PowerColorGraphics card

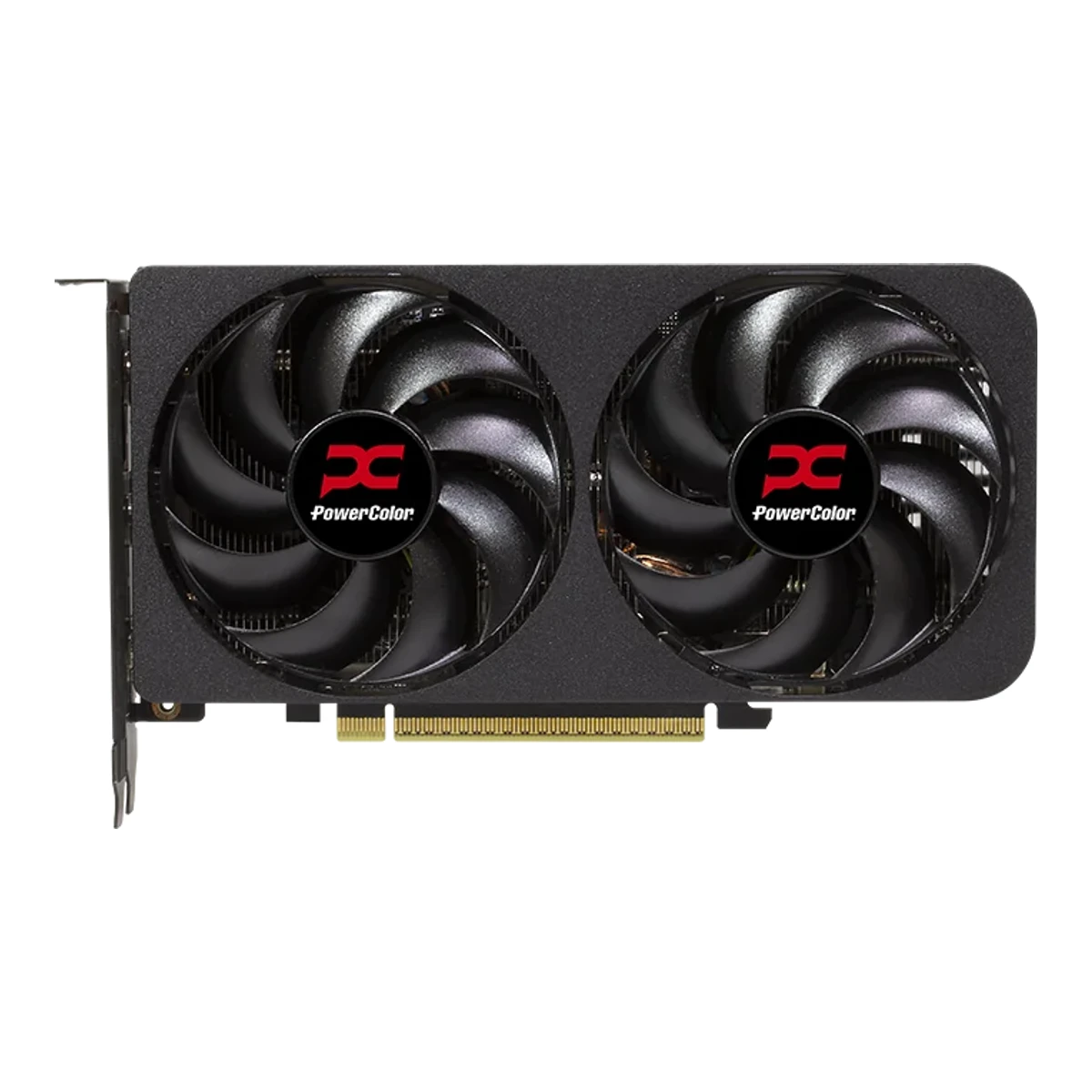

Reaper AMD Radeon RX 9060 XT 16GB GDDR6
Released June 2025.7Reviewhardwareluxx.de/index.php/artikel/hardware/grafikkarten/66296-mit-16-gb-16-pcie-lanes-und-gutem-preis-die-amd-radeon-rx-9060-xt-im-test.htmlRead 14 October 2026Review of this exact card, the PowerColor Reaper Radeon RX 9060 XT 16 GB, dated 2025-06-04. The text says the RX 9060 XT launches the next day. Last checked 14 October 2026.
- GPU
- AMD Radeon RX 9060 XT
- VRAM
- 16GB
- Length
- 220mm
- Board power
- 160W
65 of 100 fields known.
At a glance
Boost clock
Higher than 92% of other graphics cards.
Reference boost clock
Higher than 92% of other graphics cards.
PSU wattage
500W1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Minimum System Power requirement 500 W. AMD states 450 W for the chip.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Minimum PSU Recommendation: 450 W for the chip.
Lower than 92% of other graphics cards. Lower is better.
Thickness
40mm1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Last value of the 220 x 120 x 40 mm size with bracket.13Retailer pageparadigit.ie/powercolor-reaper-radeon-rx-9060-xt-16gb/21863395/productRead 14 October 2026Depth 40 mm.
Lower than 84% of other graphics cards. Lower is better.
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1a
General
- Series
- Reaper1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Series: Reaper.
- Model numbers
- RX9060XT 16G-A, RX9060XT Z16G-A1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Model Name: RX9060XT 16G-A.14Spec databasebuildcores.com/products/GPU/ab76dz6lw/PowerColor-Reaper-Radeon-RX-9060-XT-16GB-GDDR6Read 14 October 2026Part numbers RX9060XT 16G-A, RX9060XT Z16G-A and RX9060 XT 16G-A. PowerColor's US part is RX9060XT Z16G-A.
- GTIN / EAN
- 471343617596414Spec databasebuildcores.com/products/GPU/ab76dz6lw/PowerColor-Reaper-Radeon-RX-9060-XT-16GB-GDDR6Read 14 October 2026UPC and EAN 4713436175964.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Markets
- Not available
- Colours
- Black13Retailer pageparadigit.ie/powercolor-reaper-radeon-rx-9060-xt-16gb/21863395/productRead 14 October 2026Colour of product: Black.14Spec databasebuildcores.com/products/GPU/ab76dz6lw/PowerColor-Reaper-Radeon-RX-9060-XT-16GB-GDDR6Read 14 October 2026Manufacturer color: Black.
- GPU
- AMD Radeon RX 9060 XT1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
GPU
- GPU architecture
- RDNA 44Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026The RX 9060 XT GPUs are powered by the AMD RDNA 4 architecture.
- GPU die
- Navi 445Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Text: the chip is code named Navi 44. This is a chip fact from a review of another card with the same GPU.7Reviewhardwareluxx.de/index.php/artikel/hardware/grafikkarten/66296-mit-16-gb-16-pcie-lanes-und-gutem-preis-die-amd-radeon-rx-9060-xt-im-test.htmlRead 14 October 2026Spec table: GPU Navi 44.
- Process
- TSMC N4P5Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Text: produced on TSMC's N4P node.7Reviewhardwareluxx.de/index.php/artikel/hardware/grafikkarten/66296-mit-16-gb-16-pcie-lanes-und-gutem-preis-die-amd-radeon-rx-9060-xt-im-test.htmlRead 14 October 2026Spec table: TSMC N4P.
- Transistors
- 29.7billion3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Transistor Count: 29.7 B.5Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Text: a 29.7 billion transistor chip.
- Shader cores
- 2,0481Maker product pagepowercolor.com/product-detail248.htmRead 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- Ray tracing cores
- 323Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Ray Accelerators: 32.
- Infinity Cache (L3)
- 32MB3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026AMD Infinity Cache Technology: 32 MB.5Reviewpcper.com/2025/06/xfx-swift-radeon-rx-9060-xt-16gb-oc-reviewRead 14 October 2026Text: 32 MB of L3 cache.
- FP32 compute (claimed)
- 25.6TFLOPS3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) Performance 25.6 TFLOPs. AMD counts dual-issue.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP16 No 103 FP16 Yes 205 FP8 No 205 FP8 Yes 410 INT8 No 205 INT8 Yes 410 INT4 No 410 INT4 Yes 821
Clocks
- Base clock
- Not available
- Boost clock in OC mode
- Not available
Memory
- VRAM
- 16GB1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- VRAM type
- GDDR61Maker product pagepowercolor.com/product-detail248.htmRead 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- Memory bus width
- 128bits1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Memory Interface: 128-bit.
Connectivity
- PCIe generation
- 51Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Bus Standard: PCIE 5.0 x16.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026
- PCIe lanes
- 161Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Bus Standard: PCIE 5.0 x16.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Bus Type: PCIe 5.0 x16.
- Display outputs
Type Version Count HDMI 2.1b 1 DisplayPort 2.1a 2 Source1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Standard Display Connectors: 1 x HDMI 2.1b and 2 x DisplayPort 2.1a. PowerColor names no UHBR class, so no link rate is stored.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Connectivity: DisplayPort 2.1a and HDMI 2.1b.- Display outputs in total
- 3
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1a
- Fastest DisplayPort link
- Not available
- Max displays
- Not available
- Max output resolution
- 7680 × 4320px1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Maximum Resolution: 7680x4320 for DisplayPort and for HDMI. The page states no refresh rate.
- HDCP version
- Not available
Video engine
- Video encoders
- Not available
- Video decoders
- Not available
- Hardware video encode
- H.264, H.265 (HEVC), AV13Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026H264, H265/HEVC and AV1 encode: Yes.
- Hardware video decode
- H.264, H.265 (HEVC), AV13Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026H264, H265/HEVC and AV1 decode: Yes. VP9 is not listed.
Graphics features
- DirectX
- 121Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026DirectX Support: 12.
- Upscaling technologies
- FSR 41Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Page text names AMD FidelityFX Super Resolution 4 ML-powered upscaling.4Press releaseamd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics-cards-and-ryzen.htmlRead 14 October 2026FidelityFX Super Resolution 4 (FSR 4) ML-powered upscaling.
Power
- Board power
- Not available
- Reference board power
- 160W3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Typical Board Power (Desktop): 160 W.
- PSU wattage (card maker)
- 500W1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Minimum System Power requirement 500 W. AMD states 450 W for the chip.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt.htmlRead 14 October 2026Minimum PSU Recommendation: 450 W for the chip.
Cooling
- Cooler type
- Open air1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Axial fans over a nickel-plated copper base with Honeywell PTM7950 phase-change pad.
- Fans
- 21Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Page text: a dual-fan design with 9-blade ring blade fans and Japanese dual ball bearings.11Reviewgeeknetic.es/Review/3213/PowerColor-AMD-Radeon-RX-9060-XT-Reaper-16G-Review.htmlRead 14 October 2026Spanish text: two 70 mm axial fans.12Reviewnews.mynavi.jp/article/20250604-3345212Read 14 October 2026Japanese text: the card uses two fans and has a backplate. It says AMD offers no reference model of the RX 9060 XT and the boost clock is 3230 MHz against the rated 3130 MHz.
- Radiator size
- Not available
- Fan stop at low load
- Yes1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Intelligent Fan Control: the fans kick in at 60 C and stop below 50 C.8Reviewhardwareluxx.de/index.php/artikel/hardware/grafikkarten/66296-mit-16-gb-16-pcie-lanes-und-gutem-preis-die-amd-radeon-rx-9060-xt-im-test.htmlRead 14 October 2026Page 3 text: the fans run semi-passive and PowerColor stops them from a GPU temperature of 50 C. The review says that is why the idle GPU temperature is 48 C.11Reviewgeeknetic.es/Review/3213/PowerColor-AMD-Radeon-RX-9060-XT-Reaper-16G-Review.htmlRead 14 October 2026Spanish text: the fans have independent control with a full stop at idle.
- Dual BIOS
- Not available
Dimensions and weight
- Length
- 220mm1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Board Dimensions 200 x 100 x 39 mm and 220 x 120 x 40 mm with bracket. The size with the bracket is stored.13Retailer pageparadigit.ie/powercolor-reaper-radeon-rx-9060-xt-16gb/21863395/productRead 14 October 2026Length 220 mm, the same as PowerColor's size with bracket.
- Height
- 120mm1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Middle value of the 220 x 120 x 40 mm size with bracket.13Retailer pageparadigit.ie/powercolor-reaper-radeon-rx-9060-xt-16gb/21863395/productRead 14 October 2026Height 120 mm.
- Thickness
- 40mm1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Last value of the 220 x 120 x 40 mm size with bracket.13Retailer pageparadigit.ie/powercolor-reaper-radeon-rx-9060-xt-16gb/21863395/productRead 14 October 2026Depth 40 mm.
- Slot width
- 2slots1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026Slot: 2.11Reviewgeeknetic.es/Review/3213/PowerColor-AMD-Radeon-RX-9060-XT-Reaper-16G-Review.htmlRead 14 October 2026Spanish text: the card is exactly two slots thick and about 200 mm long.
- Low profile
- Not available
- NVIDIA SFF-Ready
- Not available
- Weight
- Not available
- Package weight
- Not available
Lighting and software
- Lighting sync
- Not available
- Software
- Not available
Measured performance
- GPU clock while gaming (measured)
- Not available
- 3DMark Time Spy graphics
- Not available
- 3DMark Port Royal
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Black Myth: Wukong 1920 1080 Very High Off Not available 47.2 Black Myth: Wukong 2560 1440 Very High Off Not available 34.9 Black Myth: Wukong 1920 1080 Cinematic FSR Quality Yes 15.6 Black Myth: Wukong 2560 1440 Cinematic FSR Quality Yes 6.7 Counter-Strike 2 1920 1080 Very High Off Not available 185.9 Counter-Strike 2 2560 1440 Very High Off Not available 112.5 Cyberpunk 2077: Phantom Liberty 1920 1080 Ultra Off Not available 113.1 Cyberpunk 2077: Phantom Liberty 2560 1440 Ultra Off Not available 70.5 Cyberpunk 2077: Phantom Liberty 1920 1080 Ultra, ray tracing Ultra FSR Quality Yes 84.5 Cyberpunk 2077: Phantom Liberty 2560 1440 Ultra, ray tracing Ultra FSR Quality Yes 52.7 DOTA 2 1920 1080 Ultra Off Not available 229.1 DOTA 2 2560 1440 Ultra Off Not available 192.6 F1 24 1920 1080 High Off Not available 241.2 F1 24 2560 1440 High Off Not available 181.1 Frostpunk 2 1920 1080 Ultra High FSR Quality Not available 99.7 Frostpunk 2 2560 1440 Ultra High FSR Quality Not available 73.1 Indiana Jones and the Great Circle 1920 1080 Hyper, texture pool Ultra Off Yes 125.6 Indiana Jones and the Great Circle 2560 1440 Hyper, texture pool Ultra Off Yes 93.3 Lords of the Fallen 1920 1080 Ultra, scaling 100 % Off Not available 104.3 Lords of the Fallen 2560 1440 Ultra, scaling 100 % Off Not available 65.5 The Last of Us Part I 1920 1080 Ultra Off Not available 88.8 The Last of Us Part I 2560 1440 Ultra Off Not available 71.2 S.T.A.L.K.E.R. 2: Heart of Chornobyl 1920 1080 Epic FSR Quality Yes 78.5 S.T.A.L.K.E.R. 2: Heart of Chornobyl 2560 1440 Epic FSR Quality Yes 60.3 Alan Wake 2 1920 1080 High FSR Quality Not available 96 Alan Wake 2 2560 1440 High FSR Quality Not available 73.8 Alan Wake 2 1920 1080 High, ray tracing Medium FSR Quality Yes 35.6 Alan Wake 2 2560 1440 High, ray tracing Medium FSR Quality Yes 23.7
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
In the box
We could not find any of these 3 fields. Show them
- In the box
- Not available
- Power adapter cable included
- Not available
- Support bracket included
- Not available
Links
- Product page
- www.powercolor.com/product-detail248.htm1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026
- Spec sheet
- Not available
- Manual
- powerdriver.s3.us-west-1.amazonaws.com/install_guide/PowerColor_RX_9000_Series_20260226.pdf1Maker product pagepowercolor.com/product-detail248.htmRead 14 October 2026The Download area lists the User Manual file for the RX9060 XT Hellhound and Reaper Series, dated 2026-02-26.2Owner's manualpowerdriver.s3.us-west-1.amazonaws.com/install_guide/PowerColor_RX_9000_Series_20260226.pdfRead 14 October 2026PowerColor RX 9000 Series installation guide in several languages. It is the file behind the User Manual link. It is generic and lists no box contents or card specs.
- EPREL registration number
- Not available
Warranty
We could not find any of these 1 fields. Show them
- Manufacturer warranty (source market)
- Not available
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Sources
We read 14 sources for this graphics card. The numbers match the markers in the sheet.
- Maker product pagepowercolor.com/product-detail248.htm
- Certification listkhronos.org/conformance/adopters/conformant-products/vulkan
See a wrong value? Tell us and name the field.
