Computers / Microphones

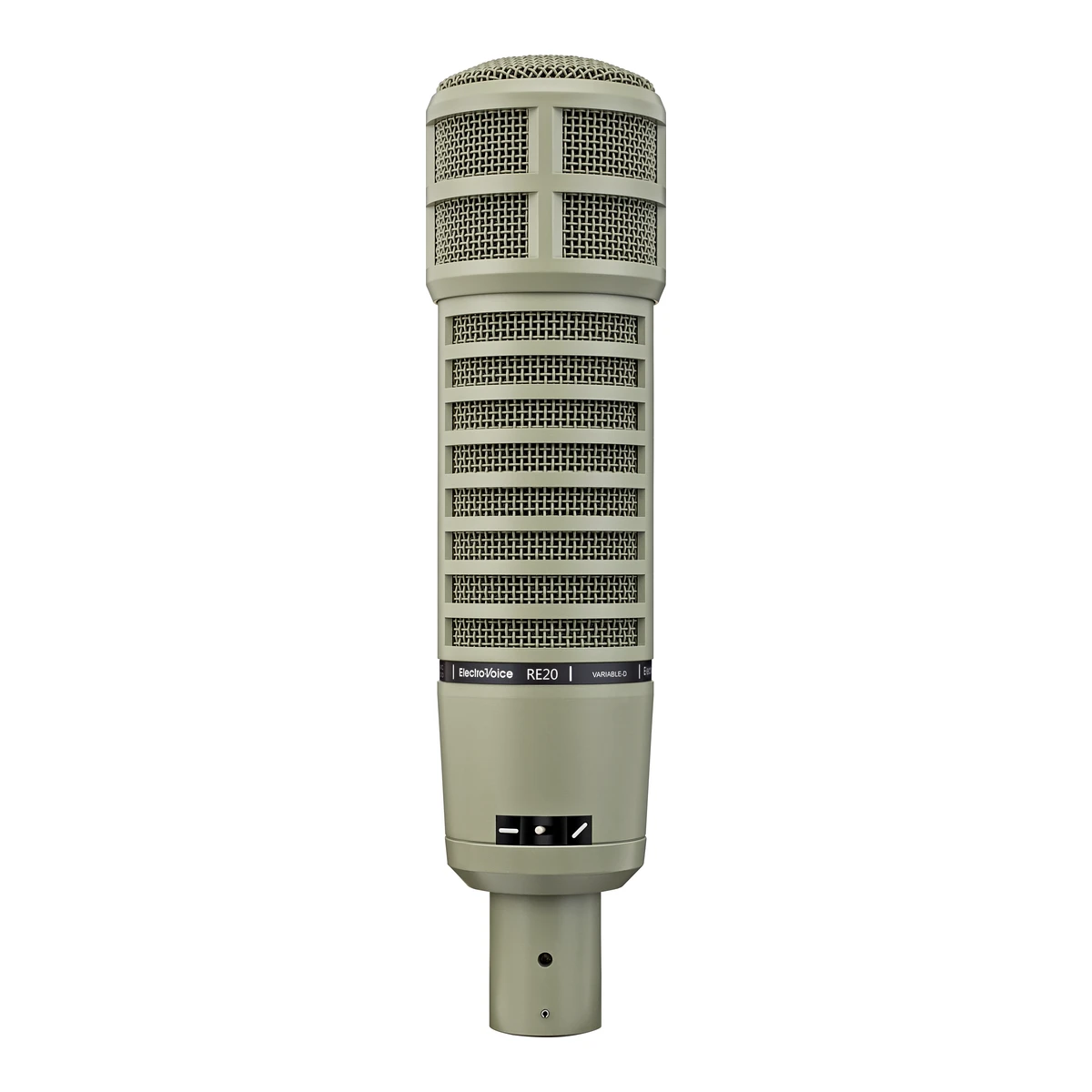

Electro-Voice RE20

Electro-VoiceMicrophone

RE20

Released January 1968.3Press releaseelectrovoice.com/articles/news/2020/electro-voice-introduces-re20-blackRead 15 October 2026The post says the RE20 has stayed in service for more than fifty years since its introduction. Wikipedia and Live Design give 1968 and no month, so 01 is a placeholder. Last checked 15 October 2026.

Type
Dynamic
Polar patterns
Cardioid
Outputs
XLR
Frequency response
45 Hz / 18 kHz

25 of 61 fields known.

Compare with another microphoneDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
RE Broadcast Series1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Series / Family: RE BROADCAST SERIES.
Model numbers
RE20, RE20-BLACK, F.01U.413.981, F.01U.411.9061Maker product pageelectrovoice.com/product/re20Read 15 October 2026The page data lists the part numbers F.01U.411.906 and F.01U.413.981. The variant selector shows RE20 Beige and RE20 Black. The black part number F.01U.411.906 is also the maker part number of the RE20-BLACK in retailer feeds. The beige F.01U.413.981 is the part number retailers give for the classic fawn beige RE20. The older part numbers F.01U.117.389 and 16207816 are not stored.8Retailer pageavlgear.com/products/electro-voice-re20-broadcast-announcer-microphone-black.jsonRead 15 October 2026The SKU carries the maker part number F01U411906 for the RE20-BLACK.
GTIN / EAN
8005493764648Retailer pageavlgear.com/products/electro-voice-re20-broadcast-announcer-microphone-black.jsonRead 15 October 2026Retailer feed: barcode 800549376464 for SKU EV-RE20BLACK-F01U411906, the black RE20-BLACK. ADI Global and an eBay listing print the same UPC for F.01U.411.906. The check digit is valid. The beige RE20 is not stored because retailers print 800549414463 and 800549385008 for it.
Announced
Not available
Status
Available1Maker product pageelectrovoice.com/product/re20Read 15 October 2026The page shows the RE20 with a Where to buy button. Electro-Voice price lists are not on the page.3Press releaseelectrovoice.com/articles/news/2020/electro-voice-introduces-re20-blackRead 15 October 2026The classic RE20 finish continues to be available under the current RE20 model name.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Beige, Black1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Variant selector: RE20 Beige and RE20 Black. The spec table prints the colour Fawn beige. The black finish is dark charcoal.3Press releaseelectrovoice.com/articles/news/2020/electro-voice-introduces-re20-blackRead 15 October 2026The RE20-BLACK is a new colour option in a low-reflection dark charcoal finish. The classic finish stays on sale under the RE20 name.
Microphone type
Dynamic1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Element Type: Dynamic.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Generating Element: Dynamic.5Spec databaserecordinghacks.com/microphones/electro-voice/re20Read 15 October 2026Tags: dynamic.

Capsule and pickup

Capsule size
Not available
Capsules
11Maker product pageelectrovoice.com/product/re20Read 15 October 2026The page names one large Acoustalloy diaphragm in the singular and prints no capsule count. One is the reading of a single dynamic element.
Polar patterns
Cardioid1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Polar Pattern: Cardioid.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Polar Pattern: Cardioid.
Address type
End address2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Singers close talk the microphone with their lips almost touching the grille screen, which is at the top end of the body.5Spec databaserecordinghacks.com/microphones/electro-voice/re20Read 15 October 2026Tags include end-address. The page lists the RE20 as dynamic with a Variable-D design.

Sound specs

Frequency response
Min45 HzMax18 kHz1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Frequency Response: 45 Hz - 18,000 Hz.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Frequency Response: 45 - 18,000 Hz.4Spec databaseen.wikipedia.org/wiki/Electro-Voice_RE20Read 15 October 2026Spec table: 45 to 18,000 Hz.
Sensitivity (analog)
Not available
Sensitivity (digital)
Not available
Max SPL
Not available
Max SPL distortion limit
Not available
Self-noise
Not available
Digital noise floor
Not available
Signal-to-noise ratio
Not available
Dynamic range
Not available
Output impedance
150Ω1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Nominal Impedance: 150 ohms balanced. The old data sheets say the microphone is wired for 150 ohms and can be rewired for 50 or 250 ohms by a solder change. The shipped 150 ohm value is stored.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Impedance: 150 ohms balanced.4Spec databaseen.wikipedia.org/wiki/Electro-Voice_RE20Read 15 October 2026Spec table: impedance 150 ohms.

Connectivity

Outputs
XLR1Maker product pageelectrovoice.com/product/re20Read 15 October 2026The spec data and the Wikipedia article list a three-pin XLR output only.4Spec databaseen.wikipedia.org/wiki/Electro-Voice_RE20Read 15 October 2026Spec table: three-pin male XLR connector.
Inputs for other sources
Not available
USB and XLR at once
Not available
USB port
Not available
Cable host plug
Not available
Cable length
Not available
Phantom power
Not required1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Plug in and go: delivers studio condenser response with no powering required.

Digital audio

We could not find any of these 3 fields. Show them
Max bit depth
Not available
Max sample rate
Not available
32-bit float recording
Not available

Monitoring

Headphone output
No1Maker product pageelectrovoice.com/product/re20Read 15 October 2026The spec data lists no headphone output. The RE20 is a passive dynamic microphone with a single XLR output.
Zero-latency monitoring
Not available

Controls and processing

Onboard controls
Not available
Onboard processing
High-pass filter1Maker product pageelectrovoice.com/product/re20Read 15 October 2026The page names a bass-tilt switch. The data sheet describes a passive network that tilts the low frequencies down 4.5 dB from 400 to 100 Hz. Wikipedia and RecordingHacks call it a high-pass filter below 400 Hz. Stored as high_pass_filter, the same way the SM7B bass rolloff is stored.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Architects and engineers specification: when the filter switch is on, low-frequency response tilts down 4.5 dB from 400-100 Hz. With the switch off, the response is flat from 80-6,000 Hz.3Press releaseelectrovoice.com/articles/news/2020/electro-voice-introduces-re20-blackRead 15 October 2026Mid-bass tone-shaping switch.4Spec databaseen.wikipedia.org/wiki/Electro-Voice_RE20Read 15 October 2026A switch tailors the mid-bass response and attenuates below 400 Hz with a mild high-pass filter.5Spec databaserecordinghacks.com/microphones/electro-voice/re20Read 15 October 2026The page lists a switchable high-pass filter below 400 Hz.

Mounting and accessories

Mount threads
Not available
Shock mount
Internal1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Part of the integral blast and wind filter also shock mounts the internal microphone element, per the data sheet. The launch post and retailers say the element has an internal shock mount.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Part of the filter also shock mounts the internal microphone element, reducing the transfer of vibrations from external sources.
Pop filter
Internal1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Integral blast and wind filter tames hard consonants without an add-on screen. An internal pop filter tames plosives.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026An integral blast and wind filter covers each acoustic opening, so singers can close talk with their lips almost touching the grille.3Press releaseelectrovoice.com/articles/news/2020/electro-voice-introduces-re20-blackRead 15 October 2026Integrated pop filter.
Desk stand included
No1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Included Accessories: 81715 stand clamp only. A clamp is not a desk stand.

Design and build

Housing material
Steel1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Case Material: Steel.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Case Material: Steel.
RGB lighting
Not available
Lighting zones
Not available

Software

We could not find any of these 2 fields. Show them
Software
Not available
User firmware updates
Not available

Compatibility

We could not find any of these 2 fields. Show them
Works with
Not available
Consoles
Not available

Dimensions and weight

Front and side, drawn to scale.

Microphone dimensions
Width54.4Height54.4Depth216.7mm(2.1 × 2.1 × 8.5 in)2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Dimensions: length 216.7 mm (8.53 in), widest diameter 54.4 mm (2.14 in), body diameter 49.2 mm (1.94 in). The RE20 is a round end-address microphone used pointing at the speaker, so the 216.7 mm length is the depth and the 54.4 mm widest diameter is both width and height. The body diameter 49.2 mm is not stored.
Microphone weight
737g(1.6 lb)1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Net weight: 1 lb, 10 oz (737 g). Shipping weight 3 lb, 4 oz (1474 g) is not stored.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Net Weight: 737 g (1 lb, 10 oz).4Spec databaseen.wikipedia.org/wiki/Electro-Voice_RE20Read 15 October 2026Spec table: net weight 737 g.
Weight with stand
Not available

Certifications

We could not find any of these 1 fields. Show them
Other certifications
Not available

In the box

In the box
RE20 microphone, 81715 stand clamp1Maker product pageelectrovoice.com/product/re20Read 15 October 2026Included Accessories: 81715 stand clamp. The optional 309A shock-mounted stand adapter is not included.2Maker spec sheet (PDF)im.static-thomann.de/pics/atg/atgdata/document/manual/233781.pdfRead 15 October 2026Accessories Furnished: 81715 stand clamp. The 2006 sheet also lists a 309A shock-mounted stand adapter as an optional accessory.8Retailer pageavlgear.com/products/electro-voice-re20-broadcast-announcer-microphone-black.jsonRead 15 October 2026What's Included: Electro-Voice RE20-BLACK Microphone and 81715 Stand Clamp.

Warranty

Manufacturer warranty (source market)
3years6Maker product pageelectrovoice.com/support/warrantyRead 15 October 2026The page links the Electro-Voice warranty conditions for North America and EMEA. Both state a warranty of three years for all other products, with only loudspeakers, loudspeaker accessories and the R300 and RE3 wireless microphones named separately. A wired microphone such as the RE20 falls under all other products. An extension of up to five years needs registration and is not stored.7Maker spec sheet (PDF)products.electrovoice.com/download/975639Read 15 October 2026Warranty conditions for Electro-Voice products, EMEA, version V1.0 of 2019-03-13: three years for all other products. The North America version lists the same three years, at https://shop.ccisolutions.com/StoreFront/jsp/pdf/EVI_warranty.pdf.

Compare with

Pick a microphone to see both side by side. Differences are marked yellow.

More microphone comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
F.01U.413.981Not availableBeige
F.01U.411.906800549376464Black

Sources

We read 8 sources for this microphone. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 21 fields
  2. Read 15 October 2026Backs 13 fields
  3. Read 15 October 2026Backs 6 fields
  4. Read 15 October 2026Backs 6 fields
  5. Read 15 October 2026Backs 3 fields
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 1 field
  8. Read 15 October 2026Backs 4 fields
