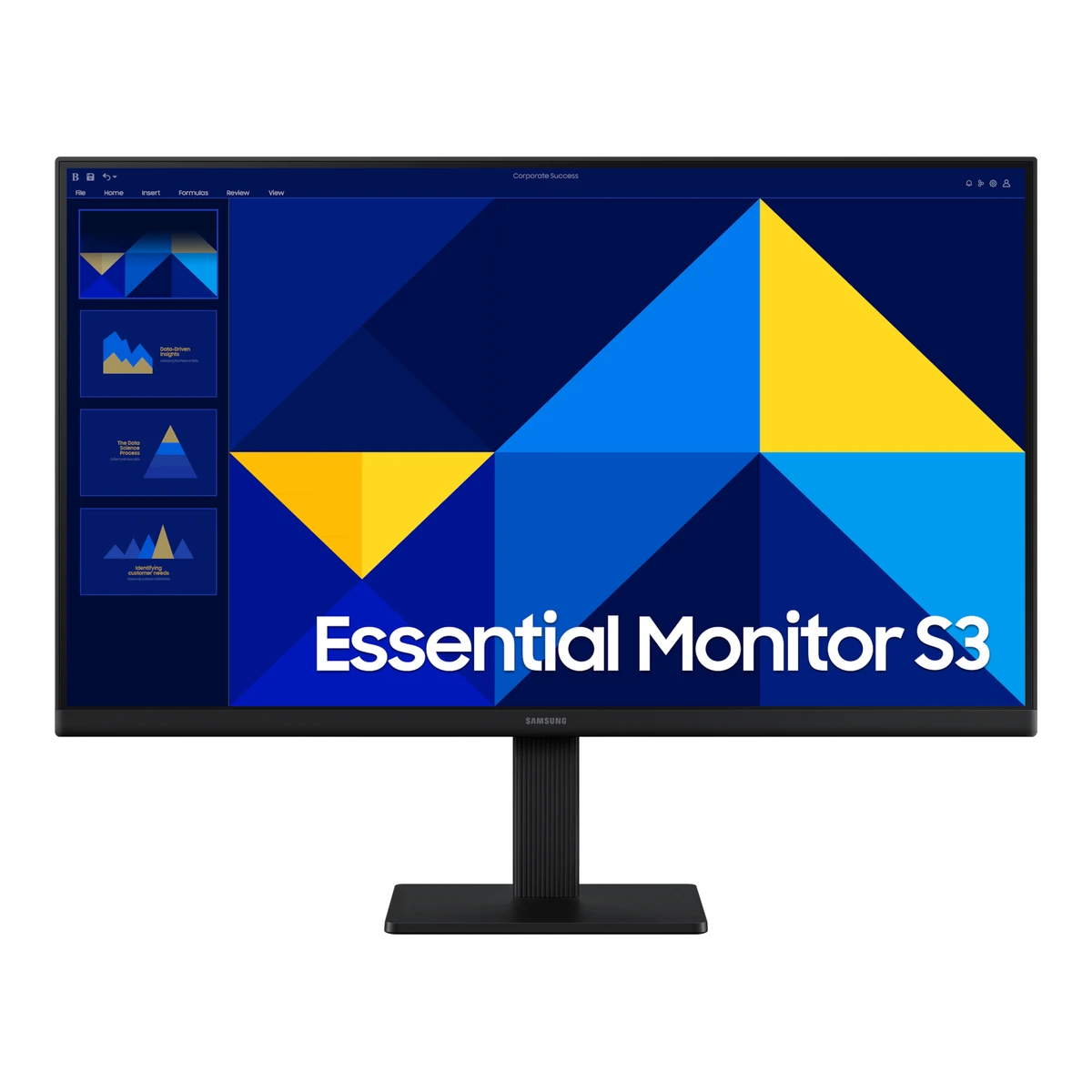

Essential Monitor S3 S30GD 24"

General

Series

Essential Monitor S31Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Datasheet title S30GD Business Essential Monitor. Samsung Canada calls the line Essential Monitor S3 S30GD.

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

LS24D304GANXZA, LS24D300GANXZA, LS24D304GAUXEN2Maker product pagesamsung.com/us/business/monitors/flat/24-s30gd-business-essential-monitor-with-ips-panel-and-tilt-only-stand-100hz-refresh-rate-sku-ls24d304ganxzaRead 15 October 2026The page names S24D304GAN and LS24D304GANXZA.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Samsung Germany datasheet (27 March 2025) for article LS24D304GAUXEN, model name S24D304GAU. It has the same display values, dimensions, weights and tilt as the US datasheet.9Retailer pagedatavision.com/products/samsung-24-s3-s30gd-ips-led-fhd-100hz-monitor-hdmi-d-sub-black-ls24d300ganxzaRead 15 October 2026Datavision lists LS24D300GANXZA as Samsung 24 inch S3 (S30GD) IPS LED FHD 100Hz monitor with HDMI and D-sub. The listing gives no other spec. The sibling EU code LS24D300GAU data sheet has the same display, dimensions and weight.

GTIN / EAN

887276903163, 887276903149, 88060958030745Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026EAN 8806095803074 is the EU model LS24D304GAUXEN. UPC 887276903163 is LS24D304GANXZA and UPC 887276903149 is LS24D300GANXZA, from the sources below.9Retailer pagedatavision.com/products/samsung-24-s3-s30gd-ips-led-fhd-100hz-monitor-hdmi-d-sub-black-ls24d300ganxzaRead 15 October 2026Datavision lists LS24D300GANXZA with UPC 887276903149.10Spec databasebuildcores.com/products/Monitor/vcxkq0jnp/Samsung-LS24D304GANXZA-100Hz-IPS-Monitor-FreeSyncRead 15 October 2026BuildCores lists UPC 887276903163 for LS24D304GANXZA. Its FreeSync and DisplayPort entries are not used. The US datasheet says FreeSync: No and lists no DisplayPort.

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

Not available

Status

Available2Maker product pagesamsung.com/us/business/monitors/flat/24-s30gd-business-essential-monitor-with-ips-panel-and-tilt-only-stand-100hz-refresh-rate-sku-ls24d304ganxzaRead 15 October 2026The page lists the product with a price and an add to cart option.

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

Not available

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

US, CA, EU1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Samsung Electronics America datasheet for the US model.3Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026Samsung Canada page for LS24D304GANXZA lists the same specification table as the US datasheet.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Samsung Germany datasheet for the EU model.

ColoursiThe maker's own colour names

Black1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Front, rear and stand colour are all Black.

SegmentiFrom the maker's own product category. Office also covers home and everyday monitors.

Office2Maker product pagesamsung.com/us/business/monitors/flat/24-s30gd-business-essential-monitor-with-ips-panel-and-tilt-only-stand-100hz-refresh-rate-sku-ls24d304ganxzaRead 15 October 2026Sold as a Business Essential Monitor, filed under Samsung business monitors, not under Odyssey gaming. The monitor has 100 Hz and a Game Mode, but it is sold for office and everyday use.

Display

Screen sizeiDiagonal in inches exactly as the maker advertises it. A class size and the viewable diagonal can differ.

24in(61 cm)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Screen Size (Class) 24 inch.

Viewable screen diagonaliDiagonal of the visible image area. This can be smaller than the advertised class size.

23.8in(60.5 cm)4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Specifications page: Size 24 Class (23.8 Inches / 60.4 cm).

Native resolution

1920 × 1080px1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 20263Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026Specification table: FHD (1,920 x 1,080).

Aspect ratio

16:91Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 20263Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026Specification table: 16:9.

Pixel density

91.8ppi=CalculatedFrom Screen size and Native resolution

Pixel pitchiDistance between adjacent pixels. Source notes identify horizontal or vertical pitch if they differ. A horizontal figure about a third of the vertical one is the pitch of one subpixel, not of a pixel, so the pixel figure is stored.

0.2745mm4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Specifications page: 0.2745 mm (H) x 0.2745 mm (V) for the 24 inch models.

Active display areaiMaker published active-display width and height, excluding the external frame. Source notes distinguish image area from any published shift-reserve area. Dimensions are not inferred from native resolution or rounded pixel pitch.

Width527.04Height296.46mm(20.7 × 11.7 in)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Active Display Size 527.04 x 296.46 mm.

Curved

No1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Flat / Curved: Flat.

Curvature radiusiRadius of screen curvature. A published 1800R is 1800 mm.

Not available

Screen surface

Not available

Anti-reflection coating

Not available

Touchscreen

No8Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/9c1f95cd/67ef1457cbdc8d0c89110845/product-pdfRead 15 October 2026Same data sheet: touchscreen: No.

Panel

Panel type

IPS1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Panel Type IPS.

Panel type (as published)iPanel or technology name as published. This is separate from the normalised panel type.

IPS1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Datasheet Panel Type: IPS.

BacklightiLayout of the backlight. OLED is none (self-emissive). WLED or LED alone names no layout, so it is left out unless a source states edge-lit or direct-lit.

Not available

Local dimming

Not available

Dimming zones

Not available

Panel maker

Not available

Panel part number

Not available

Panel generationiGeneration or panel architecture name stated by the source. Brand product generation and panel generation can differ.

Not available

Subpixel layoutiArrangement of the red, green, blue and any white emitters within a pixel. Individual emitter shapes do not establish their arrangement. Marketing names such as Primary RGB Tandem do not prove an RGB stripe layout.

Not available

Colour depthiSupported total colour depth per channel. A stated 8-bit plus FRC implementation is 10 supported bits with FRC, not native 10-bit. A 6-bit plus FRC panel, also called Hi-FRC, is 8 bits with FRC.

8bits4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Max 16.7M colours is 8 bits per channel. The sources do not say if the panel is native 8-bit or uses FRC.

Colour depth methodiNative panel bits or temporal frame rate control. Supported 10-bit input alone does not prove native 10-bit panel depth.

Not available

Displayable colours

16.7 million1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Color Support Max 16.7M.

sRGB coverageiPercentage of the sRGB reference gamut covered. Gamut volume is a different measure and is not stored here. Source notes identify the colour-space standard.

Not available

DCI-P3 coverageiPercentage of DCI-P3 covered. Do not substitute gamut volume. Source notes identify the CIE reference and any minimum or typical qualifier.

Not available

Adobe RGB coverageiPercentage of Adobe RGB covered. Do not substitute gamut volume.

Not available

Rec. 2020 coverageiPercentage of Rec. 2020 covered. Do not substitute gamut volume.

Not available

NTSC coverageiPercentage of the NTSC reference gamut covered. Source notes identify the reference. Do not substitute gamut volume.

72%1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Color Gamut (NTSC) 72% (CIE 1931). Coverage of the NTSC reference. An sRGB coverage figure is not published.

Factory calibrated

Not available

Claimed Delta EiMaker claim for colour error. Source notes retain a less-than qualifier, the colour space and whether the figure is an average or maximum.

Not available

Paper calibration report in boxiA physical calibration report included in the package. An electronic report in the menu or software does not count as a paper report.

Not available

Hardware calibration supportiCalibration writes to the monitor internal hardware LUT. Ordinary colour controls or a computer ICC profile do not establish this feature.

Not available

Static contrast ratioiPanel native static contrast, without dynamic contrast processing or local dimming. 1000 means 1000:1. Do not store a dynamic contrast claim here.

1,000:11Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Contrast Ratio (Static) 1000:1 (Typical). The dynamic contrast row says Mega and is not stored.3Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026Specification table: 1000:1 (Typical).

Brightness (typical, SDR)iMaker typical SDR white luminance. Source notes state any window size, average picture level and operating mode.

250nits1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Brightness (Typical) 250 cd/m2.3Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026Specification table: 250 cd/m2.

Brightness (maker minimum)iMaker minimum guaranteed brightness specification under its stated conditions. This is not the lowest user-selectable brightness unless the source explicitly says so.

200nits1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Brightness (Min) 200 cd/m2.

Peak brightness (HDR)iMaker peak HDR white luminance. The source notes state window size or average picture level, mode and time limit where published.

Not available

HDR peak test windowiPercentage of screen area used for the peak HDR claim. If the maker publishes average picture level instead, source notes identify that distinction.

Not available

Full-screen brightnessiMaker white luminance at 100% screen area or 100% average picture level. Source notes state SDR or HDR and mode.

Not available

HDR formats

Not available

HDR certificationiVESA DisplayHDR certification. None needs a source, such as the maker saying the monitor has no DisplayHDR certification or the model being absent from the VESA list. When no source was checked, it is left out.

None5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026The datasheet lists no HDR or DisplayHDR. EPREL states HDR energy values as not applicable.

Viewing angle (horizontal)

178°1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026

Viewing angle (vertical)

178°1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026

Refresh rate and motion

Refresh rate per resolution and portiHighest accepted rate for each proven resolution, input and operating condition. Preset or supported timing lists alone do not prove a maximum. Keep separate bit-depth, chroma and DSC conditions. Dual-mode or crop-mode requirements belong in source notes. Unknown input stays unknown.

Refresh rate per resolution and port. The top rate is in bold.

Resolution	HDMI 1.4	VGA
1920 × 1080Native	100Hz	75Hz

Source4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Standard Signal Mode Table, page 40: maximum resolution 1920 x 1080 at 100 Hz (HDMI) and 1920 x 1080 at 75 Hz (D-SUB) for S24D30*G. The 100 Hz timing is in the preset table with a 224.25 MHz pixel clock. HDMI version 1.4 is from the datasheet. Bit depth, chroma and DSC are not stated. The D-SUB row has no input version.

Show as source table

Width (px)	Height (px)	Input	Input version	Maximum accepted rate (Hz)
1920	1080	HDMI	1.4	100
1920	1080	VGA	Not available	75

Max refresh rateiHighest proven accepted rate across the stored modes, including lower-resolution dual modes.

100Hz=CalculatedFrom Refresh rate per resolution and port

Max refresh rate at native resolutioniHighest proven accepted rate at the native pixel resolution, across all inputs and stored operating conditions.

100Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over DisplayPortiHighest proven accepted rate over DisplayPort at native resolution. A higher lower-resolution dual mode is separate.

Not available

Max refresh rate over HDMIiHighest proven accepted rate over HDMI at native resolution. Console refresh limits can be lower than PC limits.

100Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over USB-CiHighest proven accepted rate over USB-C or Thunderbolt at native resolution. USB data bandwidth settings can lower the video maximum.

Not available

Max refresh rate at 10-bitiHighest stored native-resolution mode explicitly proven at 10-bit colour. Rows without bit-depth evidence do not count.

Not available

Native refresh rateiHighest refresh rate the maker rates without overclock. A lower optimum or recommended mode in a manual is not this value.

100Hz1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Frame Rate Max 100Hz. No overclock mode is described.

Overclocked refresh rate

Not available

Dual modeiA dedicated display mode that changes resolution to raise the maximum refresh rate. Ordinary image scaling or a preset timing does not count.

Not available

Minimum fixed refresh rateiLowest fixed input rate accepted by the monitor. A VRR lower limit or general vertical scan range is not this value.

Not available

Adaptive sync technologiesiExact published adaptive-sync protocol or named certification. Generic Adaptive-Sync support does not prove VESA AdaptiveSync Display certification. Source notes distinguish protocols from certifications.

Not available

VRR range per portiVariable-refresh-rate operating range for each input and the operating mode named in source notes. A fixed timing or general vertical scan range alone is not a VRR range.

Not available

Low framerate compensation

Not available

Response time (maker GtG claim)iMaker grey-to-grey pixel transition claim. Source notes state fastest overdrive or other conditions where published.

5ms1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Response Time 5 (GTG). The overdrive setting is not stated.

Response time (maker MPRT claim)iMaker moving-picture response-time claim, often with strobing enabled. This is not a grey-to-grey transition time.

Not available

Overdrive settings

Not available

Motion blur reductioniA dedicated blur-reduction feature using backlight strobing or black frame insertion. OLED monitors have no backlight.

Not available

Blur-reduction technologyiPublished name of the backlight strobing or black frame insertion feature.

Not available

Blur reduction works with VRRiWhether the dedicated strobing or black frame insertion mode can operate at the same time as variable refresh rate.

Not available

Flicker-free (claimed)

Yes1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026General Feature Flicker Free: Yes.4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The datasheets list Flicker Free: Yes.

Black frame insertion

Not available

Connectivity

Video inputsiPhysical connectors that accept a display signal. A USB-C data-only charging port is not a video input. Counts exclude USB hubs and audio jacks.

Type	Version	Count	HDCP
HDMI	1.4	1	1.4
VGA	Not available	1	Not available

Source1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Interface: D-Sub 1 EA, HDMI 1 EA, HDMI version 1.4, HDCP version (HDMI) 1.4. Link bandwidth is not stated. USB ports: No.

HDMI ports

1=CalculatedFrom Video inputs

DisplayPort ports

0=CalculatedFrom Video inputs

Highest HDMI version

1.4=CalculatedFrom Video inputs

Highest DisplayPort version

Not available

HDMI features

Not available

USB-C video (DP Alt Mode)

No1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026USB-C: No.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026USB-C: Nein.

USB-C power deliverediPower the monitor supplies to a connected device. Source notes distinguish guaranteed, maximum and shared dynamic limits. Power consumed by the monitor is separate.

Not available

Thunderbolt

Not available

USB upstream portsiUSB connections from the monitor hub to host computers. Video input and downstream charging ports are separate.

Not available

USB downstream hub portsiUSB hub connections for peripherals. These exclude host-facing upstream ports. A port the maker names for service or firmware updates only is not counted.

Not available

KVM switch

Not available

Daisy chain (MST)

Not available

Ethernet

No4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The Ports page for S24D30*G shows a DC port, HDMI and D-SUB (PC) only.

3.5 mm headphone outputiAnalogue headphone or audio output. A shared four-pole headset jack counts.

No1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Headphone: No.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Kopfhoerer: Nein.

3.5 mm microphone inputiAnalogue microphone input, including the microphone contacts of a shared four-pole headset jack. This does not imply a separate microphone socket.

No4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The Ports page for S24D30*G shows a DC port, HDMI and D-SUB (PC) only. It has no audio jack.

Optical out

No4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The Ports page for S24D30*G shows a DC port, HDMI and D-SUB (PC) only.

Picture in picture

No4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The on-screen menu chapters describe no picture-in-picture function for S24D30*G.

Picture by picture

No4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The on-screen menu chapters describe no picture-by-picture function for S24D30*G.

Audio and camera

Speakers

No1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Speaker: No. Speaker Output: No.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Speaker: Nein.

Number of speakers

Not available

Speaker power per channeliRated power per speaker or output channel. Do not store the total of all speakers here.

Not available

Webcam

No8Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/9c1f95cd/67ef1457cbdc8d0c89110845/product-pdfRead 15 October 2026Product data sheet for the sibling code LS24D300GAUXXU (same display, dimensions and weight): built-in camera: No.

Microphone

No8Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/9c1f95cd/67ef1457cbdc8d0c89110845/product-pdfRead 15 October 2026Same data sheet: built-in microphone: No.

Ergonomics and controls

Stand height adjustmentiVertical travel of the supplied stand. This is not the total height of the monitor.

0mm1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026The stand is a SIMPLE tilt-only stand. The model is sold as Business Essential Monitor with IPS Panel and Tilt Only Stand.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Fuss Hoehenverstellung: Nein.

TiltiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Forward2°Backward21°1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Tilt -2.0 (+/-2.0) to 21.0 (+/-2.0) degrees. Stored as 2 forward and 21 backward. The +/-2 degree tolerance applies to both ends. The stand type is SIMPLE.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Fuss Tiltfunktion -2.0 (+/-2.0) to 21.0 (+/-2.0) degrees.

SwiveliMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Left0°Right0°4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The S24D30*G stand in the manual only tilts. The EU datasheet lists swivel as No.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Fuss Swivelfunktion: Nein.

PivotiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude. Pivot is rotation in the screen plane. A small slant adjustment for levelling, as Dell calls it, counts.

Counterclockwise0°Clockwise0°4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026The manual rotating page shows pivot for the S24D40*G only. The EU datasheet lists pivot as No.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Pivot: Nein.

Removable stand

Yes4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Attaching the Stand, page 9: disassembly is the reverse order of assembly. The wall mount section covers S24D30*G.

VESA mount

100 x 1001Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Wall Mount 100 x 100.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026VESA Wandmontage 100x100.

VESA adapter needed

Not available

Security lock slot

Yes4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Anti-theft Lock slot at the back of the product, page 14. The rear photo on samsung.com shows the slot.

On-screen menu controlsiControls that operate the monitor menu or display settings. Desktop window-layout software alone does not count as menu control.

Joystick4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Control Panel page: a multi-directional button turns the power on and navigates the menu.

Desktop software

Easy Setting Box4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Easy Setting Box chapter, page 33.

User firmware updates

Not available

Ambient light sensoriPresence of a physical ambient-light sensor. A regulatory statement that Automatic Brightness Control is unavailable does not prove the sensor is absent. Human presence or proximity sensing is separate.

Not available

Presence sensoriPresence of a person-detection or proximity sensor. Source notes distinguish room presence from near-screen detection. Absence of one kind does not prove absence of every presence sensor.

Not available

RGB lightingiDecorative illumination explicitly described as RGB or documented with selectable red, green and blue colours. A power LED or only one or two fixed colours is insufficient.

Not available

Gaming menu features

Game Mode4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Menu entry Game Mode for S24D30*G models, and a Response Time setting. The datasheet also names a Game Picture Mode.

Dimensions and weight

Dimensions with standiOverall monitor dimensions with the supplied stand. Minimum and maximum heights require the stand position to be identified by the source.

Width540.7Height (lowest)428.5Height (highest)428.5Depth175.1mm(21.3 × 16.9 × 6.9 in)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Set Dimension with Stand 540.7 x 428.5 x 175.1 mm (W x H x D). The stand does not adjust in height, so the lowest and highest heights are the same. The tilt angle at the measurement is not stated.

Dimensions without standiOverall monitor body dimensions after the stand is removed, including the frame and rear housing.

Width540.7Height320.4Depth36.2mm(21.3 × 12.6 × 1.4 in)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Set Dimension without Stand 540.7 x 320.4 x 36.2 mm.

Stand footprintiWidth and depth of the stand base on the desk. A maker's stand width and depth count.

Not available

Weight with standiWeight with the supplied stand. Source notes state if cables are included. Packaging weight is separate.

2.4kg(5.3 lb)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Set Weight with Stand 2.4 kg. Cables are not stated.

Weight without standiMonitor body weight without stand. Source notes state whether cables are included.

2kg(4.4 lb)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Set Weight without Stand 2.0 kg.

Box dimensionsiShipping box width, height and depth in the maker published orientation. A flat-packed box can have a smaller height than the upright display.

Width636Height100Depth363mm(25 × 3.9 × 14.3 in)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Package Dimension 636.0 x 100.0 x 363.0 mm (W x H x D) in the maker's orientation. The German datasheet for the EU model lists 636.0 x 368.0 x 100.0 mm, which is the upright box.

Box weight

3.8kg(8.4 lb)1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Package Weight 3.8 kg.

Power

• EU energy class SDRE5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Energieeffizienzklasse E.6EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026Product information sheet: SDR class E. Image refresh rate (default) 100 Hz.
  ABCDEFG

Power supplyiUSB-C powered monitors can draw power from a compatible host or an optional USB-C power source. This does not establish a bundled adapter. Record a supplied adapter and its rating separately.

External adapter1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Power Type: External Adaptor.

Adapter ratingiRated output power of the external power adapter. Do not substitute the monitor maximum consumption.

Not available

Input voltage

100-240 V AC, 50/60 Hz4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Specifications page: Power Supply AC100-240V~ 50/60Hz, based on the AC voltage of the adapter.

Power use (typical)iMaker typical operating power under a stated test condition. An unlabeled Power On upper bound does not establish a typical value. EU label test power has separate fields. An ENERGY STAR on-mode (Pon) figure is not a typical value.

Not available

Power use (max)iMaker maximum operating power. Source notes state whether USB charging and connected-device load are included.

25W1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Power Consumption (Max) 25 W. The datasheet gives no typical value.

Power use SDR (EU label)iSDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

15W5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Energieverbrauch im Ein-Zustand 15 W for the EU model. It matches EPREL.6EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026Product information sheet: on-mode power demand in SDR 15.0 W. HDR not applicable.

Power use HDR (EU label)iHDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

Not available

Standby poweriPower in standby or DPMS. Source notes retain any less-than qualifier.

0.5W5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Energieverbrauch im Standby-Zustand 0.5 W.6EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026Product information sheet: standby 0.5 W.

Off-mode poweriPower when switched off but still connected to mains. Source notes retain any less-than qualifier.

0.3W5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Energieverbrauch im Aus-Zustand 0.3 W.6EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026Product information sheet: off mode 0.3 W.

EU energy class HDR

Not available

Energy per 1000 h SDR

15kWh5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Energieverbrauch pro 1000h 15 kWh for the EU model.

Energy per 1000 h HDR

Not available

Certifications

VESA ClearMR

Not available

VESA AdaptiveSync Display

Not available

TÜV certifications

Not available

Low blue lightiHardware means a published panel-level hardware low-blue-light solution. Software means a selectable picture filter. Hardware does not require a selectable filter mode.

Software3Maker product pagesamsung.com/ca/monitors/full-hd-1080p/essential-monitor-s3-s30gd-24-inch-fhd-ips-100hz-ls24d304ganxzaRead 15 October 2026The specification table lists Eye Saver Mode: Yes. The manual says it is a selectable mode, so this is a software filter.4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Eye Saver Mode is a picture mode that lowers blue light around 400 nm. It is a selectable mode, so it is stored as software.

ENERGY STAR

Not available

TCO Certified

Not available

EPEAT

Not available

Colour certifications

Not available

Other certifications

CE, ISO 9241-307 Class 25Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Pixelfehlerklasse Klasse 2 nach ISO 9241-307 and EMC CE.

In the box

In the box

Power cable (1.5 m), HDMI cable1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Accessory table: power cable 1.5 m and HDMI cable. The datasheet does not list other items.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Lieferumfang: Stromkabel (1.5 m), HDMI-Kabel.

Cables includediCables supplied with the product. Count is included only when the source establishes it. Bundles can vary by market.

Type
Power cable
HDMI cable

Source1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Accessory table: Power Cable Length 1.5 m and HDMI Cable: Yes. Counts are not stated.5Maker spec sheet (PDF)images.samsung.com/is/content/samsung/assets/de/display/pdf/Datenblatt_Monitor_LS24D304GAUXEN.pdfRead 15 October 2026Lieferumfang: Stromkabel (1.5 m), HDMI-Kabel.

Warranty

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

2years6EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026Minimum duration of the general guarantee offered by the supplier: 2 years. This is the EU value. A Samsung US government price file lists a 3 year warranty for the US part.

Dead pixel policy

Approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Specifications page notes on Panel Dots (Pixels): approximately 1 pixel per million may be brighter or darker.

Links

Product page

www.samsung.com/us/business/monitors/flat/24-s30gd-business-essential-monitor-with-ips-panel-and-tilt-only-stand-100hz-refresh-rate-sku-ls24d304ganxza2Maker product pagesamsung.com/us/business/monitors/flat/24-s30gd-business-essential-monitor-with-ips-panel-and-tilt-only-stand-100hz-refresh-rate-sku-ls24d304ganxzaRead 15 October 2026Samsung US business page for LS24D304GANXZA, titled 24 inch S30GD Business Essential Monitor with IPS Panel and Tilt-Only Stand, 100Hz Refresh Rate.

Spec sheet

image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdf1Maker spec sheet (PDF)image-us.samsung.com/SamsungUS/home/my-assets/a-12-02/B2B_DatasheetS30GDV1specccc.pdfRead 15 October 2026Samsung Electronics America datasheet B2B-S30GD DATASHEET-NOV24. It covers LS22D304GANXZA, LS24D304GANXZA and LS27D304GANXZA. Only the 24 inch column is used.

Manual

org.downloadcenter.samsung.com/downloadfile/ContentsFile.aspx4Owner's manualorg.downloadcenter.samsung.com/downloadfile/ContentsFile.aspxRead 15 October 2026Samsung user manual BN81-26708B-00 for S22D30*G, S24D30*G, S27D30*G and the S40GD models, English EU version 241015.0, from the Samsung Sweden support page for model S24D304GAU. A Samsung Canada manual of November 2024 (ver 2411010) is listed for the US model.

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

21094586EU energy label (EPREL)eprel.ec.europa.eu/fiches/electronicdisplays/Fiche_2109458_EN.pdfRead 15 October 2026EPREL registration 2109458 for model identifier S24D304GAU.
