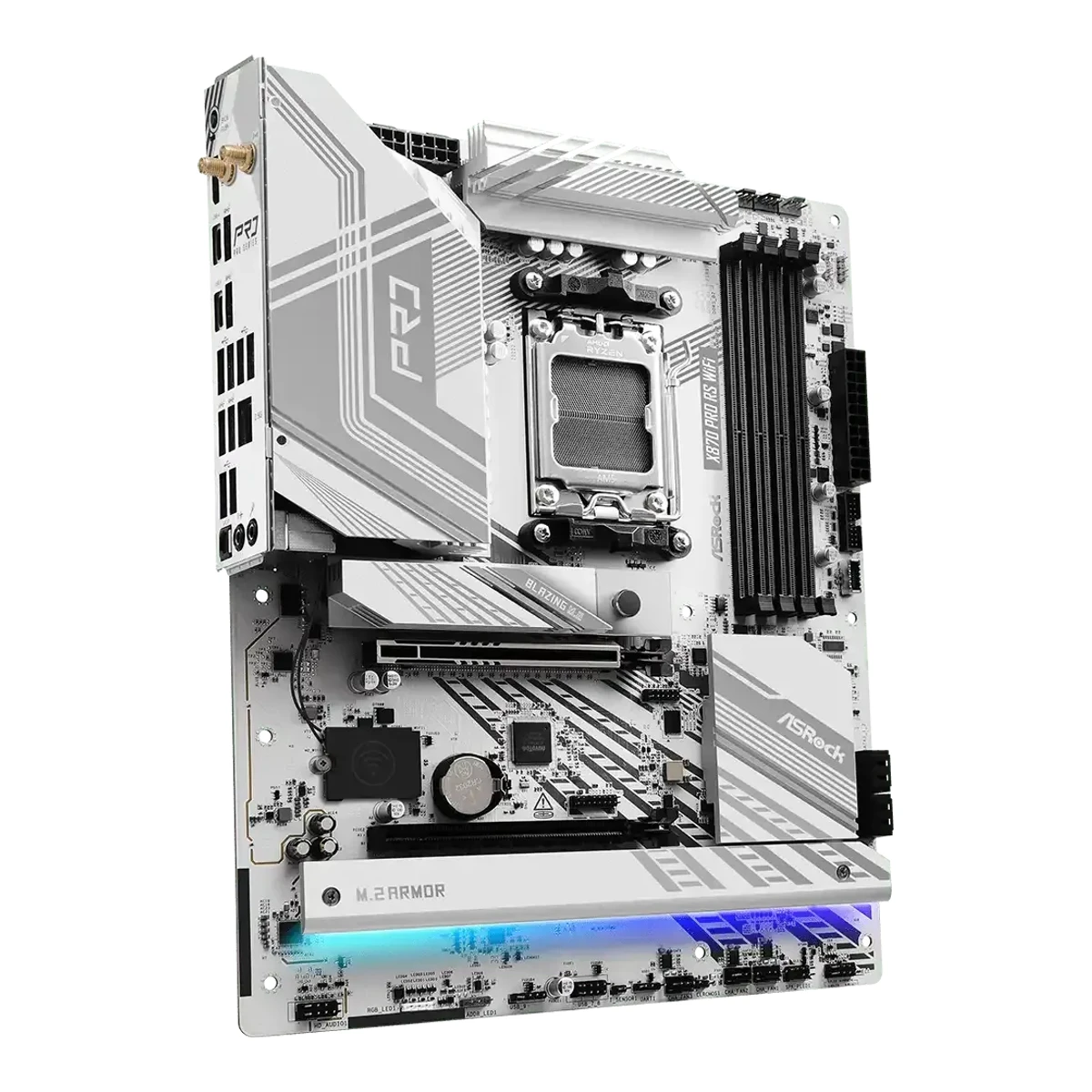

ASRock X870 Pro RS WiFi

ASRockMainstream motherboard

X870 Pro RS WiFi

Released September 2024.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The review says AMD launched the X870 chipset series on 2024-09-30 and reviews the board with a retail price on 2024-10-28. ASRock's launch text called the seven X870 boards launching. The month is approximate. Last checked 15 October 2026.

CPU socket
AM5
Chipset
AMD X870
Form factor
ATX
M.2 slots
3

65 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB4
  • 4 USB-A USB 3.2 Gen 1
  • 6 USB-A USB 2.0
  • HDMI 2.1
  • Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • USB-C header
  • USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
Pro2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The review calls the board the Pro RS WiFi and the lowest tier of ASRock's X870 range. ASRock's product photos on retailer pages print PRO SERIES on the box and the rear I/O cover.
Model numbers
X870 Pro RS WiFi, 90-MXBQ00-A0UAYZ1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Manual cover and title: X870 Pro RS WiFi. The order code 90-MXBQ00-A0UAYZ comes from the retailer listings below.6Retailer pagetest-b2b.100mega.com/en/311835-asrock-x870-pro-rs-wifiRead 15 October 2026Part number 90-MXBQ00-A0UAYZ.7Retailer pagearvutitark.ee/en/pc-components/motherboards/plyta-glowna-asrock-x870-pro-rs-wifi-1402664Read 15 October 2026Product code 90-MXBQ00-A0UAYZ.
GTIN / EAN
47104839493336Retailer pagetest-b2b.100mega.com/en/311835-asrock-x870-pro-rs-wifiRead 15 October 2026The listing shows EAN 4710483949333 for part number 90-MXBQ00-A0UAYZ. The check digit is valid.
Announced
2 September 20245Press articlethefpsreview.com/2024/09/02/asrock-launches-seven-x870e-x870-series-motherboards-including-x870e-taichi-and-x870e-nova-wifiRead 15 October 2026The FPS Review article of 2024-09-02 says ASRock published its X870E/X870 microsite and revealed seven AM5 boards, including the X870 PRO RS WiFi. ASRock's own press page was not readable. Funky Kit's copy of ASRock's press release, used for other X870 boards in this catalog, is dated 2024-09-30.
Status
Available7Retailer pagearvutitark.ee/en/pc-components/motherboards/plyta-glowna-asrock-x870-pro-rs-wifi-1402664Read 15 October 2026The listing shows a price of 224.30 EUR on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
$2092Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The introduction says the board has a retail MSRP of $209, and the conclusion repeats $209 for the WiFi model against $199 for the X870 Pro RS. The review was published 2024-10-28. US price, excl. sales tax. It is the reviewer's statement, not ASRock's. PC Perspective's summary of the review rounds it to $210.4Press articlepcper.com/2024/10/asrock-x870-pro-rs-has-an-exceptionally-clean-backplate-and-much-moreRead 15 October 2026Summary of the FPS Review: The $210 X870 Pro RS WiFi has WiFi 7. The FPS Review itself says $209.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Mainstream2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The review says ASRock markets the board as more general purpose and content creation, while the Steel Legend and Riptide are more gaming-centric. ASRock Pro boards are mainstream by the field rule.
Board revision
Not available

Platform

CPU socket
AM51Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: AMD Socket AM5.
Chipset
AMD X8701Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: AMD X870.
Supported processors
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors. The manual refers to the maker's website for the CPU support list. Read on 2026-10-15.
CPU overclocking
Yes11Maker product pageamd.com/en/products/processors/chipsets/am5.htmlRead 15 October 2026AMD's chipset page describes the X870 platform as fully overclockable. This is the chip maker's page, not the board maker's.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: ATX Form Factor.
Board dimensions
Width244Height305mm(9.6 × 12 in)2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Spec table: length 305 mm, width 244 mm, ATX.6Retailer pagetest-b2b.100mega.com/en/311835-asrock-x870-pro-rs-wifiRead 15 October 2026Board 305 x 244 mm, ATX.
PCB layers
81Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: 8 Layer PCB.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Text: an 8-layer high-quality PCB design.8Retailer pagepccomponentes.com/placa-base-asrock-x870-pro-rs-wifiRead 15 October 20268 Layer PCB design.
Back-connect design
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The layout on pages 7 and 8 shows the usual front-side power, fan and USB connectors. The board is not a back-connect design.
RGB lighting on the board
Yes2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The text says an RGB LED strip runs just below the M.2 #2 and #3 heatsink, as on the Steel Legend and Riptide, controlled by ASRock Polychrome Sync.8Retailer pagepccomponentes.com/placa-base-asrock-x870-pro-rs-wifiRead 15 October 2026The shop copies ASRock's feature heading POLYCHROME RGB.

Power delivery

Power stage layout
14+2+12Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The board features a 14+2+1 power phase VRM, 80Amp, with Dr.MOS SPS for VCore+SOC, like the X870 Riptide WiFi.4Press articlepcper.com/2024/10/asrock-x870-pro-rs-has-an-exceptionally-clean-backplate-and-much-moreRead 15 October 2026Calls it a 14+2+1 Power Phase with 80A Dr.MOS.8Retailer pagepccomponentes.com/placa-base-asrock-x870-pro-rs-wifiRead 15 October 2026The shop copies ASRock's text: 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC.9Retailer pagecomputerassistance.co.uk/product/asrock-x870-pro-rs-wifi-amd-am5-socket-motherboard-atx-4x-ddr5-slots-3x-m-2-sockets-fitted-i-o-shield-2-5gbe-lan-wi-fi-7-1x-hdmi-port-2x-usb-c-usb4Read 15 October 202614+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor.
CPU core (Vcore) power stages
142Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The first number of 14+2+1 is the Vcore rail.10Reviewsogi.com.tw/talks/%E8%8F%AF%E6%93%8EASRock-X870-PRO-RS-WIFI%E4%B8%BB%E6%A9%9F%E6%9D%BF-%E8%90%AC%E5%85%83%E5%85%A7%E5%84%AA%E8%B3%AA%E9%81%B8/6270854Read 15 October 202614+2+1 phases of Dr.MOS.
Vcore power stage rating
80A8Retailer pagepccomponentes.com/placa-base-asrock-x870-pro-rs-wifiRead 15 October 202680A Dr.MOS for VCore+SOC, as the shop copies ASRock's text. ASRock's Pro RS WiFi text on another shop reads 80A Dr.MOS for VCore+SOC+MISC.9Retailer pagecomputerassistance.co.uk/product/asrock-x870-pro-rs-wifi-amd-am5-socket-motherboard-atx-4x-ddr5-slots-3x-m-2-sockets-fitted-i-o-shield-2-5gbe-lan-wi-fi-7-1x-hdmi-port-2x-usb-c-usb4Read 15 October 202680A Dr.MOS, as the shop copies ASRock's text.
VRM controller
Richtek RT3678BE10Reviewsogi.com.tw/talks/%E8%8F%AF%E6%93%8EASRock-X870-PRO-RS-WIFI%E4%B8%BB%E6%A9%9F%E6%9D%BF-%E8%90%AC%E5%85%83%E5%85%A7%E5%84%AA%E8%B3%AA%E9%81%B8/6270854Read 15 October 2026Traditional Chinese review of 2025-07-25: CPU power uses 14+2+1 Dr.MOS phases with an RT3678BEGQW PWM controller. RT is the Richtek prefix and GQW is the package suffix, so Richtek RT3678BE is stored, in the form used for other boards. Single review. ASRock does not document the part.
CPU power connectors
8+8 pin1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Connector list: 1 x 24 pin ATX power connector and 2 x 8 pin 12V power connectors (Hi-Density Power Connector).
Extra slot power connector
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The connector list has no extra slot power connector. The manual never states that one is absent.

Memory

Memory type
DDR51Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: Dual Channel DDR5 memory.
Memory slots
41Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026
Max memory
256GB1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications, page 2: max. capacity of system memory 256GB.
Max memory speed (overclocked)
8,000MT/s1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC). The manual names no CPU family or module setup. It refers to the Memory Support List on the maker's website.
ECC memory
Yes1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The manual says DDR5 ECC/non-ECC, un-buffered memory with no non-ECC mode qualifier.
CUDIMM support
Not available

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1644Chipset1
Source1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026CPU: 1 x PCIe 5.0 x16 slot (PCIE1) at x16. PCIE1 runs Gen5x16 with Ryzen 9000 and 7000, Gen4x8 with Ryzen 8000 (Phoenix 1) and Gen4x4 with Ryzen 8000 (Phoenix 2). Chipset: 1 x PCIe 4.0 x16 slot (PCIE2) at x4, which is disabled when M2_2 is occupied. The M.2 socket (Key E) for the Wi-Fi module is not listed.
Full-length PCIe slots
2
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsinkShares lanes with
M2_154CPUM.2 2280NoYesNot available
M2_244ChipsetM.2 2280NoYesPCIE2 is disabled when M2_2 is used
M2_334ChipsetM.2 2280YesYesM2_3 runs at PCIe 3.0 x2 when SATA3_1 or SATA3_2 is used
Source1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026CPU: M2_1 (Blazing M.2, Key M) type 2280 PCIe Gen5x4. M2_1 runs Gen5x4 with Ryzen 9000 and 7000 and Gen4x4 with Ryzen 8000. Chipset: M2_2 (Hyper M.2) type 2230/2242/2260/2280 PCIe Gen4x4, stored as 2280. Chipset: M2_3 (Ultra M.2) type 2280 in SATA3 6.0 Gb/s and PCIe Gen3x4 modes, so sata is true only for M2_3. If M2_2 is occupied, PCIE2 is disabled. If SATA3_1 or SATA3_2 is occupied, M2_3 downgrades to Gen3x2. The install guides in sections 2.16 to 2.18 show a heatsink on every slot. The M2_1 heatsink comes off with a push button and the M2_2 and M2_3 heatsinks use screws. The block diagram connects M2_1 to the CPU and M2_2 and M2_3 to the chipset.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026One Gen5 slot from the CPU and one Gen4 and one Gen3 slot from the chipset. The primary heatsink comes off with a quick-release button. The second and third slots sit under one slimmer heatsink held by Phillips screws. All three slots have thermal pads.10Reviewsogi.com.tw/talks/%E8%8F%AF%E6%93%8EASRock-X870-PRO-RS-WIFI%E4%B8%BB%E6%A9%9F%E6%9D%BF-%E8%90%AC%E5%85%83%E5%85%A7%E5%84%AA%E8%B3%AA%E9%81%B8/6270854Read 15 October 2026The Blazing M.2 slot has its own heatsink. The Hyper M.2 and Ultra M.2 slots share one heatsink module.
M.2 slots
3
PCIe 5.0 M.2 slots
1
SATA ports
41Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: 2 x SATA3 6.0 Gb/s connectors on the chipset and 2 x SATA3 6.0 Gb/s connectors on an ASMedia ASM1061.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)Thunderbolt or USB4Power out (W)DP Alt Mode
USB-CUSB4240USB415Yes
USB-AUSB 3.2 Gen 145Not availableNot availableNot available
USB-AUSB 2.060.48Not availableNot availableNot available
HDMIHDMI 2.11Not availableNot availableNot availableNot available
Ethernet (RJ45)Not available12.5Not availableNot availableNot available
3.5 mm audioNot available2Not availableNot availableNot availableNot available
Optical S/PDIFNot available1Not availableNot availableNot availableNot available
Source1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications and section 1.4 rear panel: 1 HDMI (HDMI 2.1 TMDS/FRL 8G compatible, up to 4K 120Hz), 2 USB4 Type-C (40 Gb/s, supports USB PD 3.0 up to 5V@3A (15W) charging), 4 USB 3.2 Gen1 Type-A, 6 USB 2.0, 1 RJ-45 2.5G LAN, optical SPDIF out, line out and microphone input jacks. The two antenna ports and the BIOS Flashback button are not ports. The USB4 ports show only the CPU's embedded graphics, up to 8K 30Hz, so dp_alt_mode is true for the Type-C video output.
Rear USB ports
12
Rear USB-C ports
2
Fastest rear USB port
40Gbps
Thunderbolt
No

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header2011
USB 3 header (19-pin)512
USB 2.0 header (9-pin)0.4823
Source1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Connector list: 1 x front panel Type C USB 3.2 Gen2x2 header (20 Gb/s), 1 x USB 3.2 Gen1 header (2 ports) and 2 x USB 2.0 headers (3 ports in total). The manual states no USB power output.
Front USB-C header speed
20Gbps
Fan headers
71Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Connector list: 2 x CPU fan connectors, 4 x chassis fan connectors and 1 x AIO pump fan connector, all 4-pin.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Seven 4-pin fan headers: two CPU and one AIO pump at the top, three chassis fan headers at the bottom right and a final header behind the I/O panel.
ARGB headers
31Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Connector list: 3 x Addressable LED headers (up to 5V/3A, 15W in total).
RGB headers
11Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Connector list: 1 x RGB LED header (up to 12V/3A, 36W in total).

Networking

Ethernet controllers
Realtek RTL81251Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: 2.5 Gigabit LAN with the Dragon RTL8125BG. The block diagram labels it Realtek 2.5G LAN RTL8125BG. The suffix BG is stored without letters. The FPS Review spec table prints Realtek 8126 5Gbps, which the manual, the block diagram and the same review's text (RTL8125BG) contradict.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 20262.5Gbps wired Ethernet from a Realtek Dragon RTL8125BG in the text. The spec table of the same page prints Realtek 8126 5Gbps, which the manual contradicts.
Ethernet ports
1
Ethernet speed
2.5Gbps
Wi-Fi included
Yes1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Section 1.6 and specifications: the X870 Pro RS WiFi comes with an 802.11be Wi-Fi 7 and BT module in the Key E socket.
Wi-Fi standard
Wi-Fi 71Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: 802.11be 2x2 Wi-Fi 7 module, IEEE 802.11a/b/g/n/ac/ax/axe/be.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: supports 2.4GHz/5GHz/6GHz frequency band. The 6 GHz band depends on Windows 11 and on country rules.
Max Wi-Fi channel width
160MHz1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: supports 160MHz channel bandwidth with 6GHz frequency band.
Wi-Fi module
Not available
Bluetooth
5.41Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications and section 1.6: Bluetooth 5.4.

Audio

Audio codec
Realtek ALC12201Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) with Nahimic Audio.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Audio is 7.1 channel via a Realtek ALC 1220 chip.
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Specifications list 1 x BIOS Flashback Button on the rear panel. Section 2.13 calls it the only smart switch.
Clear CMOS button (rear)
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The rear panel list has no clear CMOS button. The layout lists a Clear CMOS jumper (CLRCMOS1).
POST code display
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Section 2.14 and the layout list a Post Status Checker (PSC). It is four colour LEDs for CPU, DRAM, VGA and BOOT, not a two-digit display.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026No debug numerical LEDs. A set of debug LEDs sits in the upper right corner.
Power button on the board
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Section 2.13 says the only smart switch is the BIOS Flashback button. The layout lists no power or reset button. The FPS Review also says there are no onboard power or reset buttons.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026No onboard power or reset buttons.
Dual BIOS
No1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The block diagram shows one Flash ROM. Dual BIOS is not stated.
Pre-installed I/O shield
Yes2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The rear I/O panel is of the style where the rear motherboard plate is preinstalled.9Retailer pagecomputerassistance.co.uk/product/asrock-x870-pro-rs-wifi-amd-am5-socket-motherboard-atx-4x-ddr5-slots-3x-m-2-sockets-fitted-i-o-shield-2-5gbe-lan-wi-fi-7-1x-hdmi-port-2x-usb-c-usb4Read 15 October 2026The title says fitted I/O shield and the spec list says Flexible Integrated I/O Shield.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026The install guides for all three M.2 sockets turn a nut lock clockwise to hold a 2280 module without a screw (m2_latch). The M2_1 heatsink comes off by pushing a button, with no tool (m2_heatsink). The M2_2 and M2_3 heatsinks need a screwdriver. The Wi-Fi antennas screw on. The manual names no PCIe release button, and the FPS Review says the primary slot has no EZ release, although ASRock's launch text for the whole X870 range names an EZ release graphics card slot. The release is left out.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026The primary M.2 (Blazing) heatsink has a quick-release latch, and all M.2 slots have tool-less hold-downs. The bottom M.2 heatsink needs a Phillips screwdriver. The primary PCIe slot is steel-reinforced but has no EZ release.10Reviewsogi.com.tw/talks/%E8%8F%AF%E6%93%8EASRock-X870-PRO-RS-WIFI%E4%B8%BB%E6%A9%9F%E6%9D%BF-%E8%90%AC%E5%85%83%E5%85%A7%E5%84%AA%E8%B3%AA%E9%81%B8/6270854Read 15 October 2026The Blazing M.2 slot has a tool-free install.

Measured

VRM temperature under CPU load
35.5°C3Measurementthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Cinebench R23 for 20 minutes with HWInfo64. The CPU was an AMD Ryzen 7 7700X cooled by an AIO, at about 92 C at 100% load. The VRM temperature stayed between 34.0 and 35.5 C and the highest value is stored. The sensor is HWInfo64's reading of the board sensor. The CPU package power and ambient temperature are not stated.
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
2 x Serial ATA (SATA) data cables, 2 x ASRock WiFi 2.4/5/6 GHz antennas, Quick Start Guide1Owner's manualdownload.asrock.com/Manual/X870%20Pro%20RS%20WiFi.pdfRead 15 October 2026Section 1.1: 2 x Serial ATA (SATA) data cables (optional) and 2 x ASRock WiFi 2.4/5/6 GHz antennas (optional) for the X870 Pro RS WiFi. The FPS Review adds a Quick Start Guide.2Reviewthefpsreview.com/2024/10/28/asrock-x870-pro-rs-wifi-motherboard-reviewRead 15 October 2026Packaging: a bag of two SATA cables, a Quick Start Guide and two Wi-Fi antennas.

Warranty

Manufacturer warranty (source market)
3years6Retailer pagetest-b2b.100mega.com/en/311835-asrock-x870-pro-rs-wifiRead 15 October 2026Warranty 36 months. A distributor's listing, market not stated.7Retailer pagearvutitark.ee/en/pc-components/motherboards/plyta-glowna-asrock-x870-pro-rs-wifi-1402664Read 15 October 2026Warranty (months) 36. The market is Estonia.
