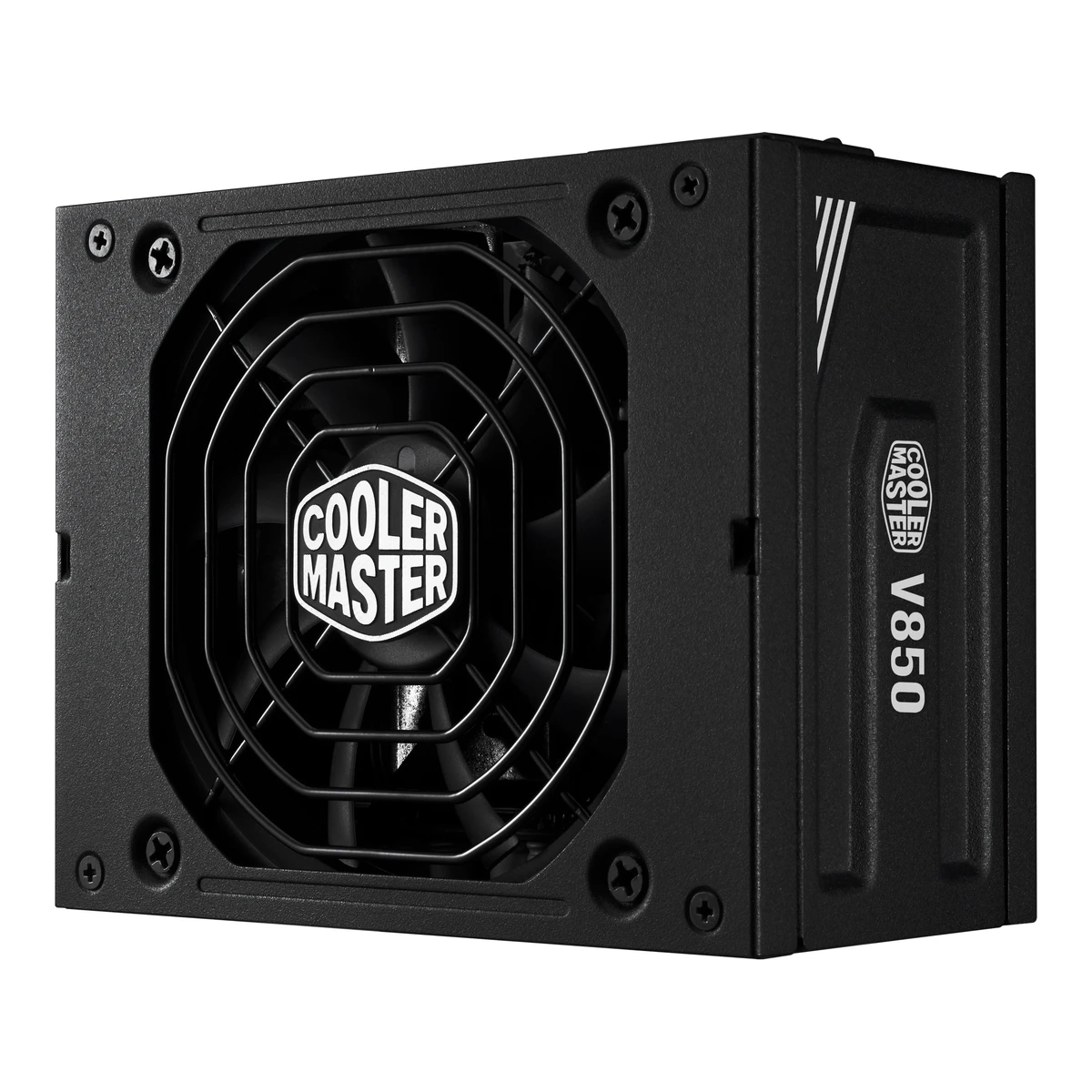

Cooler Master V850 SFX Gold ATX 3.1

Cooler MasterPower supply

V850 SFX Gold ATX 3.1

Released October 2024.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026The user guide is dated 2024/07, the sample reached the lab on Sep 23, 2024 and the report was issued Oct 9, 2024. MODDIY lists the ATX 3.1 model (3E**) as released in 2024. No maker launch date was found, so the month is approximate. Last checked 16 October 2026.

Power
850W
Efficiency
80 PLUS Gold
Modular cables
Fully modular
ATX version
ATX 3.1

53 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
V SFX1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Series V SFX Series. The maker sells three hardware generations under the name V850 SFX Gold: the original (MPY-8501-SFHAGV-US, 2020), an ATX 3.0 model (MPY-8501-SFHAGV-3U1, 2023) and this ATX 3.1 model (MPY-8501-SFHAGV-3E**, 2024). This file covers the ATX 3.1 model.
Model numbers
MPY-8501-SFHAGV-3U1, MPY-8501-SFHAGV-3EUS, MPY-8501-SFHAGV-3EUK, MPY-8501-SFHAGV-3EEU, MPY-8501-SFHAGV-3EWU, MPY-8501-SFHAGV-3EWK, MPY-8501-SFHAGV-3EWE1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Model MPY-8501-SFHAGV-3E** for the black unit. The regional codes are in the product sheet.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Packing information lists twelve regional codes, -3EUS, -3EUK, -3EEU, -3EST, -3EAU, -3EBR, -3EKR, -3ETW, -3EJP, -3EIN, -3EAR and -3EWO. The file stores the US, UK and EU codes.4Maker product pagecoolermaster.com/en-global/products/v850-sfx-gold.htmlRead 15 October 2026The US page is titled V850 SFX Gold ATX 3.1 and prints model MPY-8501-SFHAGV-3U1. Its specification table is older. It says SFX 12V Ver. 3.42 only, lists no 12V-2x6 connector and links the 2021 product sheet. Third parties such as Newegg and MODDIY call 3U1 the 2023 ATX 3.0 model. The maker's own page and Amazon title say ATX 3.1, so 3U1 is stored as the US row. See the doubts.5Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1-white-edition.htmlRead 15 October 2026Specifications: Model MPY-8501-SFHAGV-3EW* for the white edition.6Maker spec sheet (PDF)coolermaster.egnyte.com/dl/nrX314CcEHRead 15 October 2026Item code MPY-8501-SFHAGV-3EW*. The packing table lists twelve regional codes, of which -3EWU, -3EWK and -3EWE are stored.8Retailer pageamazon.com/dp/B08LP6WS35Read 15 October 2026Item details: Model Number and Mfr Part Number MPY-8501-SFHAGV-3U1, Model Name V850 SFX Gold. The title says ATX 3.1, 12V-2x6 cable, Cybenetics Gold and Noise A-. The built-in media line says V850 SFX ATX 3.0.
GTIN / EAN
4719512148136, 4719512148150, 4719512148167, 4719512148471, 4719512148495, 47195121485012Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Packing information: EAN 4719512148136 for -3EUS, 4719512148150 for -3EUK and 4719512148167 for -3EEU. The sheet also lists a separate UPC per code, such as 884102120459 for -3EUS. The EAN is stored.6Maker spec sheet (PDF)coolermaster.egnyte.com/dl/nrX314CcEHRead 15 October 2026Packing information of the white edition: EAN 4719512148471 for -3EWU, 4719512148495 for -3EWK and 4719512148501 for -3EWE.
Announced
Not available
Status
Available1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Page is live in the current V SFX Series catalog with a buy button.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White5Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1-white-edition.htmlRead 15 October 2026V SFX Gold 850W ATX 3.1 White Edition. The specification table is the same as the black unit.
Form factor
SFX1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Form Factor SFX. Dimensions 100 x 125 x 63.5 mm. The back face is 125 x 63.5 mm, the standard SFX size. The unit ships with an SFX-to-ATX bracket.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026
ATX version
ATX 3.11Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: ATX Version ATX 3.1 & SFX 12V Ver. 3.42. Overview: ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Specifications: ATX Version ATX3.1 & SFX 12V Ver. 3.42. Features: ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable.
PCIe CEM version
PCIe 5.11Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Overview: a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Features: 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable.
Modular cables
Fully modular1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Modular Fully Modular.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Features: fully modular cabling.
Built by (OEM)
Gospower7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026DUT Information: OEM/ODM Gospower.

Power

Rated continuous power
850W1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Watts 850W.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026
Full power rated up to
Not available
12V rail design
Single rail2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026The power table has one +12V column with 70.8A and 849.6W.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Power Specifications: one +12V column, 70.8 A and 849.6 W.
+12V max current
70.8A2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026DC output: +12V 70.8A.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Power Specifications: +12V 70.8 A.
+12V max power
849.6W2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Total power: +12V 849.6W, total 850W.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Power Specifications: +12V 849.6 W, total 850 W.
+3.3V and +5V combined power
120W2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Total power: one 120W cell for +3.3V and +5V, 20A each.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Power Specifications: one merged 120 W cell for 3.3V and 5V, 20 A each.
+5V standby current
3A2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026DC output: +5Vsb 3A, 15W.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Power Specifications: 5VSB 3 A, 15 W.
AC input voltage
Lowest100Highest240V1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Input Voltage 100-240V, input current 12-6A, 50-60Hz.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026AC input 100-240V~, 12-6A, 50-60Hz.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Manufacturer-provided information: 100-240 Vrms, 6-12 A, 50-60 Hz.
Alternative low power mode (ALPM)
Yes7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Temperature and Compliance Info: ALPM compatible ticked. ATX v3.1 PSU Power Excursion ticked.

Certifications

80 PLUS rating
80 PLUS Gold1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: 80 PLUS Rating 80 PLUS Gold, 90% at typical load. This is the maker's claim. The 80 PLUS list has no entry for the ATX 3.1 model. Its only entry for the base code MPY-8501-SFHAGV is dated 2020-01-24, belongs to the original model and shows Platinum, so it is not used.
Cybenetics efficiency at 115V
Cybenetics Gold7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Report 24PS2598A, Lab ID CM85002598, model V SFX Gold 850 (ATX v3.1), sample serial MPY8501SFHAGV3EEU1243500002 (the EU model), received Sep 23, 2024, tested Oct 8, 2024, issued Oct 9, 2024. The certificate shows the ETA Gold badge at 115V. The Amazon US title says Cybenetics Gold and Noise A-.
Cybenetics efficiency at 230V
Cybenetics Gold7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026The certificate shows the ETA Gold badge at 230V.
Cybenetics noise at 115V
A-7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026The certificate shows the LAMBDA A- badge at 115V. Average noise of 29.21 dBA is in the A- band.
Cybenetics noise at 230V
A-7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026The certificate shows the LAMBDA A- badge at 230V. Average noise at 230V is 28.60 dBA.

Measured

Average efficiency at 115V (measured)
87.894%7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C. At 230V it is 90.298%.
Average efficiency at 230V (measured)
90.298%7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
67.765%7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Performance summary line for 2% load (more than 500 W unit) at 115V.
Average power factor at 115V (measured)
0.987Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.942.
Average noise at 115V (measured)
29.21dB(A)7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer.
Noise at full load at 115V (measured)
43dB(A)7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Typical Load Tests at 115V, 100% load row: 43 dB(A) at 2847 rpm, intake 45.81 C.
Standby power with no load at 115V (measured)
0.0441W7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0441 W. At 230V it is 0.1110 W.
Hold-up time (measured)
22.5ms7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 22.50 ms, AC loss to PWR_OK 19.20 ms, PWR_OK inactive to DC loss 3.30 ms, at maximum continuous load. The report names no input voltage. The maker's 16 ms is a claim and is not stored.
12V ripple at full load (measured)
19.55mV7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Non-accredited. 12V ripple at full load at 115V: 19.55 mV. At 230V it is 21.47 mV.
12V load regulation (measured)
1.47%7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Non-accredited. 12V load regulation at 115V: 1.47%. At 230V it is 1.49%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1130018AWGNot available
CPU 8-pin (EPS, 4+4)2245018AWGNot available
PCIe 8-pin (6+2)4240016AWGNot available
12V-2x61140016AWG600
SATA power8210018AWGNot available
4-pin Molex4110018AWGNot available
Source1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: ATX 24 pin 1, EPS 4+4 pin 1, EPS 8 pin 1, SATA 8, Peripheral 4 pin 4, PCI-e 6+2 pin 4 and 12V-2x6 1. The product sheet gives the cable counts and lengths.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Connectors: ATX 24 pin x1 = 1x (300mm), EPS 4+4 pin x1 = 1x (450mm), EPS 8 pin x1 = 1x (450mm), SATA x8 = 2x (100+115+115+115mm), Peripheral 4 pin x4 = 1x (100+115+115+115mm), PCI-e 6+2 pin x4 = 2x (400+120mm) and 12V-2x6 x1 = 1x (400mm). The first value of each spacing list is the length to the first plug. The 4-pin peripheral plugs are Molex plugs. The overview text says 16AWG PCIe high-efficiency cables, so 16AWG is stored for the PCIe cables. The 12V-2x6 rating of 600W comes from Cybenetics. The other gauges come from Cybenetics.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 300 mm 18AWG, 8 pin EPS 455 mm 18AWG, 4+4 pin EPS 455 mm 18AWG, 2 PCIe cables with 4 plugs in total (400 mm + 120 mm) 16-18AWG, 12+4 pin PCIe 415 mm (600W) 16-28AWG, 2 SATA cables with 8 plugs in total 18AWG and 1 Molex cable with 4 plugs 18AWG, no in-cable capacitors. The 16-28AWG range of the 12+4 pin cable includes the sideband wires, so the 16AWG power wire gauge is stored. The maker's lengths are stored.
CPU (EPS) connectors
2
PCIe 8-pin connectors
4
16-pin GPU connectors
1
SATA power connectors
8
4-pin Molex connectors
4
Cable style
Mixed1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026The gallery photo cable02.png shows flat ribbon cables for the 24-pin, CPU, PCIe, peripheral and SATA cables and a sleeved 12V-2x6 cable.

Fan

Fan size
92mm1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Fan Size 92mm.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 20267Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026DUT Information: 92mm fan.
Fan bearing
Fluid dynamic (FDB)1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Fan Bearing FDB. Overview: quiet FDB fan.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Quiet FDB fan: a fluid dynamic bearing fan.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026DUT Information: 92mm Fluid Dynamic Bearing Fan (HA9215VH12FD-F00).
Fan mode
Semi-passive7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026DUT Information: Semi-Passive Operation ticked. The maker documents do not mention a semi-passive mode. In the typical load test at 40 C intake the fan already runs at 1302 rpm at 10% load.
Fan mode switch
Not available

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection. Surge and inrush protection is stored as SIP. NLO comes from the Cybenetics protection tests.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Protections: OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection.7Measurementcybenetics.com/evaluations/psus/2598Read 15 October 2026Protection Features: OPP at 133.25% normal and 119.18% hot, +12V OCP, OTP, SCP to earth, NLO ticked and SIP shown (surge MOV, inrush NTC and bypass relay). Fan failure protection is not present.
All-Japanese capacitors
Yes1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Overview: 100% Japanese capacitors.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026High-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.
MTBF (claimed)
100,000h1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: MTBF >100,000 Hours. Stored as 100000. The test temperature is not stated.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026MTBF >100,000 hours.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width125Height63.5Depth100mm(4.9 × 2.5 × 3.9 in)1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Specifications: Dimensions (L x W x H) 100 x 125 x 63.5 mm. Depth is 100 mm.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Dimensions (L x W x H) 100 x 125 x 63.5mm.
Weight
1.42kg(3.1 lb)2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Net Weight 1.42 kg. Gross Weight 1.86 kg is the packed weight and is not stored. The sheet does not say the net weight includes cables.

In the box

In the box
Cable bag x1, Power cord x1, Zip ties x7, Velcro x3, Screw bag x1, ATX-ITX adapter bracket x1, Manual - User Guide x1, Cable Recommended Installation Guide x12Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 2026Package Content (Accessories): cable bag x1, power cord x1, zip ties x7, velcro x3, screw bag x1, ATX-ITX adapter bracket x1, manual user guide x1 and cable recommended installation guide x1.

Warranty

Manufacturer warranty (source market)
10years1Maker product pagecoolermaster.com/en-global/products/v-sfx-gold-850-atx-3-1.htmlRead 15 October 2026Overview: 10-year Warranty. The page is the global English page. The product sheet says 10 years from the date of purchase.2Maker spec sheet (PDF)coolermaster.egnyte.com/dl/TcIBNJ2vjsRead 15 October 202610 Year Warranty: a standard limited manufacturing warranty of 10 years from the date of purchase.

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
MPY-8501-SFHAGV-3U1Not availableBlack
MPY-8501-SFHAGV-3EUS4719512148136Black
MPY-8501-SFHAGV-3EUK4719512148150Black
MPY-8501-SFHAGV-3EEU4719512148167Black
MPY-8501-SFHAGV-3EWU4719512148471White
MPY-8501-SFHAGV-3EWK4719512148495White
MPY-8501-SFHAGV-3EWE4719512148501White
