PC parts / Power supplies

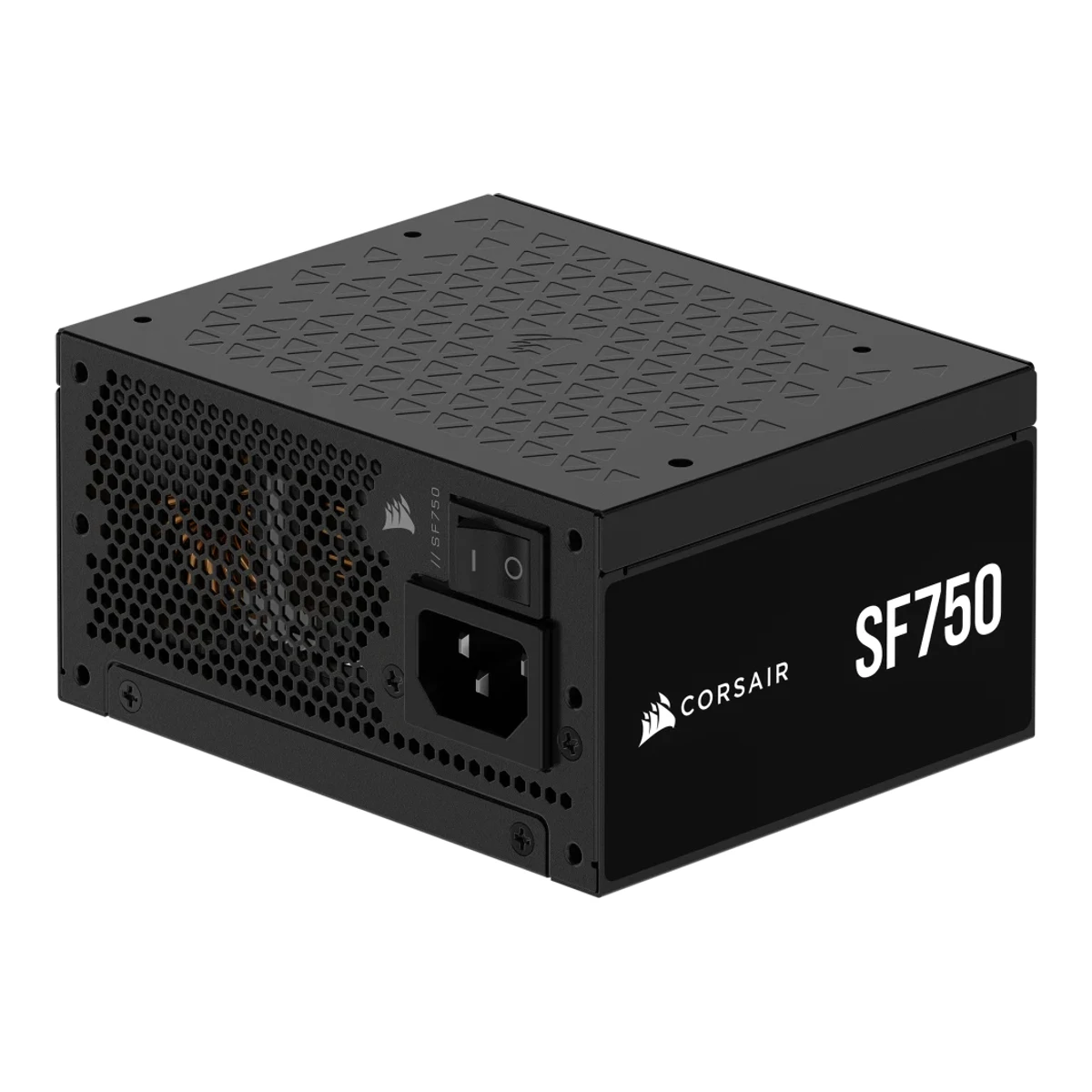

CORSAIRPower supply
SF750 (2024)
Released June 2024.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Review dated June 16, 2024 (structured data 2024-06-15). The 12V-2x6 cable and the 750W unit are the 2024 ATX v3.1 version. Corsair announced the line at Computex in early June 2024. Last checked 16 October 2026.
- Power
- 750W
- Efficiency
- 80 PLUS Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
54 of 66 fields known.
At a glance
Efficiency at 115V
Higher than 95% of other power supplies.
Efficiency at 230V
Higher than 89% of other power supplies.
General
- Model numbers
- CP-9020284-NA, CP-9020284-EU, CP-9020284-UK1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026SKU CP-9020284-NA. The power table prints model RPS0205 and part no. 75-006069, which are not stored as model numbers.9Retailer pageamazon.com/dp/B0D45QCZHXRead 15 October 2026Item details: Model Number CP-9020284-NA.10Retailer pagesenetic.co.il/product/CP-9020284-EURead 15 October 2026Part number CP-9020284-EU.11Retailer pageawd-it.co.uk/corsair-sf-series-2024-sf750-80-plus-platinum-fully-modular-power-supply-cp-9020284-uk.htmlRead 15 October 2026Product code CP-9020284-UK.
- GTIN / EAN
- 840006676331, 840006676300, 8400066763559Retailer pageamazon.com/dp/B0D45QCZHXRead 15 October 2026Item details: UPC 840006676331 and Mfr Part Number CP-9020284-NA. The check digit is valid.10Retailer pagesenetic.co.il/product/CP-9020284-EURead 15 October 2026Part number CP-9020284-EU with EAN 0840006676300. Hinta.fi and a Danish retailer list the same code. The check digit is valid.11Retailer pageawd-it.co.uk/corsair-sf-series-2024-sf750-80-plus-platinum-fully-modular-power-supply-cp-9020284-uk.htmlRead 15 October 2026Product CP-9020284-UK with EAN 0840006676355. Teqex and Currys list the same code. The check digit is valid.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Form factor
- SFX1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: PSU Form Factor SFX.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026
- ATX version
- ATX 3.11Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Overview: ATX 3.1 compliant. Tech Specs: ATX12V Version 3.1. Formally certified for ATX 3.1.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: ATX12V Version 3.1, PCIe Version 5.1 Ready.
- PCIe CEM version
- PCIe 5.11Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Overview: ATX 3.1 compliant, supporting PCIe 5.1.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026
- Modular cables
- Fully modular1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Modular Fully, Type 5 Micro-Fit connectors.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026DUT Information: Cable Design Fully Modular.
- Built by (OEM)
- Great Wall6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026DUT Information: OEM/ODM Great Wall. Parts description: Manufacturer (OEM) Great Wall.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Manufacturer (OEM) Great Wall.
Power
- Rated continuous power
- 750W1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Continuous Power W 750 Watts and Total Power 750W.
- Full power rated up to
- 50°C1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Continuous Output Rated Temp C 50 C. Overview: 50 C continuous operating temperature.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: Continuous Operating Temperature 50 C.
- 12V rail design
- Single rail3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Power output table text: the power supply uses a single +12V power rail.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 62.5A1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Power table: +12V 62.5A, 750W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 power table: +12V 62.5A, 750W, model RPS0205.
- +12V max power
- 750W1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Power table: +12V 62.5A, 750W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 power table: +12V 62.5A, 750W.
- +3.3V and +5V combined power
- 130W1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Power table: +3.3V 20A and +5V 20A with one 130W cell next to +3.3V. The Corsair explainer names it +5V and +3.3V max output 130W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 power table: +3.3V 20A 130W and +5V 20A.
- +5V standby current
- 3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Power table: +5VSB 3A, 15W.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 power table: +5Vsb 3A, 15W.
- AC input voltage
- Lowest100Highest240V1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Power table: AC input 100-240V, input current 10A-5A, 47-63Hz.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 power table: AC input 100V-240V, input current 10A-5A, 47Hz-63Hz.
- Alternative low power mode (ALPM)
- Yes6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Alternative Low Power Mode support Yes.
Certifications
- 80 PLUS rating
- 80 PLUS Platinum1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: 80 PLUS Efficiency Platinum. The 80 PLUS listing is cited too.5Certification listclearesult.com/80plus/certified-psus/Corsair/RPS0205-CP-9020284-SF750-115V-Internal-7310Read 15 October 202680 PLUS ID 7310, model RPS0205 (CP-9020284) (SF750), type SFX, 750 W, 115V Internal, Platinum, certified 2024-02-22. RPS0205 is the power-table model on Corsair's product page, so the entry matches. The 80 PLUS list has no newer entry for this model.
- Cybenetics efficiency at 115V
- Cybenetics Platinum6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Report 24PS2352A, certification ID 252352, issued Feb 14, 2024, sample serial A7PCD4026018NT. The model name is SF750 Platinum (ATX v3.1). The ETA badge shows Platinum at 115V.
- Cybenetics efficiency at 230V
- Cybenetics Platinum6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026The ETA badge shows Platinum at 230V.
- Cybenetics noise at 115V
- A-1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Cybenetics Noise A-, with no input voltage. The Cybenetics report shows A- at both voltages.4Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: Cybenetics A- noise rating, which matches the Cybenetics report.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026The LAMBDA badge shows A- at 115V.
- Cybenetics noise at 230V
- A-1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Cybenetics Noise A-, with no input voltage. The Cybenetics report shows A- at both voltages.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026The LAMBDA badge shows A- at 230V.
Measured
- Average efficiency at 115V (measured)
- 90.86%6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Average over more than 1450 load combinations at 115V. Date of receipt Feb 6, 2024, testing date Feb 12, 2024, ambient 28-32 C.
- Average efficiency at 230V (measured)
- 92.589%6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 76.418%6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9886Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.951.
- Average noise at 115V (measured)
- 27.54dB(A)6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 26.17 dBA.
- Noise at full load at 115V (measured)
- 43.2dB(A)6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Typical load tests at 115V, 100% load row: 43.2 dB(A) at 3104 rpm fan speed.
- Standby power with no load at 115V (measured)
- 0.0465W6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0465 W. At 230V it is 0.1108 W.
- Hold-up time (measured)
- 16.7ms6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 16.70 ms, AC loss to PWR_OK 14.00 ms, PWR_OK inactive to DC loss 2.70 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 35.01mV6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 35.67 mV.
- 12V load regulation (measured)
- 0.08%6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.16%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 300 16-20AWG Not available CPU 8-pin (EPS, 4+4) 2 2 400 16AWG Not available PCIe 8-pin (6+2) 2 2 400 16AWG Not available 16-pin PCIe (revision not stated) 1 1 400 Not available 600 SATA power 8 2 100 18AWG Not available 4-pin Molex 3 1 100 18AWG Not available Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Cable listing: 1 ATX 24-pin 300 mm, 2 EPS 8-pin (4+4) 400 mm, 2 PCIe 8-pin (6+2) 400 mm, 1 12VHPWR (12+4) 400 mm, 1 SATA cable with 4 straight plugs and 1 with 4 right-angle plugs (100 mm to the first plug, 115 mm spacing, 445 mm total) and 1 PATA cable with 3 plugs (100 mm to the first plug, 115 mm spacing, 330 mm total). All lengths have a tolerance of 10 mm. PATA plugs are the 4-pin Molex plugs. The listing and the quick start guide say 12VHPWR, but the Corsair 12V-2x6 explainer lists the SF Series cable as a 12V-2x6 cable. The maker names it both ways, so it is stored as 16-pin PCIe. The page does not rate the cable. The 600 W rating comes from the Cybenetics report. Gauges come from the Cybenetics report.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 included cables: 1x ATX 24-pin 300 mm, 2x EPS 8-pin 400 mm, 2x PCIe 8-pin 400 mm, 1x 12VHPWR (12+4 pin) 400 mm, 1 SATA cable with 4 straight plugs, 1 with 4 right-angle plugs and 1 PATA cable with 3 plugs.4Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series (750W / 850W / 1000W): 12V-2x6 cable (Type-5 to 12V-2x6). The cable runs from two 8-pin Micro-Fit sockets on the PSU to a 12+4 pin plug, as the Hardware Busters review says. It is a cable of its own, not an adapter on another cable. The page does not rate the cable.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 16-20AWG, 2 x 4+4 pin EPS 16AWG, 2 x 6+2 pin PCIe 16AWG, 12+2 pin PCIe (600W) 16-24AWG, 2 SATA cables with 8 plugs in total 18AWG and 1 Molex cable with 3 plugs 18AWG, no in-cable capacitors. The 16-24AWG range of the 12V-2x6 cable includes the sideband wires, so no gauge is stored for it. The 600W rating is printed next to the 12-pin cable. Cybenetics lists 410 mm for the EPS and PCIe cables and 110 mm to the first SATA and Molex plug, which are not stored. Corsair's lengths are stored.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Cables page: the modular panel has nine sockets and the 12V-2x6 cable uses 2 x 8-pin Micro-Fit sockets, with no native 12V-2x6 socket. The cable table matches the Cybenetics report. The review text confirms two 6+2 pin PCIe cables and one 12+2 pin cable.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 2
- 16-pin GPU connectors
- 1
- SATA power connectors
- 8
- 4-pin Molex connectors
- 3
Fan
- Fan size
- 92mm1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Overview: 92mm PWM fan with Zero RPM mode.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026DUT Information: 92mm Fluid Dynamic Bearing Fan (NR092P).
- Fan bearing
- Fluid dynamic (FDB)1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Fan Bearing Technology Fluid Dynamic Bearing.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 20266Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026Parts description: Corsair NR092P, 92mm, 12V, 0.22A, Fluid Dynamic Bearing Fan.
- Fan mode
- Semi-passive1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Zero RPM Mode Yes. Overview: 92mm PWM fan with Zero RPM mode.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Fan noise levels: the 92mm PWM fan only starts when the load reaches about 40%. The SF750 stays at zero RPM up to 300W. The spinning also depends on internal temperature.6Measurementcybenetics.com/evaluations/psus/2352Read 15 October 2026DUT Information: Semi-Passive Operation checked. The typical load table shows the fan at 0 rpm from 10% to 40% load.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Semi-Passive Operation checked.
- Fan mode switch
- Not available
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026Safety and protection section: OVP, OCP on the 3.3V, 5V and 12V rails, OTP, SCP and OPP. UVP comes from the Corsair explainer.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: OVP, UVP, SCP, OTP and OPP. OCP is in the quick start guide and the HWBusters protection tests. NLO and surge and inrush protection come from the HWBusters review.4Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: OVP, OCP, OTP, SCP, OPP.7Reviewhwbusters.com/psus/corsair-sf750-atx-v3-1-psu-reviewRead 15 October 2026Protection Features page: OCP on 12V, 5V, 3.3V and 5VSB, OPP, OTP, SCP, NLO and SIP (surge MOV, inrush NTC thermistor and bypass relay) all shown. Fan failure protection is not present. The page has no OVP or UVP row.
- All-Japanese capacitors
- Yes1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Overview: 105 C-rated Japanese electrolytic capacitors. The Corsair 12V-2x6 explainer says 100% Japanese electrolytic capacitor rated at 105 C for the SF Series. The Cybenetics parts list also shows polymer capacitors from FPCAP, which the claim does not cover.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: 105 C Rated Japanese Capacitors Yes.4Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: 100% Japanese electrolytic capacitor rated at 105 C.
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width125Height63.5Depth100mm(4.9 × 2.5 × 3.9 in)2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF750 table: Length 100mm, Width 125mm, Height 63.5mm. Depth 100, width 125, height 63.5.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: Measurements 100mm x 125mm x 63.5mm.
In the box
- In the box
- Power cord, Mounting screws, Cable ties, SFX-to-ATX adapter bracket1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Package Contents tab: SF Series SFX Power Supply, Power cord, Mounting screws, Cable ties. The unit itself is not repeated in the list. The SFX-to-ATX bracket comes from the Corsair explainer.3Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: SFX-to-ATX Adapter Bracket Yes.
Links
- Product page
- www.corsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-na1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-series2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026Corsair SF Series quick start guide. It covers the SF750, SF850 and SF1000.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 7years1Maker product pagecorsair.com/us/en/p/psu/cp-9020284-na/sf-series-sf750-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020284-naRead 15 October 2026Tech Specs: Warranty 7 Year and the Overview says Seven-Year Warranty. The page is the US shop.2Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026CORSAIR SF Series PSUs have a 7-year warranty.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN |
|---|---|
| CP-9020284-NA | 840006676331 |
| CP-9020284-EU | 840006676300 |
| CP-9020284-UK | 840006676355 |
