PC parts / Power supplies

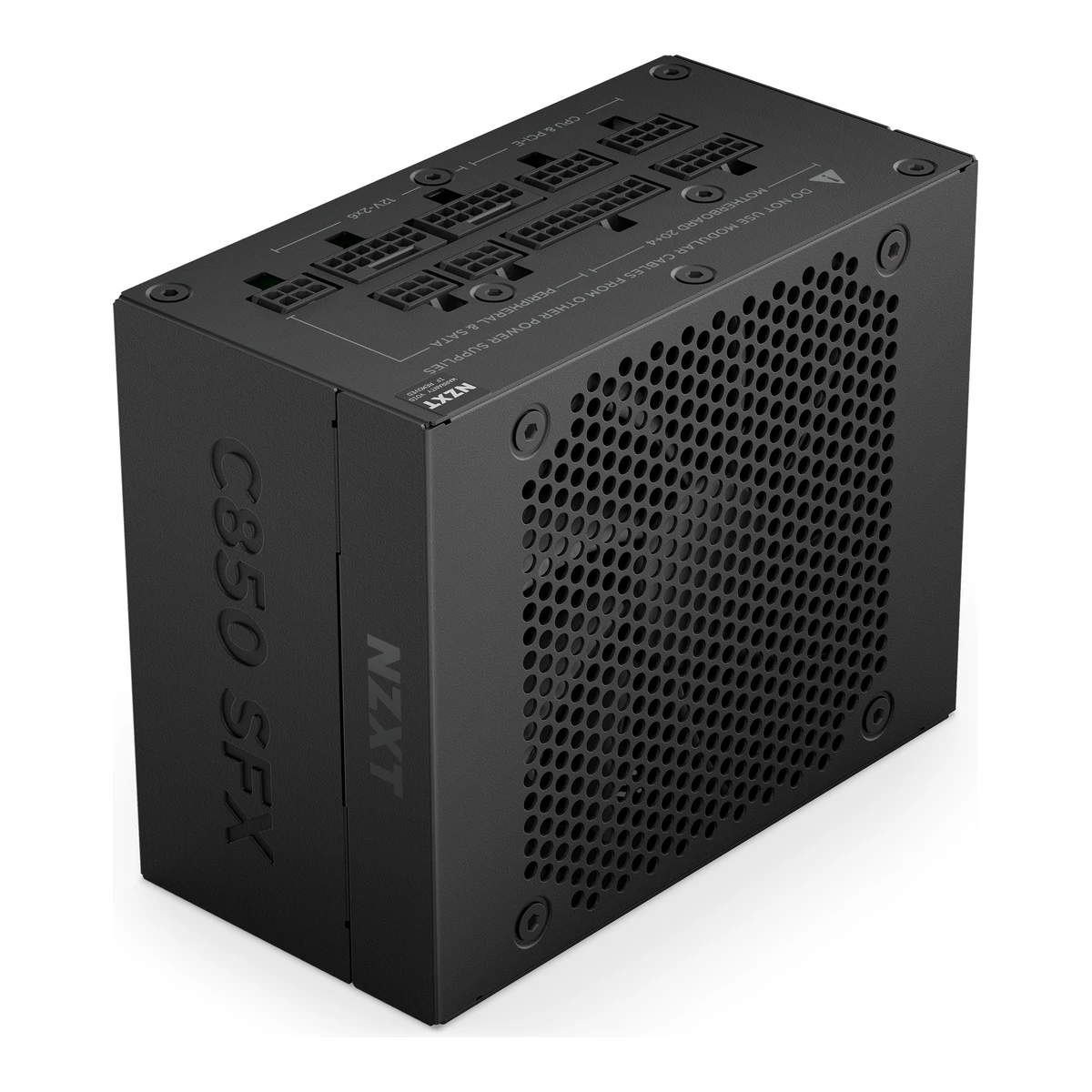

NZXT C850 SFX Gold

NZXTPower supply

C850 SFX Gold

Released February 2026.5Reviewclub386.com/nzxt-c850-sfx-gold-reviewRead 15 October 2026Review dated February 17, 2026. The NZXT store published the product on 2026-02-17 (Shopify product data) and IT Home reported the launch on 2026-02-18. Last checked 15 October 2026.

Power
850W
Efficiency
80 PLUS Platinum
Modular cables
Fully modular
ATX version
ATX 3.1

55 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
C Series1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026The page is in the Power Supplies group of the NZXT store, headed C850 SFX Gold. NZXT also sells the larger C850 Gold ATX 3.1 and C850 Gold Core, which are different products.
Model numbers
PS-8G1BB-US, PS-8G1BB-EU, PS-8G1BB-UK, PS-8G1BB-JP1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Model Number row: PS-8G1BB-US / PS-8G1BB-EU / PS-8G1BB-UK / PS-8G1BB-JP. The Shopify product data lists the US SKU PS-8G1BB-US at $199.99.
GTIN / EAN
810074847414, 810074847421, 810074847407, 8100748474381Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026UPC row: 810074847414 (US) / 810074847421 (EU) / 810074847407 (UK) / 810074847438 (JP). NZXT also lists an EAN per model, which is not stored.
Announced
February 20267Press articleithome.com/0/922/379.htmRead 15 October 2026IT Home article dated 2026-02-18 reports NZXT unveiling the C850 SFX Gold with its H2 Flow case. It gives an Asia-Pacific MSRP of 159.99 USD, which is not stored.
Status
Available1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026The page sells the product at $199.99 in black. Not stored as a launch price.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Color option Black.
Form factor
SFX1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Form Factor SFX. Dimensions 125 x 63.5 x 100 mm.
ATX version
ATX 3.11Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: ATX Version 3.1, Compliance Standard ATX12V v3.1 / EPS12V v2.92.
PCIe CEM version
PCIe 5.11Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Overview: With ATX 3.1 and PCIe 5.1 support, power is prepared for today and the future. FAQ: ATX 3.1 and PCIe 5.1 compliant.
Modular cables
Fully modular1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Modular Fully modular.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026DUT Information, Manufacturer-Provided Information: Cable Design Fully Modular.
Built by (OEM)
Channel Well Technology (CWT)3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026DUT Information and Parts Description: OEM/ODM CWT. Igor's Lab names Channel Well Technology (CWT). Club386 says HEC, which the Cybenetics parts list does not support.6Reviewigorslab.de/en/nzxt-c850-sfx-gold-power-supply-review-sufficient-power-for-small-cases-with-platinum-coatingRead 15 October 2026Review dated May 4, 2026: OEM Channel Well Technology (CWT). The model line says Cybenetics DUT PS-2402, EU SKU PS-8G1B-EU.

Power

Rated continuous power
850W1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Wattage 850 W.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
Full power rated up to
50°C3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026DUT Information, Manufacturer-Provided Information: Operating Temperature (Continuous Full Load) 0 - 50 °C. Cybenetics marks it as manufacturer-provided, so 50 °C is stored. Club386 also says 850W continuous at up to 50°C ambient.5Reviewclub386.com/nzxt-c850-sfx-gold-reviewRead 15 October 2026Specs and features: 850W continuous at up to 50°C ambient. Detailed inspection: NZXT rates it at the full 850W at an ambient temperature of up to 50°C.
12V rail design
Single rail3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Power Specifications lists one +12V rail at 70.83 A. The 12V OCP test tripped at 89.40 A (126.22 percent of 70.83 A) at 29 °C, so one over-current limit covers the full rated +12V current. Club386 calls it a single 12V rail.5Reviewclub386.com/nzxt-c850-sfx-gold-reviewRead 15 October 2026Specs and features: single 12V rail rated at 70.83A (850W).
+12V max current
70.83A1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026DC Output Rating: +12 V 70.83 A (850 W).2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
+12V max power
850W1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026DC Output Rating: +12 V 70.83 A (850 W).2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
+3.3V and +5V combined power
100W1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026DC Output Rating: +3.3 V and +5 V 20 A (100 W), printed as one limit for both rails.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
+5V standby current
3A1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026DC Output Rating: 5VSB 3 A (15 W).2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
AC input voltage
Lowest100Highest240V1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026AC Input Rating: 100 - 240 Vac, 10 - 5 A, 50 - 60 Hz.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
Alternative low power mode (ALPM)
Yes3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
80 PLUS Platinum4Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/NZXT_PS-2402_850W_SOCE%207944_Report.pdfRead 15 October 202680 PLUS ID 7944, model PS-2402, type ATX 3.1, 850W, test date 2025-08-27: Platinum at 115V, 91.09% at 20%, 92.14% at 50% and 89.20% at 100% load. These match NZXT's 91.1, 92.1 and 89.2 percent, and Igor's Lab names PS-2402 as the Cybenetics DUT of the C850 SFX Gold. NZXT's page says 80 PLUS Gold. The list level is stored.
Cybenetics efficiency at 115V
Cybenetics Platinum1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Cybenetics Efficiency Platinum, with no input voltage. The Cybenetics report shows Platinum at both voltages.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Report 25PS2904A, certification ID 252904, issued Aug 20, 2025. ETA Platinum at 115V (Cybenetics database feed, id 2904).
Cybenetics efficiency at 230V
Cybenetics Platinum1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Cybenetics Efficiency Platinum, with no input voltage. The Cybenetics report shows Platinum at both voltages.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026ETA Platinum at 230V (Cybenetics database feed, id 2904).
Cybenetics noise at 115V
A-1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Cybenetics Noise A-, with no input voltage. The Cybenetics report shows A- at both voltages.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026LAMBDA A- at 115V (Cybenetics database feed, id 2904).
Cybenetics noise at 230V
A-1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Cybenetics Noise A-, with no input voltage. The Cybenetics report shows A- at both voltages.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026LAMBDA A- at 230V (Cybenetics database feed, id 2904).

Measured

Average efficiency at 115V (measured)
89.887%3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Average over more than 1450 load combinations at 115V. Received Jul 10, 2025, tested Aug 16, 2025, no serial number printed. Ambient 28-32 C.
Average efficiency at 230V (measured)
91.826%3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
74.457%3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
Average power factor at 115V (measured)
0.9893Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Average over more than 1450 load combinations at 115V.
Average noise at 115V (measured)
25.29dB(A)3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 25.39 dBA.
Noise at full load at 115V (measured)
44.5dB(A)3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Typical load tests at 115V, 100% load row: 44.5 dB(A) at 2739 rpm fan speed, intake 45.98 C. At 230V it is 44.0 dB(A) at 2642 rpm.
Standby power with no load at 115V (measured)
0.0299W3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0299 W.
Hold-up time (measured)
19.9ms3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 19.9 ms, AC loss to PWR_OK 16.8 ms, PWR_OK inactive to DC loss 3.1 ms, at maximum continuous load. The report names no input voltage.
12V ripple at full load (measured)
29.46mV3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 30.05 mV.
12V load regulation (measured)
0.29%3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Non-accredited measurement. 12V load regulation at 115V. At 230V it is 0.35%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1135016AWGNot available
CPU 8-pin (EPS, 4+4)1147016AWGNot available
PCIe 8-pin (6+2)3247016-18AWGNot available
12V-2x611470Not available600
SATA power6210018AWGNot available
4-pin Molex3110018AWGNot available
Source1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Cable Length & Connector Quantity: 24-pin ATX 350 mm (1), 4+4-pin CPU 470 mm (1), 6+2-pin PCIe 470 mm (1), 16-pin (PSU) to dual 8-pin (6+2) PCIe 470 mm (2), 16-pin (12+4) 12V-2x6 PCIe 470 mm (1), SATA 100 + 100 mm (6), peripherals 100 + 100 mm (3). Inside the Box lists one dual 8-pin cable, one single 6+2-pin cable, two SATA cables and one peripherals cable. The dual 8-pin cable has a 16-pin plug at the PSU end, so it counts as PCIe 8-pin with 2 plugs. The manual lists the 12V-2x6 cable as option 1 and the 6+2-pin or dual 8-pin cable as option 2, and the dual 8-pin cable plugs into the 12V-2x6 socket on the PSU. The lengths are the maker's. Wire gauges and the 600 W rating of the 12V-2x6 cable come from Cybenetics and the overview text (a 600W 12V-2x6 connector). Cybenetics lists 475 mm and 105 mm for the same cables. It counts the dual 8-pin cable as 2 cables, which is not used. The 12V-2x6 gauge is a 16-24AWG range that includes sideband wires, so none is stored.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026Component list: 24-pin ATX x1, 4+4-pin CPU x1, 6+2-pin PCIe x1, 16-pin (PSU) to dual 8-pin (6+2) PCIe x1, 16-pin (12+4) 12V-2x6 PCIe x1, SATA x2, peripherals x1. Specification page 15: lengths 350, 470, 470, 470 and 470 mm, SATA 100 + 100 + 100 mm (6 connectors) and peripherals 100 + 100 + 100 mm (3 connectors). The panel on page 5 has MOTHERBOARD 20+4, PERIPHERAL & SATA, CPU & PCI-E and 12V-2x6 sockets. Step 4 lists the 12V-2x6 cable as option 1 and the 6+2-pin or dual 8-pin cable as option 2.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Cables and Connectors table: ATX 24 pin 16AWG, 4+4 pin ATX12V 16AWG, 2x 6+2 pin PCIe (2 cables, 4 connectors) and 6+2 pin PCIe both 16-18AWG, 12+4 pin PCIe (600W) 16-24AWG, SATA 18AWG (2 cables, 6 connectors), 4-pin Molex 18AWG (1 cable, 3 connectors). The 600 W rating is for the 12V-2x6 cable.
CPU (EPS) connectors
1
PCIe 8-pin connectors
3
16-pin GPU connectors
1
SATA power connectors
6
4-pin Molex connectors
3
Cable style
Embossed or debossed flat1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Cable Type Individually embossed with cable comb.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026

Fan

Fan size
92mm1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Fan Specs: Size 92 mm, PWM, 3,500 +/- 10% RPM.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 20263Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Cooling: 92mm Fluid Dynamic Bearing Fan (HA9215SH12FD-F00).
Fan bearing
Fluid dynamic (FDB)1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Fan Specs: Bearing Fluid dynamic bearing.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 20263Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Cooling: Fluid Dynamic Bearing Fan.
Fan mode
Semi-passive1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Fan Specs: Zero RPM Fan Mode Yes.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026Fan Spec page 14: Zero RPM Fan Mode Yes.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026DUT Information: Semi-Passive Operation checked.
Fan mode switch
No5Reviewclub386.com/nzxt-c850-sfx-gold-reviewRead 15 October 2026Detailed inspection: there is no specific button to toggle semi-passive operation.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Electrical Features: OVP, UVP, SCP, OTP, OPP and OCP. NLO and SIP come from the Cybenetics protection tests.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026Electrical Features page 15: OVP, UVP, SCP, OTP, OPP, OCP.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Protection Features: OCP, OPP, OTP and SCP on all rails, NLO checked, UVP passed at 90 V full load and at 80 V, surge protection by MOV and inrush protection by NTC and bypass relay. Fan failure protection is marked absent.
All-Japanese capacitors
Yes1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Capacitors All 105°C-rated Japanese. The overview says 100% Japanese capacitors rated to 105°C.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 20263Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026Parts Description: bulk capacitor Rubycon, electrolytic Rubycon and Nippon Chemi-con, polymer Nichicon FPCAP and Nippon Chemi-con. All are Japanese makers, which agrees with NZXT.
MTBF (claimed)
100,000h1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Operation: MTBF 100,000 hours. The page does not state the test temperature.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026Operation page 15: MTBF 100,000 hours, Temperature 0 - 50°C.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width125Height63.5Depth100mm(4.9 × 2.5 × 3.9 in)1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: width 125 mm, height 63.5 mm, depth 100 mm.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026
Weight
0.97kg(2.1 lb)1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Weight 0.97 kg (2.1 lb). Cybenetics measured 0.966 kg. The page does not say whether cables are included.3Measurementcybenetics.com/evaluations/psus/2904Read 15 October 2026DUT Information: Weight 0.966 kg (2.13 lb), the same as the maker's 0.97 kg.

In the box

In the box
C850 SFX Gold, AC Power Cord, Installation Accessories1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Inside the Box: C850 SFX Gold, 24-pin ATX, 4+4-pin CPU, 6+2-pin PCIe, 16-pin (PSU) to dual 8-pin (6+2) PCIe, 16-pin (12+4) 12V-2x6, 2x SATA, peripherals cable, AC Power Cord, Installation Accessories. The manual adds 4 #6-32 screws. The AC cord differs per region.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026Component list: power supply, cables, 4 #6-32 screws, AC power cord.

Warranty

Manufacturer warranty (source market)
10years1Maker product pagenzxt.com/products/c850-sfx-goldRead 15 October 2026Tech Specs: Warranty 10 years. The page is the US store.2Owner's manualcdn-g.nzxt.com/dl/PSU_C850_SFX_Gold_Digital_Manual_V6_260213.pdfRead 15 October 2026

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINMarkets
PS-8G1BB-US810074847414US
PS-8G1BB-EU810074847421EU
PS-8G1BB-UK810074847407GB
PS-8G1BB-JP810074847438JP

Sources

We read 7 sources for this power supply. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 33 fields
  2. Read 15 October 2026Backs 18 fields
  3. Read 15 October 2026Backs 26 fields
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 4 fields
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 1 field
