PC parts / Power supplies

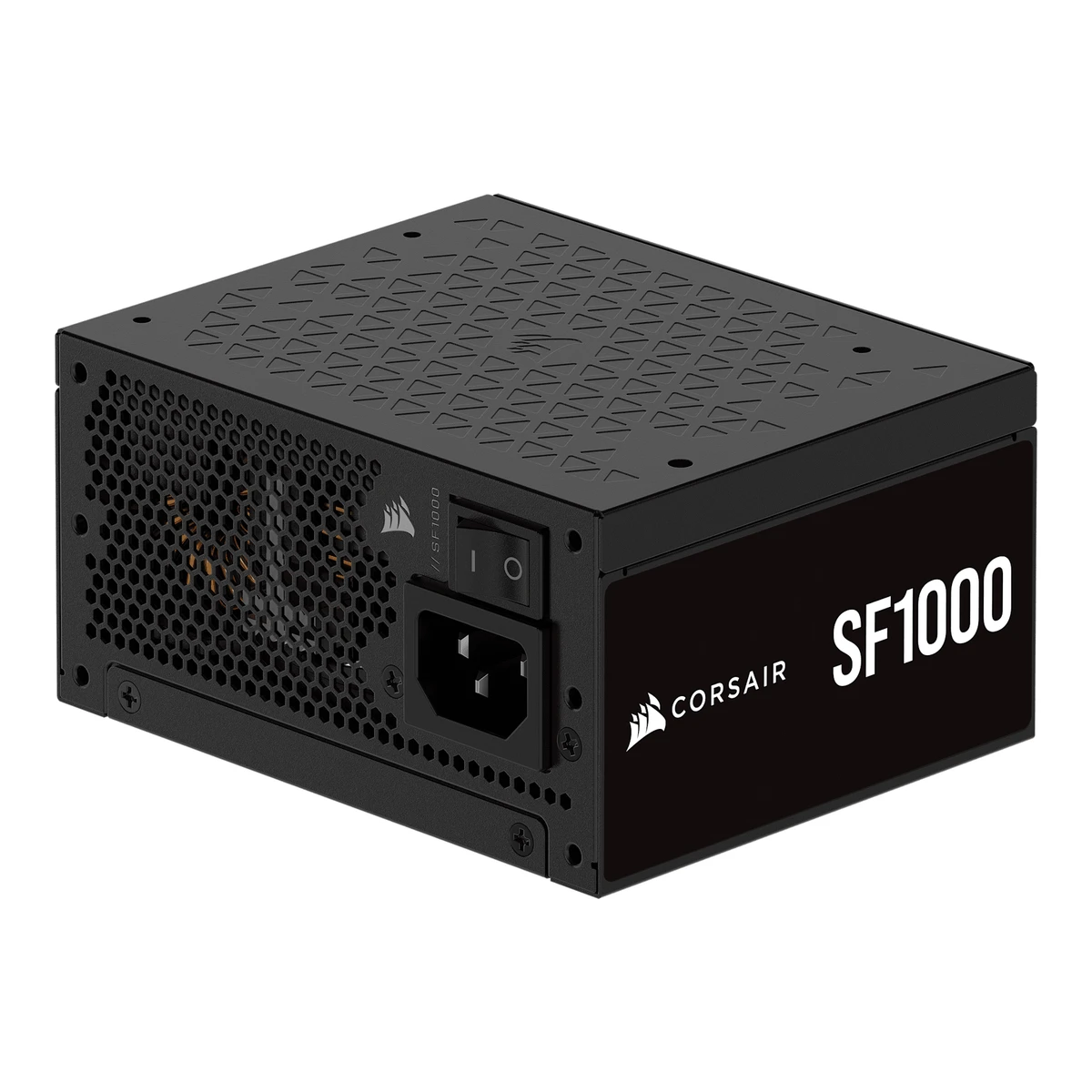

CORSAIRPower supply
SF1000 (2024)
Released July 2024.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026The article presents the 2024 line-up of the SF Series and lists the SF1000 with SKU CP-9020257. It is undated. Corsair's page images for the product were uploaded between 9 and 11 July 2024. Last checked 16 October 2026.
- Power
- 1,000W
- Efficiency
- 80 PLUS Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
53 of 66 fields known.
At a glance
Efficiency at 115V
Higher than 85% of other power supplies.
Efficiency at 230V
Higher than 83% of other power supplies.
General
- Model numbers
- CP-9020257-NA, CP-9020257-EU, CP-9020257-UK1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026SKU CP-9020257-NA. The power table prints model RPS0176 and part no. 75-005386, which are not stored as model numbers.2Maker product pagecorsair.com/eu/en/p/psu/cp-9020257-eu/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-eu-cp-9020257-euRead 15 October 2026Corsair EU shop: SKU CP-9020257-EU, same power table, cable listing and Tech Specs as the US page.10Retailer pageamazon.com/dp/B0D45RN3KZRead 15 October 2026Item details: Model Number CP-9020257-NA.12Retailer pageamazon.com/dp/B0D5HT2L96Read 15 October 2026Item details: Mfr Part Number CP-9020257-UK. Corsair's UK page was not read.
- GTIN / EAN
- 840006663409, 840006663379, 84000666342310Retailer pageamazon.com/dp/B0D45RN3KZRead 15 October 2026Item details: UPC 840006663409 and Mfr Part Number CP-9020257-NA.11Retailer pageamazon.com/dp/B0D5HYSKHLRead 15 October 2026Item details: UPC 840006663379. A second shop, datafox.ee, lists EAN 840006663379 with MPN CP-9020257-EU.12Retailer pageamazon.com/dp/B0D5HT2L96Read 15 October 2026Item details: UPC 840006663423 and Mfr Part Number CP-9020257-UK.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Form factor
- SFX1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: PSU Form Factor SFX.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026
- ATX version
- ATX 3.11Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Overview: ATX 3.1 compliant. Tech Specs: ATX12V Version 3.1. SF Series PSUs are formally certified for ATX 3.1 compliance.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: ATX12V Version 3.1, PCIe Version 5.1 Ready.
- PCIe CEM version
- PCIe 5.11Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Overview: ATX 3.1 compliant, supporting PCIe 5.1.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026
- Modular cables
- Fully modular1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Modular Fully, Type 5 Micro-Fit connectors.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026DUT Information: Cable Design Fully Modular.
- Built by (OEM)
- Great Wall7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026DUT Information: OEM/ODM Great Wall. Parts description: Manufacturer (OEM) Great Wall. The Igor's Lab copy of the review says CWT, which is not stored.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Manufacturer (OEM) Great Wall.
Power
- Rated continuous power
- 1,000W1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Continuous Power W 1000 Watts and Total Power 1000W.
- Full power rated up to
- 50°C1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Continuous Output Rated Temp C 50 C. Overview: 50 C continuous operating temperature.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: Continuous Operating Temperature 50 C.
- 12V rail design
- Single rail4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Power output table text: the power supply uses a single +12V power rail.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Number of 12V rails 1.
- +12V max current
- 83.3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Power table: +12V 83.3A, 1000W.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 power table: +12V 83.3A, 1000W.
- +12V max power
- 1,000W1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Power table: +12V 83.3A, 1000W.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 power table: +12V 83.3A, 1000W.
- +3.3V and +5V combined power
- 130W1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Power table: +3.3V 20A and +5V 20A with one 130W cell next to +3.3V. The Corsair explainer names it +5V and +3.3V max output 130W.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 power table: +3.3V 20A 130W and +5V 20A.
- +5V standby current
- 3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Power table: +5VSB 3A, 15W.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 power table: +5Vsb 3A, 15W.
- AC input voltage
- Lowest100Highest240V1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Power table: AC input 100-240V, input current 12A-6A, 47-63Hz.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 power table: AC input 100V-240V, input current 12A-6A, 47Hz-63Hz.
- Alternative low power mode (ALPM)
- Yes7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Temperature and Compliance Info: ALPM compatible, checked.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Alternative Low Power Mode support Yes.
Certifications
- 80 PLUS rating
- 80 PLUS Platinum1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: 80 PLUS Efficiency Platinum. The 80 PLUS listing is cited too.6Certification listclearesult.com/80plus/certified-psus/Corsair/RPS0176-CP-9020257-SF1000-115V-Internal-7169Read 15 October 202680 PLUS ID 7169, model RPS0176 (CP-9020257) (SF1000), type ATX12V, SFX, 1000 W, 115V Internal, Platinum, test date 2023-10-03. The certificate lists no sample serial. The model code RPS0176 is the power-table model on Corsair's product page, so the entry matches. The test date is older than the 2024 SF1000, and the 80 PLUS list has no newer entry for it.
- Cybenetics efficiency at 115V
- Cybenetics Platinum7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Report 24PS2505A, certification ID 252505, issued Jul 19, 2024, sample serial A2MGD413A773B7. The Cybenetics database lists SF1000 Platinum (ATX v3.1) at ETA Platinum for 115V.
- Cybenetics efficiency at 230V
- Cybenetics Platinum7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026The database lists ETA Platinum at 230V.
- Cybenetics noise at 115V
- A-5Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: Cybenetics A- noise rating, which matches the Cybenetics report. The Corsair product page prints Standard++ for the same unit.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026The database lists LAMBDA A- at 115V. Corsair's product page prints Standard++, which the Cybenetics report does not support.
Measured
- Average efficiency at 115V (measured)
- 90.639%7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Average over more than 1450 load combinations at 115V. Date of receipt Jul 4, 2024, testing date Jul 18, 2024, ambient 28-32 C.
- Average efficiency at 230V (measured)
- 92.473%7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 73.744%7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9847Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.944.
- Average noise at 115V (measured)
- 26.53dB(A)7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 24.97 dBA.
- Noise at full load at 115V (measured)
- 44.2dB(A)7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Typical load tests at 115V, 100% load row: 44.2 dB(A) at 3234 rpm fan speed. At 230V it is 43.0 dB(A) at 3081 rpm.
- Standby power with no load at 115V (measured)
- 0.0452W7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Standby power consumption at 115V with no load on +5VSB: 0.0452 W. At 230V it is 0.1073 W.
- Hold-up time (measured)
- 19.5ms7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 19.5 ms, AC loss to PWR_OK 18.5 ms, PWR_OK inactive to DC loss 1.0 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 31.46mV7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 32.67 mV.
- 12V load regulation (measured)
- 0.1%7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.21%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 300 Not available Not available CPU 8-pin (EPS, 4+4) 2 2 400 16AWG Not available PCIe 8-pin (6+2) 4 4 400 16AWG Not available 16-pin PCIe (revision not stated) 1 1 400 Not available 600 SATA power 8 2 100 18AWG Not available 4-pin Molex 3 1 100 18AWG Not available Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Cable listing: 1 ATX 24-pin 300 mm, 2 EPS 8-pin (4+4) 400 mm, 4 PCIe 8-pin (6+2) 400 mm, 1 12VHPWR (12+4) pin 400 mm, 1 SATA cable with 4 straight plugs and 1 with 4 right-angle plugs (100 mm to the first plug, 115 mm spacing, 445 mm total) and 1 PATA cable with 3 plugs (100 mm to the first plug, 115 mm spacing, 330 mm total). All lengths have a tolerance of 10 mm. PATA plugs are the 4-pin Molex plugs. The listing and the quick start guide say 12VHPWR, but the Overview calls the GPU cable a PCIe 5.1 12V-2x6 cable and the Corsair 12V-2x6 explainer lists it as a 12V-2x6 cable. The maker names it both ways, so it is stored as 16-pin PCIe. The page does not rate the cable. Gauge comes from the Cybenetics report.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 included cables: 1x ATX 24-pin 300 mm, 2x EPS 8-pin 400 mm, 4x PCIe 8-pin 400 mm, 1x 12VHPWR (12+4 pin) 400 mm, 1 SATA cable with 4 straight plugs, 1 with 4 right-angle plugs and 1 PATA cable with 3 plugs.5Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series (750W / 850W / 1000W): 12V-2x6 cable (Type-5 to 12V-2x6). The cable runs from two 8-pin Micro-Fit sockets on the PSU to a 12+4 pin plug, as the SF1000 gallery image and the Hardware Busters review show. It is a cable of its own, not an adapter on another cable. The gallery image labels it 600W 12V-2x6.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Cables and Connectors table: ATX 24 pin 300 mm 16-22AWG, 2 x 4+4 pin EPS 400 mm 16AWG, 4 x 6+2 pin PCIe 400 mm 16AWG, 12+2 pin PCIe (600W) 410 mm 16-24AWG, 2 SATA cables with 8 plugs in total 18AWG and 1 Molex cable with 3 plugs 18AWG. The 16-24AWG range of the 12V-2x6 cable includes the sideband wires, so no gauge is stored for it. The ATX gauge is not stored because the Hardware Busters copy prints 16-20AWG and 310 mm. The 600W rating is printed next to the 12-pin cable. Corsair's 400 mm cable length is stored.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Cables page: the review sample had 3 PCIe 6+2 cables, while Corsair's list and the Cybenetics report have 4. The review says the back panel has ten sockets and the 12V-2x6 cable uses 2 x 8-pin Micro-Fit sockets. It also says an SFX-to-ATX adapter is in the bundle.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 4
- 16-pin GPU connectors
- 1
- SATA power connectors
- 8
- 4-pin Molex connectors
- 3
Fan
- Fan size
- 92mm1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Fan Size MM 92mm.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026DUT Information: 92mm Fluid Dynamic Bearing Fan (NR092P).
- Fan bearing
- Fluid dynamic (FDB)1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Fan Bearing Technology Fluid Dynamic Bearing.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 20267Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Parts description: Corsair NR092P, 92mm, 12V, 0.22A, Fluid Dynamic Bearing Fan.
- Fan mode
- Semi-passive1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Zero RPM Mode Yes. The Corsair explainer says the fan starts at about 40% load.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Fan noise levels: the 92mm PWM fan stays at zero RPM up to 400W on the SF1000 and starts at about 40% load. The spinning also depends on internal temperature.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026DUT Information: Semi-Passive Operation checked. The typical load table shows the fan at 0 rpm up to 40% load.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Semi-Passive Operation checked.
- Fan mode switch
- Not available
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026Safety and protection section: OVP, OCP on the 3.3V, 5V and 12V rails, OTP, SCP and OPP. UVP comes from the Corsair explainer.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: OVP, UVP, SCP, OTP and OPP. OCP is in the quick start guide and the Cybenetics tests. NLO and surge and inrush protection come from the Cybenetics report.5Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: OVP, OCP, OTP, SCP, OPP.7Measurementcybenetics.com/evaluations/psus/2505Read 15 October 2026Protection Features page: OPP, +12V OCP, OTP, SCP, surge protection by MOV and inrush protection by NTC thermistor and relay, all ticked. The protection tests show NLO ticked, with no fan failure protection. OVP and UVP are in Corsair's own lists. The Protection Features (Manufacturer) block has no OVP or UVP row.8Reviewhwbusters.com/psus/corsair-sf1000-atx-v3-1-psu-reviewRead 15 October 2026Protection Features page: OCP, OPP, OTP, SCP, NLO and SIP tested, same results as the Cybenetics report.
- All-Japanese capacitors
- Yes1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Overview: built with 100% industrial-grade, 105 C rated Japanese electrolytic capacitors. The Cybenetics parts list also shows polymer capacitors from United Chemi-Con and FPCAP, which the claim does not cover.5Maker product pagecorsair.com/us/en/explorer/diy-builder/power-supply-units/which-corsair-psus-have-a-12v-2x6-connectorRead 15 October 2026SF Series: 100% Japanese electrolytic capacitor rated at 105 C.
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width125Height63.5Depth100mm(4.9 × 2.5 × 3.9 in)3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026SF1000 table: Length 100mm, Width 125mm, Height 63.5mm. Depth 100, width 125, height 63.5.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: Measurements 100mm x 125mm x 63.5mm.
In the box
- In the box
- Power cord, Mounting screws, Cable ties, SFX-to-ATX adapter bracket1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Package Contents tab: SF Series SFX Power Supply, Power cord, Mounting screws, Cable ties. The unit itself is not repeated in the list. The SFX-to-ATX bracket comes from the Corsair explainer.4Maker product pagecorsair.com/explorer/diy-builder/power-supply-units/sf750sf850sf1000-platinum-atx-31-everything-you-need-to-knowRead 15 October 2026Technical specifications: SFX-to-ATX Adapter Bracket Yes.9Reviewfunkykit.com/reviews/power-supplies/corsair-sf1000-platinum-atx-3-1-power-supply-reviewRead 15 October 2026Box contents: one 24-pin ATX cable, two 4+4 pin CPU cables, four 6+2 pin PCIe cables, one 16-pin 12VHPWR cable, two SATA cables, one Molex cable and an ATX bracket.
Links
- Product page
- www.corsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-na1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-series3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026Corsair SF Series quick start guide. It covers the SF750, SF850 and SF1000.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 7years1Maker product pagecorsair.com/us/en/p/psu/cp-9020257-na/sf-series-sf1000-fully-modular-80-plus-platinum-sfx-power-supply-cp-9020257-naRead 15 October 2026Tech Specs: Warranty 7 Year and the Overview says Seven-Year Warranty. The page is the US shop.3Owner's manualcorsair.com/us/en/explorer/diy-builder/power-supply-units/corsair-sf-seriesRead 15 October 2026CORSAIR SF Series PSUs have a 7-year warranty.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN |
|---|---|
| CP-9020257-NA | 840006663409 |
| CP-9020257-EU | 840006663379 |
| CP-9020257-UK | 840006663423 |
