PC parts / SSDs

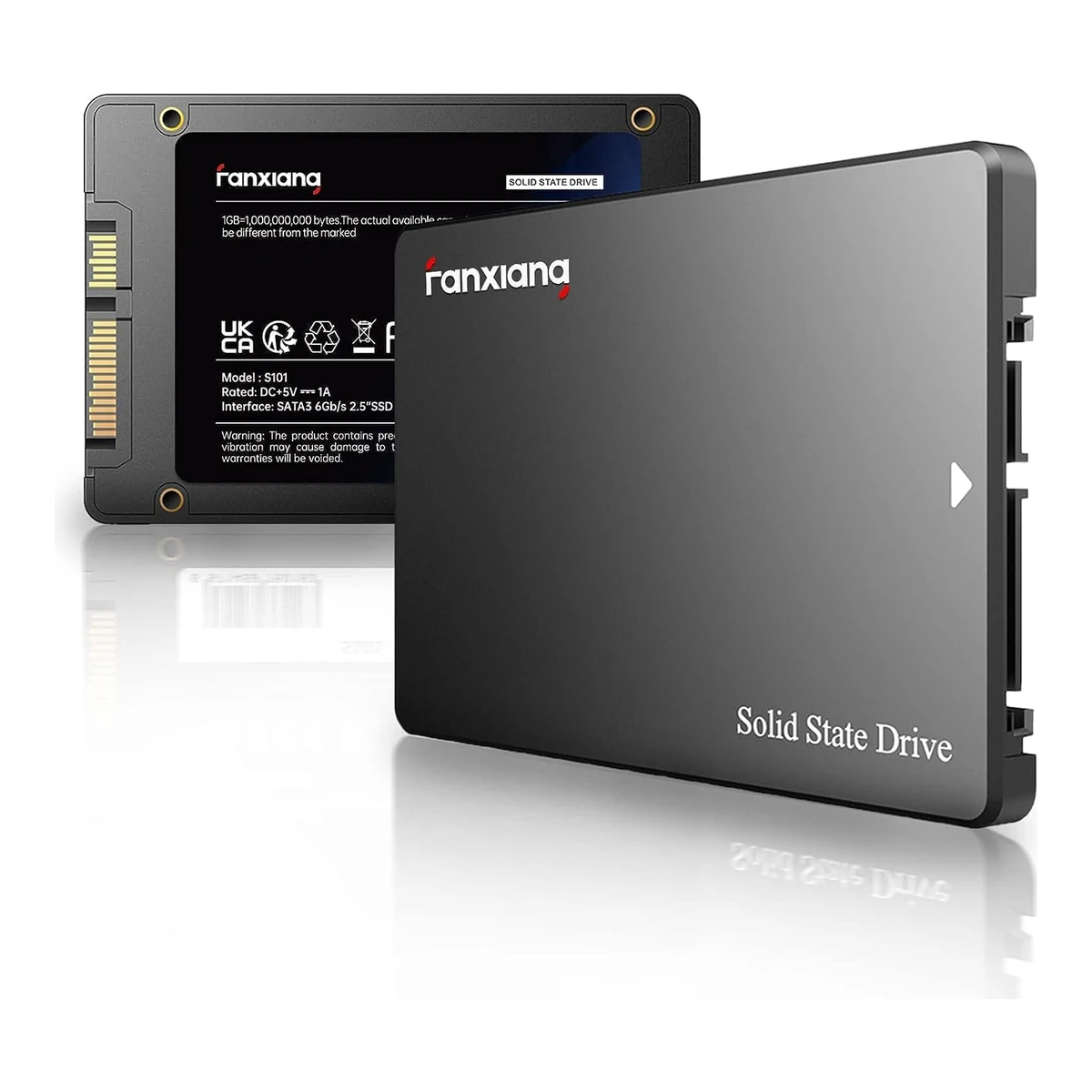

Fanxiang S101

FanxiangSSD

S101

Released April 2022.4Retailer pageweb.archive.org/web/20230319021926/https://www.amazon.com/dp/B09XDJ673FRead 16 October 2026Archived Amazon US 1TB listing of 2023-03-19: Date First Available April 7, 2022. The maker's store product was created on 2023-05-22, so the Amazon date is the earliest evidence Last checked 21 October 2026.

Interface
SATA
Form factor
2.5-inch
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB, 4 TB
Read speed
520MB/s

20 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
S1013Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Item details read Model Number S101 and Mfr Part Number S101
GTIN / EAN
792288883696, 792288883702, 792288883719, 792288883726, 7922888837332Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssd.jsonRead 16 October 2026Store product feed barcodes: 792288883696 (256GB), 792288883702 (512GB), 792288883719 (1TB), 792288883726 (2TB), 792288883733 (4TB). All five are valid UPC-A codes. The feed lists store SKUs 1.SA.S1012569, 1.SA.S1015128, 1.SA.110101T7, 1.SA.S10102T7 and 1.SA.S10104T1 in the same order, which are not stored as model numbers
Announced
Not available
Status
Available1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Fanxiang store page has Add to cart for 128GB, 256GB, 512GB, 1TB, 2TB and 4TB. It also lists 250GB and 500GB options with no data, which are not stored3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Amazon US 1TB listing in stock on 2026-10-16, sold by LDCEMS, with about 23,700 ratings
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Additional details read Color black
Form factor
2.5-inch1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Gallery images and the title read 2.5 inch SATA III. A gallery image reads 7 mm thickness
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB, 4 TB1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Capacity selector and the parameter image read 128GB, 256GB, 512GB, 1TB, 2TB and 4TB

Interface

Interface
SATA1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Specifications table reads SATA III. The page text reads SATA III 6Gb/s
PCIe generation
Not available
PCIe lanes
Not available
NVMe version
Not available
Detachable cable
Not available

Hardware

Controller
Not available
Flash type
TLC3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Title and bullets read 3D NAND TLC chips, and the brand's feature banner reads TLC 3D NAND with an SLC cache. The maker's store page names 3D NAND without TLC
Flash memory
Not available
Flash layers
Not available
DRAM cache
None5Reviewsynccomputers.co.uk/fanxiang-s101-2-5-sata-ssd-reviewRead 21 October 2026Sync Computers review of 26 June 2026. The spec list reads SLC Cache (no DRAM) and the text says the S101 has no DRAM buffer, so the drive writes at native TLC speed once the SLC cache is full. The maker's pages say only SLC cache. SATA has no host memory buffer, so the value is none. A non-lab review that does not name the tested capacity or the controller
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
520MB/s1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Gallery parameter table (file 128GB-4TB.jpg), up to values: 128GB 500 MB/s, 256GB 500, 512GB 500, 1TB 520, 2TB 520, 4TB 500. Test host and tool are not stated. The page title says up to 550MB/s and the older Amazon listing said 550 read and 500 write, so the maker's claims differ between pages. The parameter table is used for every capacity3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026A+ Product Parameters table matches the maker's store table for all six capacities
Sequential write (claimed)
480MB/s1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Same table: 128GB 350 MB/s, 256GB 400, 512GB 450, 1TB 480, 2TB 480, 4TB 4703Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Same A+ table
Random 4K read (claimed)
Not available
Random 4K write (claimed)
Not available

Endurance and reliability

Endurance (TBW)
1,200TB1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Same table: 128GB 80 TBW, 256GB 150, 512GB 300, 1TB 600, 2TB 1200, 4TB 12003Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Same A+ table
MTBF or MTTF (claimed)
Not available
Operating temperature
Min0Max70°C3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Brand A+ image Product Parameters reads Working TEMP 0 to 70 C. Storage TEMP of -25 to 85 C is not stored

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

We could not find any of these 4 fields. Show them
Heatsink
Not available
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
Not available
Software
Fanxiang SSD Toolbox3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Product description FAQ names the latest FANXIANG SSD Toolbox, which reads drive status and offers disk cloning and system migration. The maker's drivers page offers a file named SSDmanagement-1.0.40 under SSD Management Software

Compatibility

Platforms
Windows, macOS, Linux1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Specifications table reads Windows 7, 8, 10, 11 and Mac OS 10.9 and later. The description adds Linux 2.6.33 or later and says laptops, desktops and all-in-one computers

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length100Width69.8Height7mm(3.9 × 2.7 × 0.3 in)3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Same A+ image: Dimensions 100(L) x 69.8(W) x 7.0(H) mm
Weight
45g(1.6 oz)3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Same A+ image: Weight about 45 g. The qualifier is approximate. Amazon's own item weight of 2.08 ounces is a shipping figure and is not used. Other 2.5-inch drives in the catalog weigh 33 to 63 g, so the M.2 peer median does not apply

In the box

In the box
2.5-inch SATA SSD, Product box3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Product description FAQ: after purchase you receive 1 x 2.5-inch SATA SSD and 1 x product box. The product does not include a SATA cable
Cables included
Not available

Warranty

Manufacturer warranty (source market)
3years1Maker product pagefanxiangssd.com/products/internal-solid-state-drive-fanxiang-s101-1tb-ssdRead 16 October 2026Gallery image shows a 3 years warranty badge and the description says a 3-year warranty period3Retailer pageamazon.com/dp/B09XDJ673FRead 16 October 2026Item details read Warranty Description 3 Year Manufacturer

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

GTINCapacitySequential read (claimed)Sequential write (claimed)Endurance (TBW)
Not available128 GB500 MB/s350 MB/s80 TB
792288883696256 GB500 MB/s400 MB/s150 TB
792288883702512 GB500 MB/s450 MB/s300 TB
7922888837191 TB520 MB/s480 MB/s600 TB
7922888837262 TB520 MB/s480 MB/s1,200 TB
7922888837334 TB500 MB/s470 MB/s1,200 TB

Sources

We read 5 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 16 October 2026Backs 11 fields
  2. Read 16 October 2026Backs 2 fields
  3. Read 16 October 2026Backs 14 fields
  4. Read 16 October 2026Backs 1 field
  5. Read 21 October 2026Backs 1 field
