PC parts / SSDs

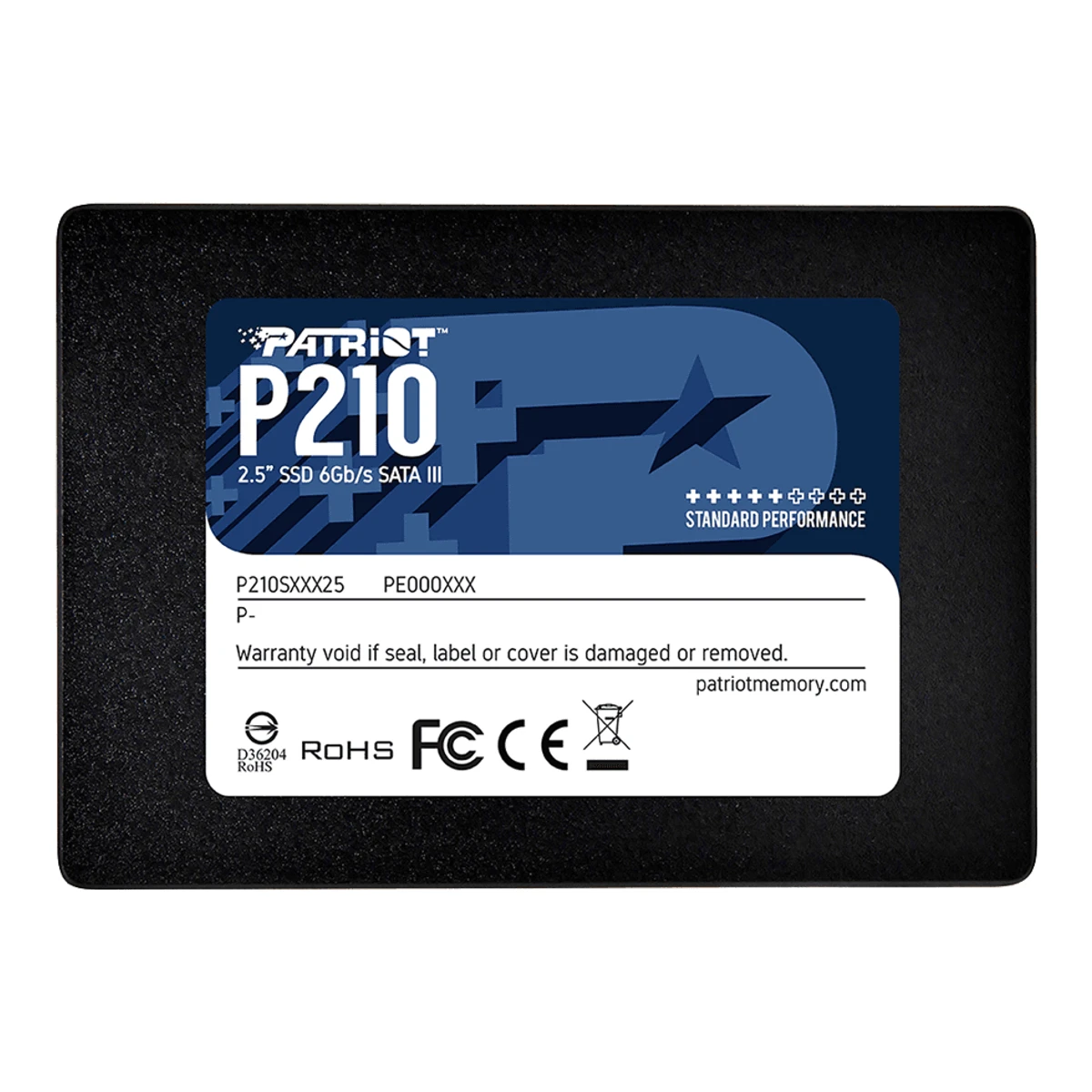

Patriot P210

PatriotSSD

P210

Released July 2020.8Press articlecomputerbase.de/2020-07/patriot-p210-sata-ssdRead 15 October 2026ComputerBase, 2020-07-09: Patriot launched the P210 series, sold at about 30 to 190 euros in 256GB to 2TB. The 128GB model named in the press release was not yet in the shops. The 4TB model came later (SKU sheet from June 2025). Month of the series launch Last checked 16 October 2026.

Interface
SATA
Form factor
2.5-inch
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB, 4 TB
Read speed
520MB/s

23 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
P210S128G25, P210S256G25, P210S512G25, P210S1TB25, P210S2TB25, P210S4TB251Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Product Information: P210S128G25, P210S256G25, P210S512G25, P210S1TB25, P210S2TB25 and P210S4TB25, one per SKU sheet
GTIN / EAN
814914026847, 814914026809, 814914026816, 814914026823, 814914026830, 47113784301651Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026UPC code on each sheet: 0814914026847 (128GB), 0814914026809 (256GB), 0814914026816 (512GB), 0814914026823 (1TB), 0814914026830 (2TB). The 4TB sheet prints the EAN 4711378430165. The five UPCs are stored as 12 digits without the leading zero
Announced
Not available
Status
Available7Maker product pagepatriotmemory.com/products/p210-sata-iii-2-5-ssdRead 15 October 2026The page is live in 2026 and lists the 4TB model, whose sheet was created in June 2025
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
2.5-inch1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: 2.5' SATA 3. The product page says 7mm high 2.5 inch form factor
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB, 4 TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Sheets are titled 128GB, 256GB, 512GB, 1TB, 2TB and 4TB. Patriot does not publish a byte definition

Interface

Interface
SATA1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: 2.5' SATA 3 backwards compatible to SATA 2. The product page says SATA III 6Gb/s
PCIe generation
Not available
PCIe lanes
Not available
NVMe version
Not available
Detachable cable
Not available

Hardware

Controller
Not available
Flash type
Not available
Flash memory
Not available
Flash layers
Not available
DRAM cache
None9Measurementcomputerbase.de/2021-01/patriot-p210-ssd-testRead 15 October 2026ComputerBase test, 2021-01-07: both 2TB samples use the Maxiotek MAS0902 controller with no DRAM cache. The launch article (2020-07-09) says the SM2259XT named by dealers is DRAM-less too. SATA has no host memory buffer, so the value is none. The controller and flash differ between samples and Patriot names none, so they are not stored
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
520MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: Sequential Read (ATTO) up to 450 (128GB), 500 (256GB) and 520 MB/s (512GB to 4TB). The sheet names no host. Base value is the 2TB model
Sequential write (claimed)
430MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: Sequential Write (ATTO) up to 430 (128GB, 512GB, 1TB, 2TB and 4TB) and 400 MB/s (256GB). Base value is the 2TB model
Random 4K read (claimed)
50,000IOPS1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: 4K Aligned Random Read up to 30K IOPs (128GB) and 50K IOPs (256GB to 4TB). Queue depth is not named. Base value is the 2TB model
Random 4K write (claimed)
50,000IOPS1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Features: 4K Aligned Random Write up to 30K IOPs (128GB and 256GB) and 50K IOPs (512GB to 4TB). Base value is the 2TB model

Endurance and reliability

Endurance (TBW)
960TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Terabytes Written (TBW): 60 TB (128GB), 120 TB (256GB), 240 TB (512GB), 480 TB (1TB), 960 TB (2TB) and 1920 TB (4TB). Base value is the 2TB model
MTBF or MTTF (claimed)
Not available
Operating temperature
Min0Max70°C1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Operating Temperature: 0 ~ 70 C on every sheet

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

Sequential read (measured)
539MB/s9Measurementcomputerbase.de/2021-01/patriot-p210-ssd-testRead 15 October 2026CrystalDiskMark 7.0.0, SEQ1M Q8T1 read 538.6 MB/s on the second 2TB sample, the one that reports itself as P210 in its firmware. The first sample reports itself as P200. Bench: AMD Ryzen 7 3800X, Gigabyte X570 Aorus Master, Windows 10 1909, write cache on. ComputerBase does not state the test size or the drive fill. No KitGuru, Tom's Hardware or StorageReview test of the P210 exists
Sequential write (measured)
485MB/s9Measurementcomputerbase.de/2021-01/patriot-p210-ssd-testRead 15 October 2026CrystalDiskMark 7.0.0, SEQ1M Q8T1 write 485.3 MB/s, same sample and bench
Random 4K read at queue depth 1 (measured)
33.6MB/s9Measurementcomputerbase.de/2021-01/patriot-p210-ssd-testRead 15 October 2026CrystalDiskMark 7.0.0, RND4K Q1T1 read 33.6 MB/s, same sample and bench
Random 4K write at queue depth 1 (measured)
95MB/s9Measurementcomputerbase.de/2021-01/patriot-p210-ssd-testRead 15 October 2026CrystalDiskMark 7.0.0, RND4K Q1T1 write 95.0 MB/s, same sample and bench
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

We could not find any of these 4 fields. Show them
Heatsink
Not available
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

We could not find any of these 2 fields. Show them
Security
Not available
Software
Not available

Compatibility

Platforms
Windows1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026O/S Supported: Windows 7*/8.0*/8.1/10. The asterisk says a driver may be required. No other operating system is named

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length100Width69.6Height7mm(3.9 × 2.7 × 0.3 in)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Product dimensions: 3.93 in (L) x 2.75 in (W) x 0.15 in (H), or 10.0 cm x 6.96 cm x 0.7 cm. The inch height does not match 0.7 cm. The product page and the sheet's 2.5 inch 7mm class say 7 mm, so 7 mm is stored. Stored as 100 x 69.6 x 7 mm
Weight
46g(1.6 oz)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 2026Product weight: 0.10 lbs / 46 gm on every sheet. The hang card packaging has its own 0.11 lbs / 50 gm figure, which is not stored. The peer-median warning of the validator is expected, since most peers are M.2 drives and a 2.5 inch 7 mm SATA drive weighs about 40 to 50 g, as the Kingston A400 does

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
3years1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P210_S2_TB_25_0189128c7c.pdfRead 15 October 20263 Year Warranty. The product page adds that warranty ends at the TBW limit or the warranty period, whichever comes first. The sheets name no market

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINCapacitySequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)
P210S128G25814914026847128 GB450 MB/s430 MB/s30,000 IOPS30,000 IOPS60 TBNot availableNot availableNot availableNot available
P210S256G25814914026809256 GB500 MB/s400 MB/s50,000 IOPS30,000 IOPS120 TBNot availableNot availableNot availableNot available
P210S512G25814914026816512 GB520 MB/s430 MB/s50,000 IOPS50,000 IOPS240 TBNot availableNot availableNot availableNot available
P210S1TB258149140268231 TB520 MB/s430 MB/s50,000 IOPS50,000 IOPS480 TBNot availableNot availableNot availableNot available
P210S2TB258149140268302 TB520 MB/s430 MB/s50,000 IOPS50,000 IOPS960 TB539 MB/s485 MB/s33.6 MB/s95 MB/s
P210S4TB2547113784301654 TB520 MB/s430 MB/s50,000 IOPS50,000 IOPS1,920 TBNot availableNot availableNot availableNot available

Sources

We read 9 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 17 fields
  2. Read 15 October 2026Backs 1 field
  3. Read 15 October 2026Backs 1 field
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 1 field
  6. Read 15 October 2026Backs 1 field
  7. Read 15 October 2026Backs 2 fields
  8. Read 15 October 2026Backs 1 field
  9. Read 15 October 2026Backs 6 fields

See a wrong value? Tell us and name the field.
