PC parts / SSDs

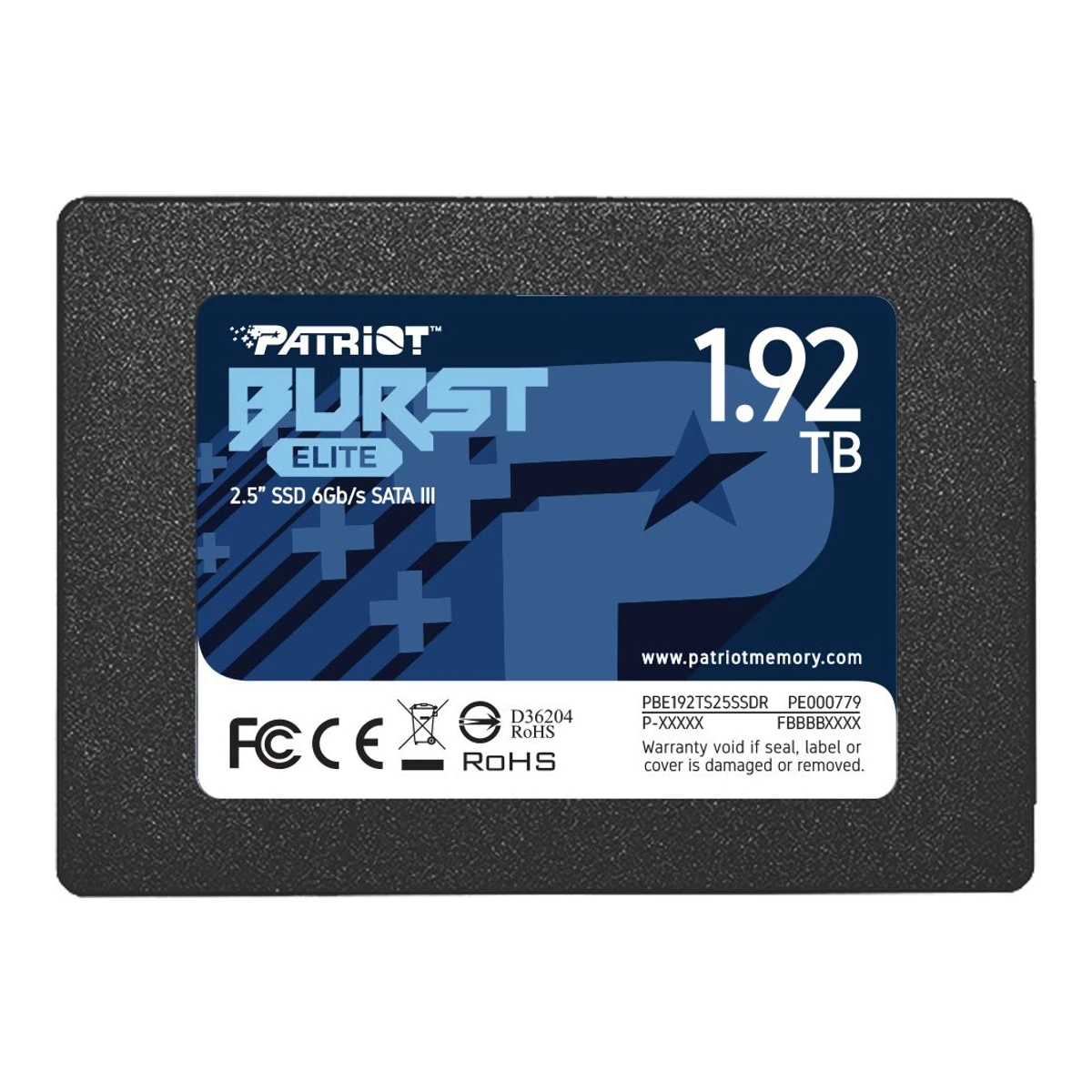

Patriot Burst Elite

PatriotSSD

Burst Elite

Released July 2021.7Press articlecambiodigital-ol.com/2021/07/patriot-presenta-el-ssd-burst-eliteRead 15 October 2026CambioDigital OnLine, 14 July 2021, reprints Patriot's launch announcement (source line: Patriot Memory Inc.) for the Burst Elite 2.5 inch SATA III SSD. Patriot's SKU sheets say Release: 2020, and European retailer catalogs seen in search results (Galaxus, not opened) show 16 April 2021. The month stored is the dated press piece Last checked 16 October 2026.

Interface
SATA
Form factor
2.5-inch
Capacity
120 GB, 240 GB, 480 GB, 960 GB, 1.92 TB
Read speed
450MB/s

23 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Burst6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026The page calls Burst Elite an extension of the Burst, the 2.5 inch SATA III drive, and the latest addition to the Burst family
Model numbers
PBE120GS25SSDR, PBE240GS25SSDR, PBE480GS25SSDR, PBE960GS25SSDR, PBE192TS25SSDR1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Product Information on each sheet: PBE120GS25SSDR, PBE240GS25SSDR, PBE480GS25SSDR, PBE960GS25SSDR and PBE192TS25SSDR. The product page SKU table lists the same five6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026Part number table: 120GB PBE120GS25SSDR, 240GB PBE240GS25SSDR, 480GB PBE480GS25SSDR, 960GB PBE960GS25SSDR, 1.92TB PBE192TS25SSDR
GTIN / EAN
814914027738, 814914027745, 814914027752, 814914027769, 8149140277761Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026UPC on each sheet: 0814914027738 (120GB), 0814914027745 (240GB), 0814914027752 (480GB), 0814914027769 (960GB) and 0814914027776 (1.92TB). Stored as 12 digits without the leading zero
Announced
Not available
Status
Available6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026The page is live in 2026 and lists all five SKU sheets
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
2.5-inch1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Specifications: Form Factor 2.5 inch. The sheet text says 7mm high in a 2.5 inch form factor6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026The page names a 2.5 inch SATA III Solid State Drive
Capacity
120 GB, 240 GB, 480 GB, 960 GB, 1.92 TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Sheets are titled 120GB, 240GB, 480GB, 960GB and 1.92TB. Patriot does not publish a byte definition. 1.92TB is stored as 1920 GB. There is no 2TB model, so the base is the largest capacity, 1.92TB6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026SKU table capacities 120GB, 240GB, 480GB, 960GB and 1.92TB7Press articlecambiodigital-ol.com/2021/07/patriot-presenta-el-ssd-burst-eliteRead 15 October 2026Capacities: 120 GB / 240 GB / 480 GB / 960 GB / 1.92TB

Interface

Interface
SATA1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Specifications: Interface SATA III 6Gb/s. The text says backwards compatible with SATA II 3Gb/s6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026A SATA III 6Gb/s interface that is backwards compatible with SATA II 3GB/s
PCIe generation
Not available
PCIe lanes
Not available
NVMe version
Not available
Detachable cable
Not available

Hardware

Controller
Not available
Flash type
QLC8Reviewnikktech.com/main/articles/pc-hardware/storage/solid-state-drives/12504-patriot-burst-elite-1-92tb-ssd-reviewRead 15 October 2026NikkTech review of the 1.92TB model (published 2022-02-02, page 3 of 10) names 64-layer 3D QLC NAND by Micron, four packages, two on each side of the PCB. Stored in the 1.92TB row and the base
Flash memory
Micron 64-layer 3D QLC8Reviewnikktech.com/main/articles/pc-hardware/storage/solid-state-drives/12504-patriot-burst-elite-1-92tb-ssd-reviewRead 15 October 2026Micron 64-layer 3D QLC, as the review words it. Hardware Corner calls the same flash Intel 64-layer QLC. Intel and Micron made this flash together
Flash layers
648Reviewnikktech.com/main/articles/pc-hardware/storage/solid-state-drives/12504-patriot-burst-elite-1-92tb-ssd-reviewRead 15 October 202664 layers, 1.92TB model
DRAM cache
None8Reviewnikktech.com/main/articles/pc-hardware/storage/solid-state-drives/12504-patriot-burst-elite-1-92tb-ssd-reviewRead 15 October 2026The review calls the Silicon Motion SM2259XT a quad-channel DRAMless controller. Hardware Corner also states no DRAM and no HMB9Spec databasehardware-corner.net/ssd-database/Patriot-Burst-EliteRead 15 October 2026Database row for the Burst Elite (120GB-1.92TB): DRAM No, and the text says there is no HMB architecture on the drive. A SATA AHCI drive has no host memory buffer
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
450MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Sequential Read (ATTO) up to 450 MB/s on every sheet. The sheets name no host. Base is the 1.92TB model6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026Features: Up to 450MB/s Read Speeds
Sequential write (claimed)
320MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Sequential Write (ATTO) up to 320 MB/s on every sheet, written MB/S. The sheets name no host. Base is the 1.92TB model
Random 4K read (claimed)
40,000IOPS1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 20264K Aligned Random Read up to 40K IOPs on every sheet. Queue depth is not named
Random 4K write (claimed)
40,000IOPS1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 20264K Aligned Random Write up to 40K IOPs on every sheet. Queue depth is not named

Endurance and reliability

Endurance (TBW)
800TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Terabytes Written (TBW): 50 TB (120GB), 100 TB (240GB), 200 TB (480GB), 400 TB (960GB) and 800 TB (1.92TB). Base is the 1.92TB model
MTBF or MTTF (claimed)
2,000,000h1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026MTBF: >2,000,000 hours on every sheet, stored as 2000000. The product page reads MTBF: 2,000,000 hours. It is a lower bound as published. The sheets give it as MTBF, not MTTF6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026Features: MTBF: 2,000,000 hours
Operating temperature
Min0Max70°C1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Operating Temperature: 0 ~ 70 C on every sheet. The product page agrees6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026Features: Operating Temperature: 0~70C

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

We could not find any of these 4 fields. Show them
Heatsink
Not available
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

We could not find any of these 2 fields. Show them
Security
Not available
Software
Not available

Compatibility

We could not find any of these 1 fields. Show them
Platforms
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length100Width69Height7mm(3.9 × 2.7 × 0.3 in)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Product dimensions: 3.93 in (L) x 2.75 in (W) x 0.15 in (H), or 10.0 cm x 6.9 cm x 0.7 cm. The inch height does not match 0.7 cm. The sheet text and the product page say 7mm high, so 7 mm is stored. Stored as 100 x 69 x 7 mm. Same on every sheet
Weight
46g(1.6 oz)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 2026Product weight: 0.10 lbs / 46 g on every sheet. The hang card packaging has its own 0.11 lbs / 53 g figure, which is not stored. The peer-median warning of the validator is expected, since most peers are M.2 drives and a 2.5 inch 7 mm SATA drive weighs about 40 to 50 g

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
3years1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/PBE_192_TS_25_SSDR_ec590302e7.pdfRead 15 October 20263 Year Warranty on every sheet. The product page adds that warranty ends at the TBW limit or the warranty period, whichever comes first. The sheets name no market6Maker product pagepatriotmemory.com/products/burst-elite-sata-iii-2-5-ssdRead 15 October 2026Features: 3-year warranty

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINCapacityFlash typeFlash memoryFlash layersSequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)Write cache size (measured)
PBE120GS25SSDR814914027738120 GBNot availableNot availableNot available450 MB/s320 MB/s40,000 IOPS40,000 IOPS50 TBNot availableNot availableNot availableNot availableNot available
PBE240GS25SSDR814914027745240 GBNot availableNot availableNot available450 MB/s320 MB/s40,000 IOPS40,000 IOPS100 TBNot availableNot availableNot availableNot availableNot available
PBE480GS25SSDR814914027752480 GBNot availableNot availableNot available450 MB/s320 MB/s40,000 IOPS40,000 IOPS200 TBNot availableNot availableNot availableNot availableNot available
PBE960GS25SSDR814914027769960 GBTLCNot availableNot available450 MB/s320 MB/s40,000 IOPS40,000 IOPS400 TB518 MB/s422 MB/s31.01 MB/s94.02 MB/s106 GB
PBE192TS25SSDR8149140277761.92 TBQLCMicron 64-layer 3D QLC64450 MB/s320 MB/s40,000 IOPS40,000 IOPS800 TBNot availableNot availableNot availableNot availableNot available
