PC parts / SSDs

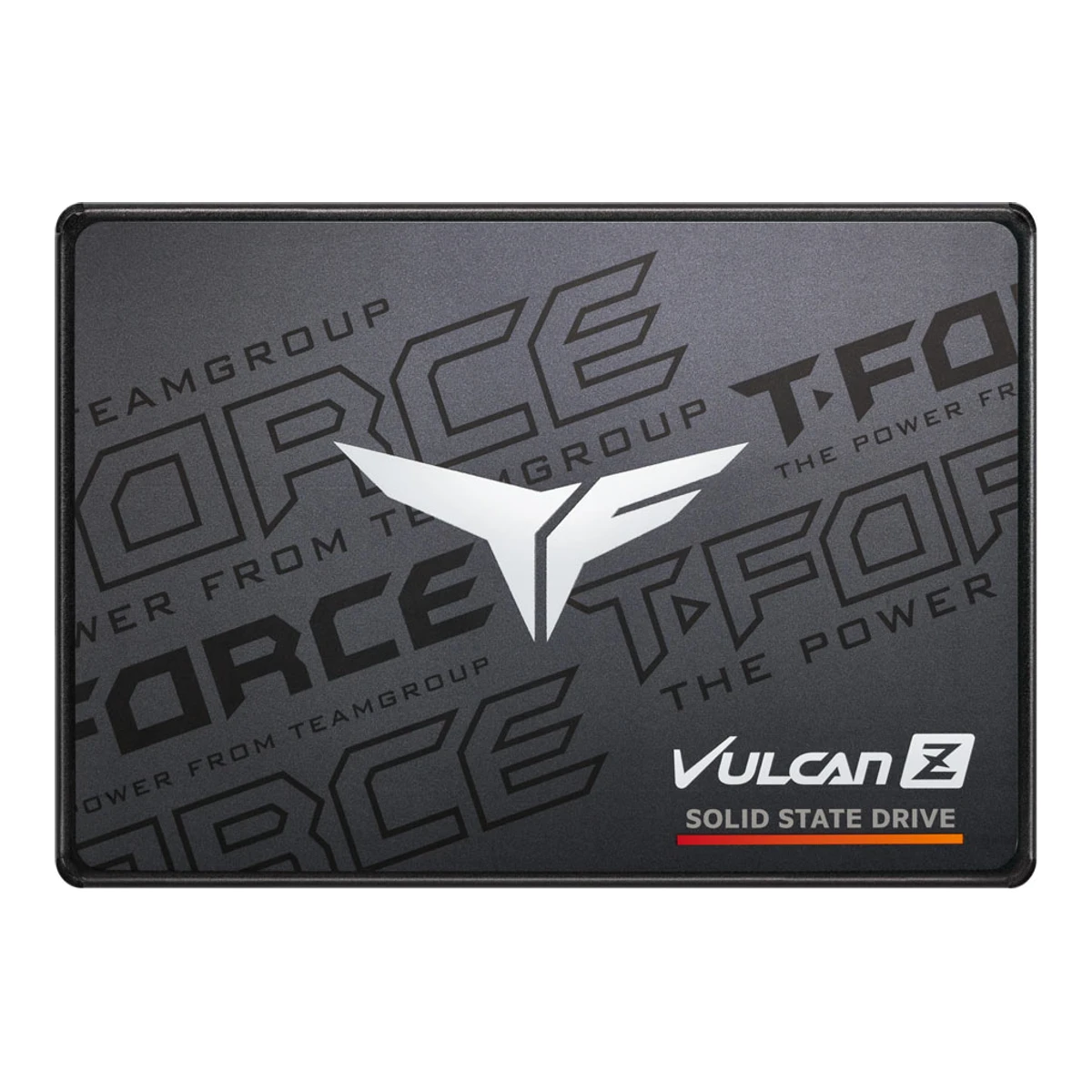

TeamGroup T-FORCE VULCAN Z

TeamGroupSSD

T-FORCE VULCAN Z

Released May 2022.3Press releasegdm.or.jp/pressrelease/2022/0506/438149Read 15 October 2026Release lists 240GB, 480GB, 1TB and 2TB. Club386 reports the 240GB, 480GB and 1TB for mid-May 2022 and the 2TB for Q3 2022, and TechPowerUp's news item said worldwide availability in mid-May 2022 Last checked 16 October 2026.

Interface
SATA
Form factor
2.5-inch
Capacity
240 GB, 256 GB, 480 GB, 512 GB, 1 TB, 2 TB, 4 TB
Read speed
550MB/s

23 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
T253TZ240G0C101, T253TZ256G0C101, T253TZ480G0C101, T253TZ512G0C101, T253TZ001T0C101, T253TZ002T0C101, T253TZ004T0C1011Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Table column TEAM P/N: T253TZ240G0C101, T253TZ256G0C101, T253TZ480G0C101, T253TZ512G0C101, T253TZ001T0C101, T253TZ002T0C101 and T253TZ004T0C1012Maker spec sheet (PDF)images.teamgroupinc.com/products/ssd/internal/vulcan-z/spec-sheet/vulcan-z-en.pdfRead 15 October 2026Ordering information table lists the seven part numbers
GTIN / EAN
765441060463, 765441061965, 765441060531, 765441061958, 765441060470, 7654410604875Retailer pageamazon.com/dp/B09WMP5B5NRead 15 October 2026UPCs from the TEAMGROUP listings on Amazon, one page per capacity: 1TB 765441060470 (this page), 2TB 765441060487 (B09WMSVHD4), 256GB 765441061965 (B0B6ZCMSQ3), 480GB 765441060531 (B09WMQQ68S) and 512GB 765441061958 (B0B6ZC5MS3). The 240GB UPC 765441060463 comes from eBay listings of T253TZ240G0C101 titled Team Group 240GB T-FORCE VULCAN Z. All pass the UPC-A check digit. No UPC was found for the 4TB TZ
Announced
6 May 20223Press releasegdm.or.jp/pressrelease/2022/0506/438149Read 15 October 2026Japanese distributor's copy of TeamGroup's release of 6 May 2022: the 2.5-inch SATA 3.0 VULCAN Z SATA SSD for the T-FORCE Gaming line
Status
Available1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026The page and TeamGroup's spec sheet of September 2025 list the line. Reviews and listings dated 2024 to 2026 show it on sale
Predecessor
Not available
Successor
Not available
Launch price (US)
From $28.991Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 20263Press releasegdm.or.jp/pressrelease/2022/0506/438149Read 15 October 20264Press articleclub386.com/teamgroup-launches-budget-t-force-vulcan-z-sata-ssd-with-capacities-up-to-2tbRead 15 October 20265Retailer pageamazon.com/dp/B09WMP5B5NRead 15 October 2026
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Color row reads Black
Form factor
2.5-inch1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Dimensions are 100 x 69.9 mm with a 7 mm height, which is the 2.5 inch size. Reviews call it a 2.5 inch drive
Capacity
240 GB, 256 GB, 480 GB, 512 GB, 1 TB, 2 TB, 4 TB1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Capacity column 240GB, 256GB, 480GB, 512GB, 1TB, 2TB and 4TB. Note 1 says 1GB equals 1,000,000,000 bytes and 1TB equals 1,000,000,000,000 bytes

Interface

Interface
SATA1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Interface row reads SATA Rev. 3.0 (6Gb/s)
PCIe generation
Not available
PCIe lanes
Not available
NVMe version
Not available
Detachable cable
Not available

Hardware

Controller
Not available
Flash type
TLC3Press releasegdm.or.jp/pressrelease/2022/0506/438149Read 15 October 2026Release says the drive uses high-quality 3D TLC NAND. Tech4Gamers confirms TLC on the 2TB in 2024 and Amazon's TEAMGROUP listings still say TLC for the T253TZ part numbers. The product page and spec sheet now say only 3D NAND, and TeamGroup halved the TBW in early 2025, so the flash of current units is not confirmed. The QLC drive is the separate VULCAN Z QLC SSD, T253TY6Reviewtech4gamers.com/teamgroup-t-force-vulcan-z-2-5-2tb-ssd-reviewRead 15 October 2026The 2TB uses a single Sandisk 3D TLC package. The review says the TLC Vulcan Z goes up to 2TB and the 4TB is the QLC model
Flash memory
Not available
Flash layers
Not available
DRAM cache
None1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026DRAM Cache column reads NO for every capacity. A SATA drive has no host memory buffer, so none is stored6Reviewtech4gamers.com/teamgroup-t-force-vulcan-z-2-5-2tb-ssd-reviewRead 15 October 2026Review of 25 September 2024: the 2TB is DRAM-less with SLC caching and uses 3D TLC flash. It names the controller as an SM2259XT2G, while Back2Gaming (SM2259XT) and Basic Tutorials (SM2258XT) differ, so no controller is stored. The review says TeamGroup changed the components since the first release
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
550MB/s1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Sequential Read column: 240GB and 256GB 520, 480GB and 512GB 540, 1TB and 2TB 550, 4TB 500 MB/s. Note says speeds come from CrystalDiskMark on a completely new drive and vary with hardware and software. Base value is the 2TB model
Sequential write (claimed)
500MB/s1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Sequential Write column: 240GB and 256GB 450, 480GB and 512GB 470, 1TB and 2TB 500, 4TB 460 MB/s
Random 4K read (claimed)
Not available
Random 4K write (claimed)
Not available

Endurance and reliability

Endurance (TBW)
400TB1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Terabyte Written column: 240GB and 256GB 80, 480GB and 512GB 120, 1TB 200, 2TB 400, 4TB 800 TBW. TeamGroup's own page showed 1600 TBW for the 2TB until at least April 2024 and the launch release printed 200, 400, 800 and 1,600 TBW for 240GB, 480GB, 1TB and 2TB. The page changed to the lower figures by January 2025. The current figures are stored. Note says TBW follows JEDEC and the warranty ends at the time limit or the TBW, whichever comes first
MTBF or MTTF (claimed)
1,000,000h1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026MTBF row reads 1,000,000 Hours2Maker spec sheet (PDF)images.teamgroupinc.com/products/ssd/internal/vulcan-z/spec-sheet/vulcan-z-en.pdfRead 15 October 2026MTBF 1,000,000 Hours
Operating temperature
Min0Max70°C1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Operation Temperature 0 C ~ 70 C. The humidity row gives its own 0 to 55 C range and is not stored

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

We could not find any of these 4 fields. Show them
Heatsink
Not available
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
Not available
Software
TEAM SMART TOOL1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Warranty note says TEAM SMART TOOL data decides TBW disputes. The page gives no further description

Compatibility

Platforms
Windows, macOS, Linux1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Operating System row: Windows 11 / 10 / 8 / 7 / Vista, MAC OS 10.4 or later, Linux 2.6.33 or later

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length100Width69.9Height7mm(3.9 × 2.8 × 0.3 in)1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Dimensions row reads 100(L) x 69.9(W) x 7(H) mm. The September 2025 spec sheet reads 6.8 mm for the height and says the website prevails, so 7 mm is stored. The launch release and reviews also say 7 mm2Maker spec sheet (PDF)images.teamgroupinc.com/products/ssd/internal/vulcan-z/spec-sheet/vulcan-z-en.pdfRead 15 October 2026Dimensions row reads 100(L) x 69.9(W) x 6.8(H) mm. The product page reads 7 mm. The sheet says that the official website prevails in a discrepancy
Weight
45g(1.6 oz)1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 2026Weight row reads 45g for every capacity. A 2.5 inch case weighs far more than an M.2 drive2Maker spec sheet (PDF)images.teamgroupinc.com/products/ssd/internal/vulcan-z/spec-sheet/vulcan-z-en.pdfRead 15 October 2026Weight 45g

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
3years1Maker product pageteamgroupinc.com/en/product-detail/ssd/T-FORCE/vulcan-z/vulcan-z-T253TZ002T0C101Read 15 October 20263-year limited warranty, or the TBW limit, whichever comes first. The page says the term may differ where local law applies2Maker spec sheet (PDF)images.teamgroupinc.com/products/ssd/internal/vulcan-z/spec-sheet/vulcan-z-en.pdfRead 15 October 20263-year limited warranty, based on TBW or the warranty period, whichever happens first

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)CapacityFlash typeSequential read (claimed)Sequential write (claimed)Endurance (TBW)
T253TZ240G0C101765441060463$28.99240 GBTLC520 MB/s450 MB/s80 TB
T253TZ256G0C101765441061965Not available256 GBTLC520 MB/s450 MB/s80 TB
T253TZ480G0C101765441060531$45.99480 GBTLC540 MB/s470 MB/s120 TB
T253TZ512G0C101765441061958Not available512 GBTLC540 MB/s470 MB/s120 TB
T253TZ001T0C101765441060470$81.991 TBTLC550 MB/s500 MB/s200 TB
T253TZ002T0C101765441060487Not available2 TBTLC550 MB/s500 MB/s400 TB
T253TZ004T0C101Not availableNot available4 TBNot available500 MB/s460 MB/s800 TB

Sources

We read 6 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 19 fields
  2. Read 15 October 2026Backs 6 fields
  3. Read 15 October 2026Backs 4 fields
  4. Read 15 October 2026Backs 2 fields
  5. Read 15 October 2026Backs 2 fields
  6. Read 15 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
