PC parts / Motherboards

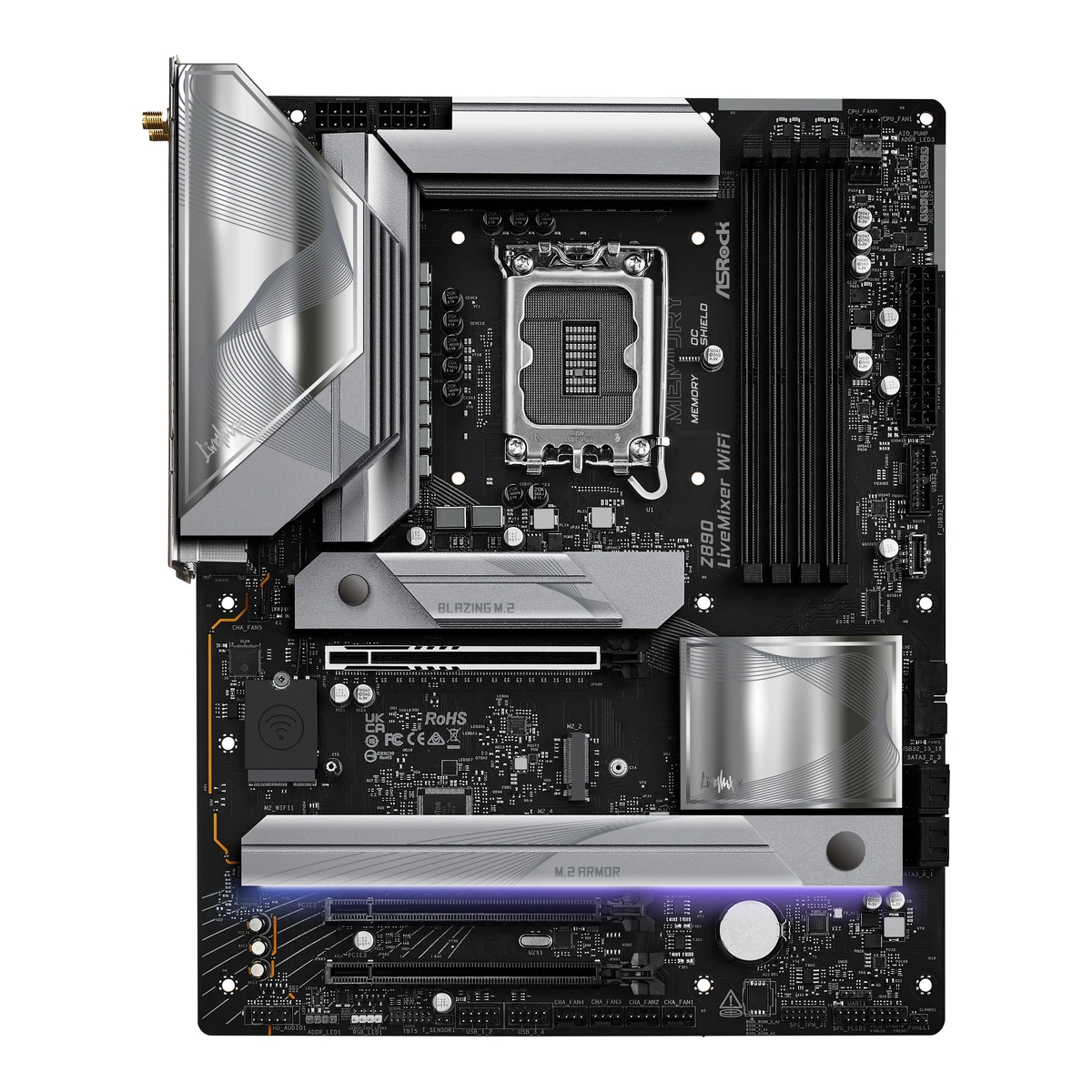

ASRock Z890 LiveMixer WiFi

ASRockCreator motherboard

Z890 LiveMixer WiFi

Released October 2024.2Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026Page says: Product referenced on 14 Oct 2024. The Core Ultra 200S boards went on sale on 2024-10-24. Last checked 15 October 2026.

CPU socket
LGA1851
Chipset
Intel Z890
Form factor
ATX
M.2 slots
4

62 of 78 fields known.

Compare with another motherboardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB4
  • 2 USB-A USB 3.2 Gen 2
  • 10 USB-A USB 3.2 Gen 1
  • HDMI 2.1
  • Ethernet (RJ45)
  • 2 3.5 mm audio
  • Optical S/PDIF
  • USB-C header
  • 2 USB 3 header (19-pin)
  • 2 USB 2.0 header (9-pin)

All specs

SourceCalculated

General

Series
LiveMixer1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026The manual names the board Z890 LiveMixer WiFi. LiveMixer is the ASRock line for content creators.
Model numbers
Z890 LiveMixer WiFi, 90-MXBPE0-A0UAYZ3Retailer pageevetech.co.za/asrock-z890-livemixer-intel-motherboard/best-deal/23134Read 15 October 2026Model No: ASROCK 90-MXBPE0-A0UAYZ.4Retailer pageparadigit.ie/asrock-z890-livemixer-wifi/21654355/productRead 15 October 2026Product number manufacturer: 90-MXBPE0-A0UAYZ.8Spec databasehinta.fi/4950255/asrock-z890-livemixer-wifi/tiedotRead 15 October 2026Manufacturer product codes: 90-MXBPE0-A0UAYZ and Z890 LIVEMIXER WIFI.
GTIN / EAN
47104839497158Spec databasehinta.fi/4950255/asrock-z890-livemixer-wifi/tiedotRead 15 October 2026GTIN / EAN: 4710483949715. The EAN is also on alltron.ch and custompc.com.cy.9Retailer pagecustompc.com.cy/components/motherboards/intel-motherboards/asrock-z890-livemixer-wifi-intel-z890-mainboard-socket-lga-1851-intel-z890-atx-ddr5Read 15 October 2026Product feed: gtin13 4710483949715.
Announced
Not available
Status
Available8Spec databasehinta.fi/4950255/asrock-z890-livemixer-wifi/tiedotRead 15 October 2026Listed at 250.90 EUR with shops on 2026-10-15.
Predecessor
Not available
Successor
Not available
Launch price (US)
$239.9911Press articlewccftech.com/intel-z890-motherboards-available-pre-order-prices-starting-199-us-asus-asrock-gigabyte-msi/ampRead 15 October 2026Article of 2024-10-10 lists ASRock Z890 LiveMixer WiFi at 239.99 USD in US retail pre-order listings, for the Core Ultra 200S launch. It is a US retail listing and not an ASRock statement of MSRP. Tax is not included in a US price.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Creator2Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026The overview says the board is part of ASRock's LiveMixer range, designed for the needs of content creators.4Retailer pageparadigit.ie/asrock-z890-livemixer-wifi/21654355/productRead 15 October 2026Copy of ASRock's text: the LiveMixer series is crafted with the needs of modern content creators in mind.
Board revision
Not available

Platform

CPU socket
LGA18511Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM).
Chipset
Intel Z8901Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: Intel Z890.
Supported processors
Intel Core Ultra (Series 2)1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2, CPU: Supports Intel Core Ultra Processors (Series 2). Read on 2026-10-15. BIOS updates can add series later.
CPU overclocking
Yes12Maker product pageintel.com/content/www/us/en/products/sku/237777/intel-z890-chipset/specifications.htmlRead 15 October 2026Intel Z890 chipset specifications: Supports Overclocking: IA, BCLK, Memory. This is the chip maker's chipset feature, not a board spec.

Board

Front and side, drawn to scale.

Form factor
ATX1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2 and the title of chapter 2: ATX Form Factor.
Board dimensions
Width244Height305mm(9.6 × 12 in)2Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026Specifications: motherboard format ATX, length 305 mm, width 244 mm.
PCB layers
Not available
Back-connect design
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026The section 1.3 layout and the connector list show the usual front-side power, fan and USB connectors.
RGB lighting on the board
Not available

Power delivery

Power stage layout
18+1+1+1+12Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026Copy of ASRock's feature text: 18+1+1+1+1-phase 80A SPS power supply for VCore+GT+SA.3Retailer pageevetech.co.za/asrock-z890-livemixer-intel-motherboard/best-deal/23134Read 15 October 2026Features and FAQ: 18+1+1+1+1 power phase with SPS Dr.MOS stages.4Retailer pageparadigit.ie/asrock-z890-livemixer-wifi/21654355/productRead 15 October 2026Copy of ASRock's text: 18+1+1+1+1 Power Phase Design with SPS (Smart Power Stage) Dr.MOS.6Retailer pagemultitronic.fi/en/products/4408928Read 15 October 2026Copy of ASRock's text: 18+1+1+1+1 Power Phase Design with SPS Dr.MOS.7Spec databasemaxmybuild.com/motherboards/asrock-z890-livemixer-wifiRead 15 October 2026Phase config: 2x9+1+1+1+1 with 80A SPS. This is the same layout as ASRock's 18+1+1+1+1.10Press articleascii.jp/elem/000/004/230/4230242/2Read 15 October 2026Text (Japanese): an 18+1+1 phase circuit with 80A SPS. The article writes 18+1+1, while ASRock's text and the retailers write 18+1+1+1+1.
CPU core (Vcore) power stages
182Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026The same text names 18 phases with 80A SPS for VCore, GT and SA.7Spec databasemaxmybuild.com/motherboards/asrock-z890-livemixer-wifiRead 15 October 20262x9 means 9 phases doubled into 18 Vcore power stages.
Vcore power stage rating
80A2Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 202680A SPS for VCore+GT+SA.3Retailer pageevetech.co.za/asrock-z890-livemixer-intel-motherboard/best-deal/23134Read 15 October 2026Features: 18+1+1+1+1 phase VRM design and 80A Smart Power Stages for VCore, GT and SA.7Spec databasemaxmybuild.com/motherboards/asrock-z890-livemixer-wifiRead 15 October 2026VRM stages: 80A SPS.10Press articleascii.jp/elem/000/004/230/4230242/2Read 15 October 202680A SPS.
VRM controller
Not available
CPU power connectors
8+8 pin1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) and a 24 pin ATX connector.10Press articleascii.jp/elem/000/004/230/4230242/2Read 15 October 2026The CPU 12V connector is 8-pin x 2.
Extra slot power connector
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026The section 1.2 connector list has no extra slot power connector.

Memory

Memory type
DDR51Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: Dual Channel DDR5 memory technology.
Memory slots
41Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 4 x DDR5 DIMM slots.
Max memory
256GB1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: max. capacity of system memory 256GB.
Max memory speed (overclocked)
9,466MT/s1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: DDR5 non-ECC, un-buffered memory up to 9466+(OC). The memory support list is on ASRock's site. LDLC's feed also lists DDR5 9466 as the top speed, while its summary text and a Ukrainian shop say 9066+.2Retailer pageldlc.com/en/product/PB00649733.htmlRead 15 October 2026Memory frequency list tops out at DDR5 9466 MHz, while the summary says up to 9066 MHz.5Spec databasepcspecchart.com/pc_parts/motherboard/254Read 15 October 2026Vendor copy of ASRock's text: non-ECC, un-buffered memory up to 9466MHz+(OC).8Spec databasehinta.fi/4950255/asrock-z890-livemixer-wifi/tiedotRead 15 October 2026Supported memory clock speed (max): 9466 MHz.
ECC memory
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: supports DDR5 non-ECC, un-buffered memory.
CUDIMM support
Yes5Spec databasepcspecchart.com/pc_parts/motherboard/254Read 15 October 2026The page's vendor copy of ASRock's specification says: Supports Clocked Unbuffered DIMM (CUDIMM), with no clock driver bypass limit. The older 72-page manual does not list CUDIMM, so ASRock's newer specification text is used.

Expansion slots

Expansion slots
Physical slotElectrical lanesPCIe generationConnected toCount
PCIe x16165CPU1
PCIe x1644Chipset2
Source1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: PCIE1 from the CPU is a PCIe 5.0 x16 slot that supports x16 mode (riser cards can split it into x8/x8 or x8/x4/x4). PCIE2 and PCIE3 on the chipset are PCIe 4.0 x16 slots that support x4 mode. The block diagram shows each with Gen4 x4. The Key E socket for the Wi-Fi module is not listed.
Full-length PCIe slots
3
Fastest PCIe x16 slot generation
5

Storage

M.2 storage slots
SlotPCIe generationPCIe lanesConnected toLongest driveTakes SATA drivesHeatsink
M2_154CPUM.2 2280NoYes
M2_244CPUM.2 2280NoNo
M2_344ChipsetM.2 2280NoYes
M2_444ChipsetM.2 2280YesYes
Source1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2 and the block diagram: M2_1 from the CPU, PCIe Gen5 x4, type 2280. M2_2 from the CPU, PCIe Gen4 x4, type 2280. M2_3 on the chipset, PCIe Gen4 x4, types 2230/2242/2260/2280. M2_4 on the chipset, PCIe Gen4 x4 and SATA3, type 2280. Sections 2.15 to 2.18: M2_1, M2_3 and M2_4 have a heatsink released with a push button. The M2_2 guide shows no heatsink. No lane sharing is stated in the manual.7Spec databasemaxmybuild.com/motherboards/asrock-z890-livemixer-wifiRead 15 October 2026M.2 heatsinks: slots 1, 3 and 4. This agrees with the manual.
M.2 slots
4
PCIe 5.0 M.2 slots
1
SATA ports
41Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 4 x SATA3 6.0 Gb/s connectors.

Rear ports

Rear ports
TypeVersionCountMax link rate (Gbps)Thunderbolt or USB4Power out (W)DP Alt Mode
USB-CUSB4240Thunderbolt 415Yes
USB-AUSB 3.2 Gen 2210Not availableNot availableNot available
USB-AUSB 3.2 Gen 1105Not availableNot availableNot available
HDMIHDMI 2.11Not availableNot availableNot availableNot available
Ethernet (RJ45)Not available12.5Not availableNot availableNot available
3.5 mm audioNot available2Not availableNot availableNot availableNot available
Optical S/PDIFNot available1Not availableNot availableNot availableNot available
Source1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2 and 1.4: 2 x Thunderbolt 4 Type-C (40 Gb/s for USB4 and for Thunderbolt, USB PD 3.0 up to 5V@3A (15W)), 2 x USB 3.2 Gen2 Type-A, 10 x USB 3.2 Gen1, 1 x HDMI, 1 x RJ-45 (2.5G LAN), 1 x line out jack, 1 x microphone input jack, 1 x optical S/PDIF out, 2 antenna ports and 1 BIOS Flashback button. The manual says only the CPU's embedded graphics can drive a display through the Thunderbolt ports. HDMI is 2.1 TMDS/FRL 8G compatible, up to 4K 120Hz. No rear USB 2.0 ports are listed.
Rear USB ports
14
Rear USB-C ports
2
Fastest rear USB port
40Gbps
Thunderbolt
Yes

Internal connectors

Internal USB headers
HeaderMax data rate (Gbps)HeadersFront ports served
USB-C header2011
USB 3 header (19-pin)524
USB 2.0 header (9-pin)0.4824
Source1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 1 front panel Type-C USB 3.2 Gen2x2 header (20 Gb/s), 2 USB 3.2 Gen1 headers (4 ports) and 2 USB 2.0 headers (4 ports). No power output is stated for the Type-C header.
Front USB-C header speed
20Gbps
Fan headers
81Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 2 CPU fan connectors, 5 chassis fan connectors and 1 AIO pump fan connector make 8, as the block diagram says FAN x8.
ARGB headers
31Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 3 x Addressable LED Headers (ADDR_LED1 to 3).
RGB headers
11Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 1 x RGB LED Header (RGB_LED1, 12V).

Networking

Ethernet controllers
Realtek RTL81251Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 2.5 Gigabit LAN, Dragon RTL8125BG. Stored as the chip family RTL8125.
Ethernet ports
1
Ethernet speed
2.5Gbps
Wi-Fi included
Yes1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2 and 1.6: an 802.11be Wi-Fi 7 + BT module comes with the board, and 2 antennas are in the box.
Wi-Fi standard
Wi-Fi 71Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 802.11be 2x2 Wi-Fi 7 module, 802.11a/b/g/n/ac/ax/axe/be.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 2.4GHz/5GHz/6GHz frequency band. 6GHz depends on each country's regulations.
Max Wi-Fi channel width
320MHz1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: supports 320MHz channel bandwidth with the 6GHz frequency band.
Wi-Fi module
Intel BE2001Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.5 block diagram: M.2_WIFI1 (BE200), on CNVi. The text of section 1.6 and 1.2 names no chip.
Bluetooth
5.41Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Sections 1.2 and 1.6: Bluetooth 5.4.

Audio

Audio codec
Realtek ALC12201Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec). The block diagram also says ALC1220 (2+1 jack audio).
DAC chip
Not available

Features

BIOS flashback
Yes1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 2.13: the BIOS Flashback Button (BIOS_FB1) is on the rear panel.
Clear CMOS button (rear)
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 2.13 says the board has one smart switch, the BIOS Flashback Button. Clear CMOS is a jumper (CLRMOS1).5Spec databasepcspecchart.com/pc_parts/motherboard/254Read 15 October 2026Buttons row: BIOS flashback yes, Clear CMOS no.
POST code display
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 2.14: the Post Status Checker is four single LEDs for CPU, DRAM, VGA and storage. There is no code display.
Power button on the board
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 2.13: the only smart switch is the BIOS Flashback Button. No power or start button is listed.5Spec databasepcspecchart.com/pc_parts/motherboard/254Read 15 October 2026Buttons row: smart button no, onboard start/reset no.
Dual BIOS
No1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.2 BIOS Feature: AMI UEFI Legal BIOS. The block diagram shows one 256Mb flash ROM. No second BIOS is listed.
Pre-installed I/O shield
Yes6Retailer pagemultitronic.fi/en/products/4408928Read 15 October 2026Copy of ASRock's feature text: Flexible Integrated I/O Shield. It says the shield is pre-mounted and adjustable when installing. A loose shield is not in the box list.
Tool-free features
Tool-free M.2 latch, Tool-free M.2 heatsink1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Sections 2.15 to 2.18: M.2 SSDs lock with a nut lock turned by hand (screwless M.2 SSD design), and the heatsink on M2_1, M2_3 and M2_4 comes off with a push button. M2_3 needs a screwdriver only to move the standoff for short drives. The antennas screw on, so no push-on antenna option is set. No PCIe slot release is listed.4Retailer pageparadigit.ie/asrock-z890-livemixer-wifi/21654355/productRead 15 October 2026Copy of ASRock's text: M.2 heatsink toolless design, an M.2 heatsink quick release mechanism, and an M.2 SSD toolless design.10Press articleascii.jp/elem/000/004/230/4230242/2Read 15 October 2026The M.2 heatsink comes off by sliding a round knob, with no screws and no tools, and the M.2 SSD is fixed without screws.

Measured

We could not find any of these 3 fields. Show them
VRM temperature under CPU load
Not available
Power draw idle
Not available
Power draw CPU stress
Not available

In the box

In the box
2 x SATA data cables, 2 x ASRock WiFi 2.4/5/6 GHz antennas, 1 x Thermistor cable1Owner's manualdownload.asrock.com/Manual/Z890%20LiveMixer%20WiFi.pdfRead 15 October 2026Section 1.1: ASRock Z890 LiveMixer WiFi motherboard, 2 x SATA data cables, 2 x ASRock WiFi 2.4/5/6 GHz antennas and 1 x thermistor cable. The manual marks the cables, antennas and thermistor cable as optional.

Warranty

Manufacturer warranty (source market)
3years3Retailer pageevetech.co.za/asrock-z890-livemixer-intel-motherboard/best-deal/23134Read 15 October 20263 Years Local Warranty on this South African retailer's page. ASRock's manual gives no term, and LDLC lists a 2-year seller warranty for France.
